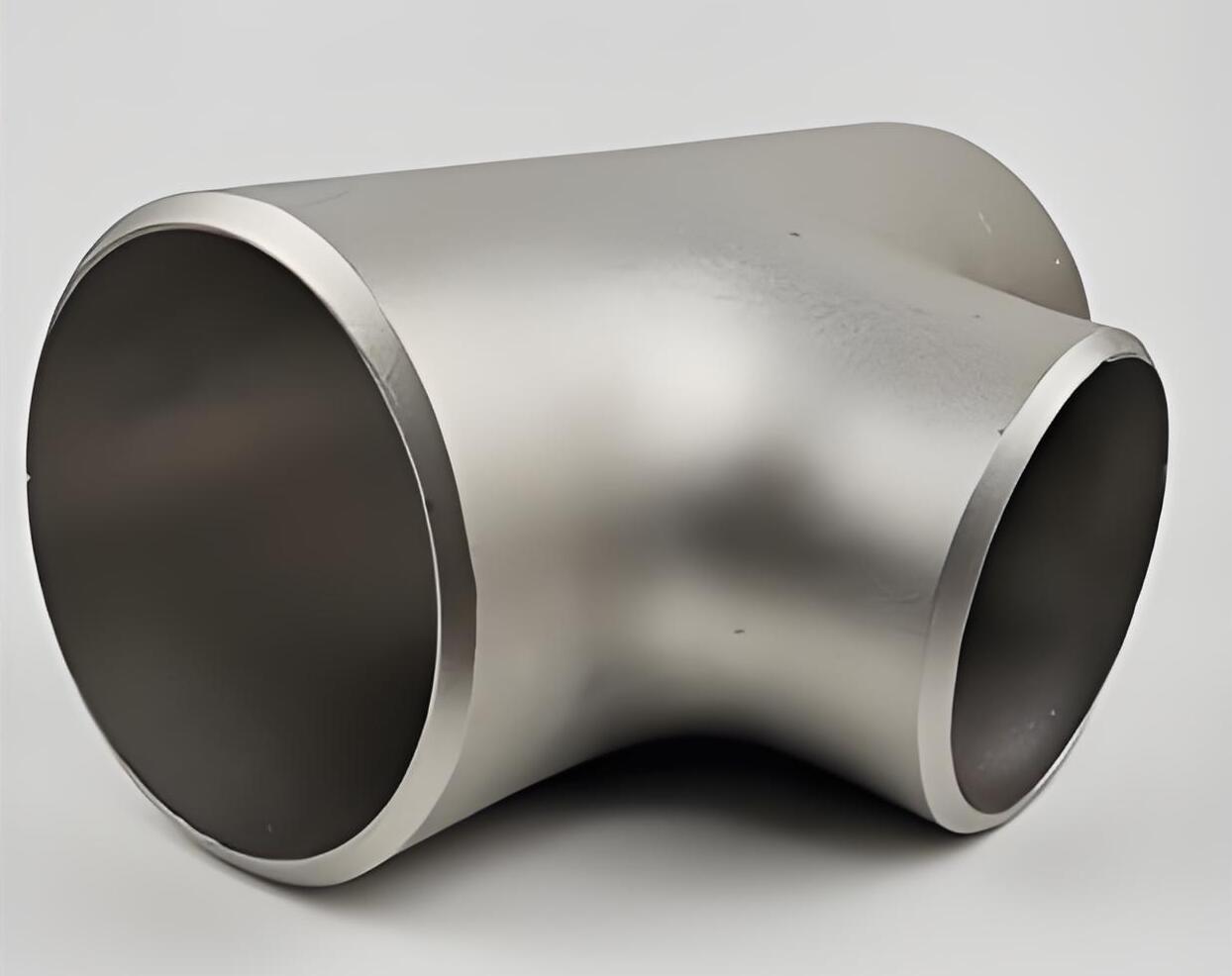

Japanese standard tees are core pressure pipe fittings dedicated to diversion and confluence in Japanese-style industrial piping systems, specifically designed for all industrial equipment, municipal supporting facilities, energy and chemic
Inquiry
Japanese standard tees are produced according to JIS B2313 carbon steel pipe fittings and JIS B2309 stainless steel butt-welding pipe fittings standards, with specifications covering 15A–1000A, and wall thicknesses implementing SCH10, SCH20, SCH40, SCH80, STD, XS, XXS. The pressure rating is the Japanese K class: 5K, 10K, 16K, 20K, 30K, 40K, which is not interchangeable with the PN and Class systems. Materials include carbon steel SS400, STPG370, STPG410, stainless steel SUS304, SUS316L, SUS321, alloy steel STPA24, etc. The manufacturing processes are divided into seamless hot-pressed forming and large-diameter rolled and welded forming, with JIS standard welding bevels on the ends. Before leaving the factory, they undergo hydrostatic testing, UT non-destructive testing, and spectral re-inspection, and Japanese or English material certificates can be issued. When selecting models, it is essential to distinguish between the A series (large outer diameter) and the B series (small outer diameter), and they cannot be directly interchanged or connected with American standard or Chinese national standard pipe fittings.
| Product Name | JIS Tee |
| Product Category | Tees & Crosses |
| The full set of parameters for Japanese standard tees strictly benchmarks against the official JIS Japanese industrial standards, and the parameter system is independent, precise, and compliant, completely different from European and American standards, and suitable for Japanese-style project audit acceptance. Specification parameters | Japanese-style diameters 15A–1000A (1/2”–40”), supporting both the A series and B series Japanese standard outer diameter systems, with wall thicknesses covering the full range of Japanese-style wall thickness specifications SCH10–SCH80, STD, XS. Pressure parameters: exclusive Japanese-style pressure ratings 5K, 10K, 16K, 20K, 30K, 40K, suitable for working conditions from low-pressure municipal to high-pressure industrial equipment. Temperature parameters: carbon steel is suitable for -20℃–425℃, stainless steel is suitable for -60℃–600℃, meeting the needs of Japanese-style high-temperature processes and normal-temperature clean pipelines. Material parameters: carbon steel SS400, STPG370, STPG410, stainless steel SUS304, SUS316L, SUS321, all pure Japanese standard grades. Wor |
| Customization | The factory possesses full-dimensional Japanese-style precision customization capabilities, having deeply cultivated JIS standard pipe fittings for many years, being proficient in Japanese-style A/B dual-series dimensions, the K-grade pressure system, and the precision process requirements of Japanese enterprises, and can undertake various Japanese-style non-standard, high-pressure, special-shaped, and high-end customized orders. For dimension customization, it can produce 15A–1000A arbitrary non-standard diameters, special thickened SCH wall thicknesses, eccentric reducers, and 30°/60° special-shaped oblique tees on demand, strictly following JIS tolerance standards, with assembly precision that can meet the seamless docking requirements of Japanese equipment. For pressure customization, it supports full-grade high-pressure non-standard customization from 5K to 40K, suitable for Japanese high-pressure boilers, heat exchange equipment, and ship power pipelines. Material customization covers SS400, STPG370, STPG410 carbon steel, SUS3 |
| MOQ | To adapt to the differentiated needs of Japanese-style foreign trade small-batch precision supporting, equipment sample orders, and engineering batch centralized procurement, Japanese standard tees have a refined flexible tiered MOQ mechanism, highly fitting the small-batch, multi-batch, high-precision procurement characteristics of Japanese enterprises. Conventional standard in-stock specifications include 15A–600A mainstream diameters, 10K/20K conventional pressures, SS400 carbon steel, S |
| Lead Time | Relying on Japanese-style dedicated production lines and a precision in-stock warehousing system, Japanese standard tees provide Japanese-style high-standard, fast-response, zero-delay tiered delivery services, matching the strict schedule management standards of Japanese enterprises. For 15A–600A conventional Japanese standard in-stock tees, 5K/10K/16K/20K mainstream pressure grades, and conventional carbon steel and stainless steel specifications, inventory is sufficient, and standard orders within 3 working days |
| Packaging | Japanese standard tees use Japanese-style high-end refined foreign trade protective packaging, fitting the strict appearance requirements of Japanese enterprises, specifically adapting to China-Japan sea freight, Southeast Asia long-distance transportation, and frequent transfer conditions, eliminating scratches, rust, deformation, and paint loss, ensuring premium appearance upon arrival. For small 15A–100A precision Japanese standard tee small pieces, the inner layer uses imported anti-rust oil paper and waterproof PE film double-layer sealed wrapping to isolate sea freight moisture and salt fog, and the outer layer uses thickened hard cardboard boxes for independent sub-packaging, with high-density shockproof foam filled inside the boxes, single-piece isolation, eliminating friction scratches, meeting the high-precision appearance acceptance standards of Japanese enterprises. For medium 125A–300A specifications, waterproof wrapping + solid wood fumigation pallet standardized packing is used, with layered placement, strap reinforcement, and dust-proof film covering, neat and orderly, convenient for overseas warehouse storage |
| Reference Price | Inquiry |
Japanese standard tees are produced according to JIS standards. When selecting models, it is necessary to confirm the A Series or B Series outer diameter system, K-grade pressure rating, material grade, and wall thickness specifications. Regular specifications are kept in stock; please contact us to confirm the delivery cycle for standard orders. Packaging is carried out according to Japanese-style foreign trade protection standards: 15A–100A uses anti-rust oil paper plus PE film sealing, then packed into thickened hard cardboard boxes, with shock-absorbing foam filled inside the boxes; 125A–300A uses waterproof wrapping plus solid wood fumigation pallets; 350A and above uses fumigation-free solid wood closed wooden crates, with internal slot positioning and corner protection. The outer packaging is affixed with Chinese-Japanese bilingual labels, marking the JIS standard, A/B Series, K-grade pressure, material, heat number, and batch number.
Pre-sales provides JIS standard selection consultation, A/B dimension verification, K-grade pressure working condition matching, and Japanese-style drawing review and optimization. During sales, production progress and quality inspection data are synchronized, supporting in-factory supervision, batch precision sampling inspection, and factory full inspection. After-sales provides an 18-month warranty. During the warranty period, for non-human-caused quality, precision, or process defects, free returns and exchanges are provided, and cross-border logistics loss costs are borne. Lifetime free Japanese-style pipeline technical support is provided, with online Q&A for JIS welding processes, precision assembly, and equipment pipeline adaptation issues. Long-term cooperating Japanese-funded enterprises and Japanese-style general contractors enjoy exclusive ledgers, priority production scheduling, and an emergency after-sales green channel.
The products are strictly produced according to JIS B2313 and JIS B2309, adopting Japanese-style A/B Series dimensions and K-grade pressure ratings. Tolerance precision and material performance benchmark against Japanese original factory standards, and they can smoothly pass Japanese enterprise supervision acceptance and customs clearance.
The Japanese-style K-grade system (5K, 10K, 16K, 20K, 30K, 40K) is not interchangeable with European and American PN and Class standards. Our entire series is produced according to Japanese-style pressure parameters. When selecting models, please provide the specific K-grade requirements, and we will assist in confirming the corresponding specifications.
We support trial orders for small quantities from stock. Our regular standard stock specifications cover the mainstream sizes from 15A to 600A, conventional pressures of 10K/20K, SS400 carbon steel, and conventional stainless steel grades. Please contact us to confirm the specific MOQ and trial order quantity.
We can produce non-standard sizes from 15A to 1000A as needed, special thickened SCH wall thicknesses, eccentric reducers, and 30°/60° special-shaped lateral tees, and we support laser Japanese marking, exclusive private labeling, and custom packaging. The sampling lead time is 3–5 days. Please provide drawings or samples so that we can evaluate them.
Before leaving the factory, the products undergo hydrostatic testing, UT non-destructive testing, and spectral re-inspection, and we can issue material certificates in Japanese or English. Please contact us to confirm the specific inspection items and certificate document requirements.
Regular specifications are kept in stock, and please contact us to confirm the delivery lead time for standard orders. Packaging is carried out according to Japanese-style export protection standards: small parts are sealed with anti-rust oil paper plus PE film, medium parts use solid wood fumigated pallets, large-diameter parts use fumigation-free wooden crates for reinforcement, and the outer boxes are labeled in both Chinese and Japanese.
