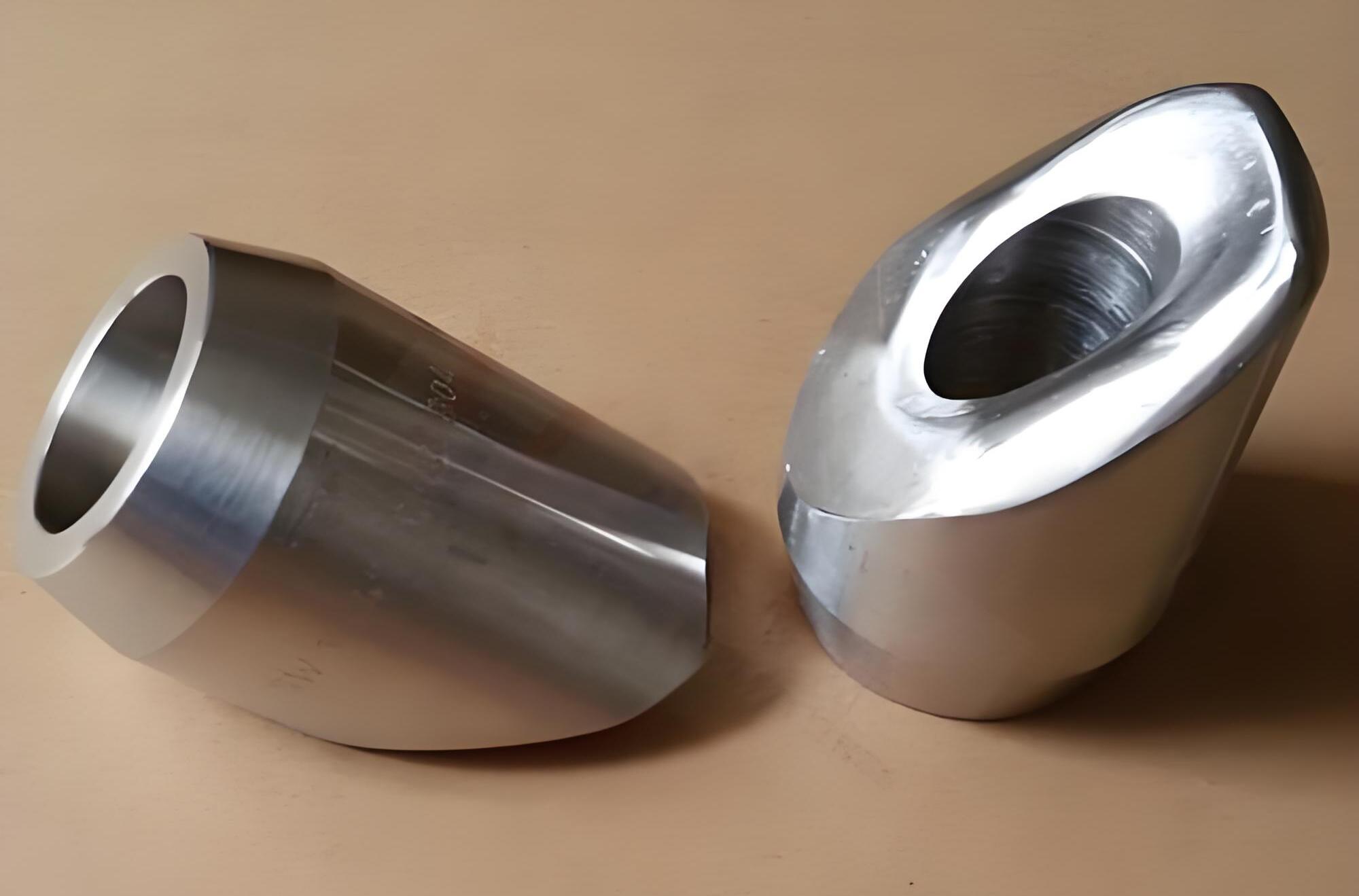

45° mitered branch outlet
The 45° mitered branch outlet is a specialized flow-dividing pipe fitting for 45° oblique non-destructive opening on high-pressure pipelines, with integral equal-area reinforcement. It is primarily used to obliquely lead out process bypasse
Inquiry
- The core advantages of the 45° mitered branch outlet are integral forging with built-in reinforcement, a smooth 45° diagonal flow channel, low turbulence and low pressure drop, vibration reduction and anti-erosion, and extremely strong adap
- Its performance comprehensively surpasses traditional diagonal tees and on-site diagonal drilling processes. Integrally hot-forged and formed with no splicing welds, dense and uniform material, and no sand holes or gas pores.
- The overall structural strength, pressure resistance, high-temperature resistance, and fatigue resistance far exceed those of welded pipe fittings.
- It is suitable for long-term high-pressure alternating load working conditions. The precise saddle arc surface fits perfectly with the main pipe.
- Uniform stress distribution after welding
Detailed Introduction
The 45° lateral branch outlet we supply is an MSS SP-97 standard integrally forged saddle-type fitting, with the branch drawn out from the main pipe at a 45° lateral angle, the bottom arc surface fitting and welding to the outer wall of the main pipe, and with self-contained equal-area reinforcement. The branch end can be made with butt welding, socket welding, or threaded connection, used to replace 45° lateral tees, on-site lateral drilling plus reinforcing pads, and other such methods. The applicable standards cover MSS SP-97, ASME B16.9, ASME B16.11, GB/T19326; pressure ratings include 3000LB and 6000LB; main pipe NPS2-NPS48, branch NPS1/8-NPS4; materials include carbon steel A105, LF2 low-temperature steel, 304/316L stainless steel, F11/F22 alloy steel, duplex steel, and nickel-based alloys. Commonly used for lateral bypasses of high-pressure pipelines, buffer branches, inclined instrument sampling points, and pipe racks where space is limited and lateral offset is required.
- Integrally die-forged and formed in one piece, with no spliced welds, dense and uniform material, suitable for long-term high-pressure alternating load working conditions.
- The 45° lateral flow passage transitions smoothly; compared with 90° branch outlets, it can reduce medium diversion vortices, pressure drop, and pipeline vibration.
- The bottom saddle arc surface fits and welds to the outer wall of the main pipe, with self-contained equal-area reinforcement, requiring no additional reinforcing plate material.
- The branch end provides three connection forms: butt welding, socket welding, and threaded, which can be selected according to project requirements.
- Complies with MSS SP-97, ASME B16.9, ASME B16.11, GB/T19326; pressure ratings cover 3000LB and 6000LB.
- Supports customization of non-standard reducing sizes, extended-neck insulation type, thickened high-pressure type, and thread forms such as NPT and BSPT, and can be custom-made in reverse according to drawings or dismantled parts.
| Product Name | 45° Lateral Outlet |
| Category | Contact us to confirm |
| Standard | MSS SP‑97, ASME B16.9, ASME B16.11, GB/T19326; pressure rating: 3000LB, 6000LB; applicable wall thickness: SCH80, SCH160, XXS thickened high-pressure wall thickness; structural angle: standard 45° lateral branch; diameter range: main pipe NPS2‑NPS48, branch NPS1/8‑NPS4; structural type: equal-diameter lateral branch outlet, reducing lateral branch outlet, extended-neck insulation type, high-pressure thickened type; connection form: BW butt welding type, SW socket welding type, T threaded type (NPT/BSPT); forming process: integral die forging in one piece, precision CNC machining; flaw detection standard: 100% PT penetrant, |
| Customization | This factory possesses full-dimensional heavy-industry high-end non-standard customization capabilities for 45° lateral branch outlets, and can comprehensively meet the supporting needs of high-pressure lateral pipeline networks at home and abroad, special flow-regime working conditions, old pipeline renovation, and overseas non-standard project support. It can customize any non-standard reducing ratio, oversized main pipe with small lateral branch, and ultra-high-pressure thickened reinforced 45° lateral branch outlet, adapting to ultra-high-pressure, strong scouring, and high-vibration harsh process working conditions. It supports customization of all connection methods, including switching among butt welding, socket welding, and threaded structures, and can customize non-standard thread profiles such as NPT, BSPT, and RC as needed, adapting to the connection of imported valves and instruments from various countries. It supports structural customization, including extended-neck insulation-specific models, non-standard curved surface arcs, thickened body reinforcement structures, and fine-tuned lateral angle precision, adapting to on-site insulation construction and special |
| MOQ | Our factory's 45° mitered branch outlet adopts a flexible low-threshold minimum order mechanism for foreign trade, suitable for large and small batch heavy industry procurement both domestically and overseas, with flexible ordering and no mandatory threshold. For conventional carbon steel A105 3000LB/6000LB butt weld, socket weld, and threaded mainstream specifications, the MOQ is as low as 1 piece, which can fully satisfy engineering test samples, inclined bypass technical modifications, vibration pipeline optimization, and inclined instrument point locations |
| Lead Time | Our factory maintains massive ready stock of 45° lateral branch outlets in national standard and American standard conventional pressure ratings and conventional diameters, with ample inventory of mainstream styles in carbon steel and stainless steel, including butt-welding, socket-welding, and threaded types. In-stock orders are shipped within 24 hours at express speed, quickly responding to overseas heavy-industry urgent orders, diagonal pipeline network emergency repairs, process optimization rush work, and procurement needs with tight schedules. For conventional standard batch orders, we have our own forging, precision |
| Packaging | This factory's 45° mitered branch outlet, as a precision high-pressure forged diagonal pipe fitting, adopts export packaging with refined protection at the level of foreign trade heavy industry, focusing on protecting the saddle fitting curved surface, the 45° diagonal flow channel, the welding bevel, the thread profile, and the machined end face, eliminating issues such as transportation impacts, scratches, rust, deformation, blocked holes, and precision loss. All products undergo professional anti-rust treatment before leaving the factory; carbon steel parts are sprayed with long-acting industrial anti-rust oil, sealing the metal surface to isolate oxidation; stainless steel parts undergo pickling and passivation and deoxidation treatment, withstanding the salt spray and humid environment of ocean shipping. Threaded ports are fitted with dedicated plastic thread protectors, socket holes and flow channels are fitted with dust plugs, and the curved fitting surfaces are affixed with shock-absorbing protective rubber pads, comprehensively protecting the precision working surfaces. Each individual piece is fully wrapped in thickened bubble film and pearl cotton. |
| Reference Price | Inquiry |
Applications
- Locations in petrochemical high-pressure process pipelines where bypass or buffer branches need to be led out at an angle.
- In the steam pipe network of a thermal power plant, an inclined branch point is needed for buffering pressure relief and reducing vibration.
- Inclined sampling, blowdown, or instrument monitoring points arranged in coal chemical reaction equipment.
- In high-pressure natural gas pipelines, pipe sections that require vibration damping and flow distribution to avoid excessive vibration in vertical branches.
- For pipelines such as reciprocating pump and compressor outlets where vibration is relatively large and medium scouring is strong, oblique diversion is required to reduce impact.
Overview
The 45° lateral branch outlet is an integrally forged oblique branch fitting, with the branch drawn from the main pipe at a 45° angle, the bottom saddle arc surface welded and fixed to the outer wall of the main pipe, and self-contained equal-area reinforcement. It is mainly used in high-pressure pipelines requiring oblique diversion, buffering, vibration reduction, or inclined instrument points, replacing traditional methods such as 45° lateral tees and on-site oblique hole opening plus reinforcement pads. The branch end can be butt welded, socket welded, or threaded, and it complies with MSS SP-97, ASME B16.9, ASME B16.11, and GB/T19326 standards, with pressure ratings covering 3000LB and 6000LB, main pipe NPS2-NPS48, and branch NPS1/8-NPS4. Material options include carbon steel, low-temperature steel, stainless steel, alloy steel, duplex steel, and nickel-based alloy, suitable for high-pressure pipelines in petrochemical, thermal power, coal chemical, oil and gas, and other industries.
Key Features
Integrally die forged, with no splicing welds, dense and uniform material, suitable for long-term bearing of high-pressure alternating loads. The 45° oblique flow passage transitions smoothly, and compared with a 90° branch outlet it can reduce medium turning vortices, pressure drop, and pipeline vibration. The bottom saddle arc surface fits and welds to the outer wall of the main pipe, with self-contained equal-area reinforcement, requiring no additional reinforcement plate, making construction more space-saving. The branch end provides three connection forms: butt welding, socket welding, and threading, which can be selected according to project requirements. We support customization of non-standard reducing, extended-neck insulation type, thickened high-pressure type, and thread forms such as NPT and BSPT, and can also reverse-customize according to drawings or dismantled parts.
Applications
The 45° lateral branch outlet is suitable for occasions in high-pressure pipelines where an oblique branch needs to be drawn out, such as oblique bypasses of petrochemical high-pressure process pipelines, buffer pressure-relief branches of thermal power plant steam pipe networks, inclined sampling and blowdown points of coal chemical plant equipment, vibration-reducing diversion branches of natural gas high-pressure pipelines, and pipelines such as reciprocating pump and compressor outlets where vibration is relatively large and medium scouring is strong. It is also suitable for pipe racks where pipeline space is limited, oblique avoidance of equipment is required, vertical branch vibration is excessive, or medium scouring is severe. For vertical large-diameter main pipe diversion scenarios, it is recommended to contact us to confirm the selection according to specific working conditions.
Specifications
The implemented standards are MSS SP-97, ASME B16.9, ASME B16.11, and GB/T19326. Pressure ratings are 3000LB and 6000LB. Main pipe diameters are NPS2-NPS48, and branch diameters are NPS1/8-NPS4. Connection forms include butt welding, socket welding, and threading (NPT/BSPT). Materials cover carbon steel A105, LF2 low-temperature steel, 304/316L stainless steel, F11/F22 alloy steel, duplex steel, and nickel-based alloy. The structural angle is a standard 45° oblique branch; for non-standard angles, please contact us to confirm. Compatible wall thicknesses include SCH80, SCH160, and XXS thickened high-pressure wall thickness; for other wall thicknesses, please contact us to confirm. The forming process is integral die forging in one piece and precision CNC machining. Customization options include non-standard reducing, extended-neck insulation type, thickened high-pressure type, non-standard thread forms, and surface treatment, etc.; for details, please contact us to confirm.
Purchase & Delivery
For conventional carbon steel A105 3000LB/6000LB butt-welded, socket-welded, and threaded mainstream specifications, MOQ is as low as 1 piece, suitable for engineering samples, oblique bypass technical modifications, and vibration pipeline optimization. We routinely keep in stock 45° lateral branch outlets in national standard and American standard conventional pressures and conventional diameters; carbon steel and stainless steel butt-welded, socket-welded, and threaded mainstream styles are sufficiently stocked, and in-stock orders ship within 24 hours. For conventional standard batch order lead times, please contact us to confirm. Packaging uses foreign-trade heavy-industry-grade protection: carbon steel parts are sprayed with anti-rust oil, stainless steel parts are pickled and passivated, threaded ports are fitted with plastic thread protectors, socket holes and flow passages are fitted with dust plugs, arc fitting surfaces are covered with anti-vibration rubber pads, individual pieces are wrapped in bubble film and pearl cotton, small and medium specifications are packed in reinforced export cartons, and large-diameter heavy-duty models use fumigated solid wood pallets, fastened with steel straps and covered with waterproof film. We support neutral unbranded packaging, LOGO private labeling, and customized project-specific shipping marks.
Service & Support
We provide 45° lateral branch outlet selection guidance, welding and installation process recommendations, and oblique flow state optimization solutions. Before leaving the factory, products undergo fivefold quality inspection: appearance screening, precision inspection of arc surface accuracy, 45° oblique angle calibration, groove/thread verification, and non-destructive testing. After customers receive the goods, if problems occur such as original factory quality defects, wrong specifications shipped, inaccurate oblique angle, inconsistent dimensions, transport damage, poor welding fit, pressure-bearing leakage, or abnormal flow passage, we bear the corresponding responsibility and support free replacement shipment, return or exchange, or re-customization. We can provide parameter drawings and process documents, and support long-term customer inventory custody, partial shipments, replenishment on demand, and price-locked stocking. For specific after-sales terms, please contact us to confirm.
FAQs
What is the difference between a 45° lateral branch outlet and a 90° branch outlet?
The main difference lies in the branch outlet angle. The branch of a 45° mitered branch outlet is led out from the main pipe at a 45° oblique angle, and the flow passage transition is smoother. Compared with a 90° branch outlet, it can reduce medium turning vortices, pressure drop, and pipeline vibration, making it suitable for pipelines that require oblique diversion, buffering, or avoiding equipment. The 90° branch outlet is more suitable for vertical branch scenarios. For specific selection, please contact us to confirm.
What working conditions are suitable for selecting a 45° mitered branch outlet?
For high-pressure process pipelines where the pipeline needs oblique avoidance layout, bypass buffering and pressure relief, relatively large pipeline vibration, severe medium erosion, or where flow pattern optimization and noise reduction are required, a 45° mitered branch outlet can be given priority. It is commonly used in oblique bypasses, buffer branches, and inclined instrument points in industries such as petrochemicals, thermal power, coal chemical, and oil and gas.
How to choose among the three connection types: butt welding, socket welding, and threaded?
For permanent oblique main branch connections, butt welding is generally selected; for fixed inclined instrument points, socket welding can be selected; for inclined sampling, drainage, and other points requiring quick installation and quick disassembly, threaded type can be selected. The specific selection needs to be combined with pipeline material, pressure rating, diameter, and construction conditions. You are welcome to contact us to confirm.
Can a 45° mitered branch outlet replace a 45° oblique tee?
In cases where a large pipe is reduced to a small oblique branch and scattered oblique points are involved, a 45° mitered branch outlet can replace a 45° oblique tee, with better flow pattern and more space saving. Whether it is suitable for replacement needs to be confirmed according to the main pipe and branch pipe diameters, pressure rating, and on-site space. Please contact us to provide specific parameters.
What information is required to customize non-standard angles or special materials?
Please provide the main pipe and branch pipe diameters, pressure rating, connection type, material requirements, angle requirements, surface treatment requirements, and quantity. If there are drawings or teardown parts, you can also provide them to us for reverse customization. We will assist in confirming the configuration and quotation based on this information.
