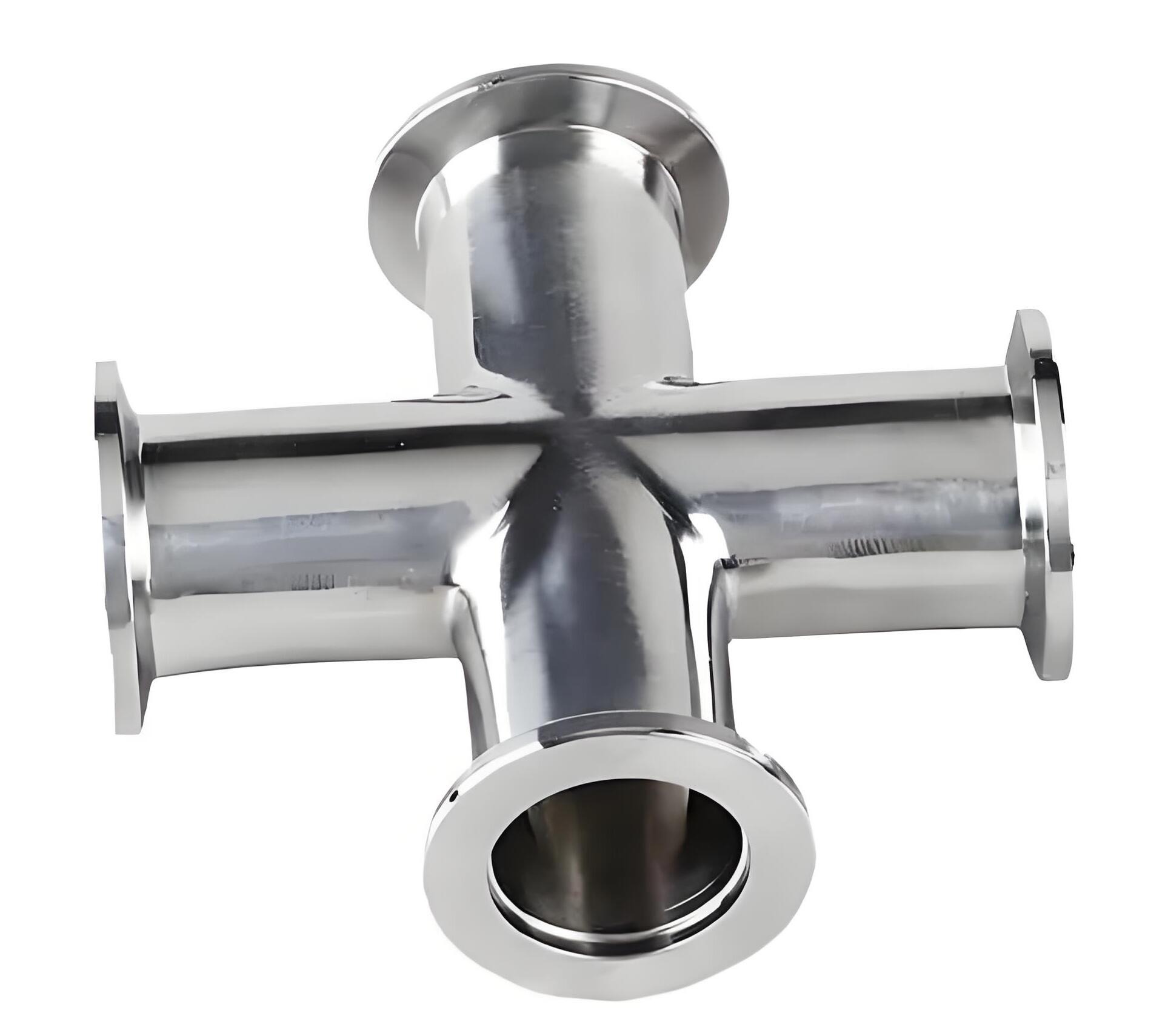

Custom four-way fittings serve as customized core components for four-way diversion, confluence, direction change, and multi-branch distribution in industrial piping systems, primarily solving the challenges of irregular pipeline layouts, e
Inquiry
When the on-site pipeline dimensions do not match national standards, American standards, petrochemical or electric power standards, or when imported equipment interfaces are irregular, old pipeline network dimensions are non-standard, or installation space is limited, standard crosses often cannot be installed directly. Based on CAD drawings, PDF drawings, on-site samples, or measured dimensions provided by customers, we customize the structure, diameter, angle, wall thickness, and pipe length on a one-to-one basis. Diameter coverage ranges from DN6 to DN4000, supporting non-90° inclination, eccentric offset, multi-stage composite reducing, and lengthened or shortened straight pipe sections. Material coverage includes carbon steel, stainless steel, alloy steel, duplex steel, low-temperature steel, nickel-based alloy, copper-nickel alloy, and high-manganese wear-resistant steel. Production processes include integral forging, seamless hot pushing, CNC plate welding, precision machining, and special-shaped casting, matched according to structural complexity and working conditions. The minimum order quantity is 1 piece, suitable for engineering replacement parts, single-point replacement, and single-piece equipment matching.
| Product Name | Custom Four-Way |
| Product Category | Four-Way |
| Customization | Our factory possesses one-stop deep customization capabilities for non-standard four-way fittings across all sizes, all structures, all angles, all materials, all processes, and all working conditions, and is the industry's production base for irregular pipe fittings with the widest customizable range and the highest precision. We can customize any non-standard diameter, any unconventional reducing ratio, any non-90° angle, any long or short straight pipe section, and any eccentric or offset structure, completely breaking through the limitations of standard pipe fittings. Processes cover hot-pushed irregular forming, CNC rolled-plate irregular welding, integral forged irregular parts, precision-cast irregular parts, and integrated machining forming; both large and small irregular parts and simple or complex structures can be achieved. Materials cover the full range of carbon steel, stainless steel, alloy steel, duplex steel, super duplex steel, low-temperature steel, nickel-based alloys, copper-nickel alloys, and high-manganese wear-resistant steel. We can customize special flange hole spacing, |
| MOQ | Non-standard four-way fittings adopt a fully flexible customization minimum-order model, with no regular inventory, no batch threshold, and no mandatory minimum order quantity, fully adapting to engineering repair parts, single-point replacement for modifications, single-piece equipment matching, drawing samples, and irregular small-node customization needs. The industry's only one that supports customization and production with just 1 piece, completely solving the pain points of irregular pipe fitting manufacturers' high minimum order quantities, refusal of small orders, difficulty of repair parts, and expensive customization |
| Lead Time | Non-standard four-way fittings establish a four-tier delivery system of single-piece urgent orders, small-batch customization, complex irregular parts, and high-end special non-standard parts, precisely matching the construction period according to structural difficulty, material grade, and process complexity, and stably delivering various irregular customization projects. Simple conventional irregular four-way fittings, ordinary carbon steel or stainless steel simple size changes, extended pipes, and conventional reducing styles have simple structures and processes, with a production cycle of 2–4 |
| Packaging | Non-standard four-way fittings are irregular customized pipe fittings, with irregular shapes, non-uniform ports, unique structures, and no universal packaging specifications. Before leaving the factory, they implement a one-to-one exclusive protective packaging standard for irregular parts, preventing transportation bumps, deformation, port damage, and paint wear. All irregular four-way fittings are deburred, beveled and refined, port-sealed, and surface rust-proofed before leaving the factory to ensure a clean appearance, no impurities, and no defects. All pipe openings, threads, flange sealing surfaces, and irregular non-standard ports are fully equipped with customized protective caps, anti-collision plugs, and thickened protective film to avoid extrusion deformation and port collision damage during transportation of irregular structures. Irregular non-standard products are placed separately in isolation, wrapped in multiple layers of bubble film per piece, and hard corner protection is added at key stress positions to prevent wear from vibration and twisting deformation. Large-size, heavy-duty non-standard |
| Reference Price | Inquiry |
| Brand | Guojie |
Non-standard crosses are customized according to drawings and on-site dimensions, with no fixed inventory. You can send us CAD drawings, PDF drawings, on-site sample photos, or measured dimensions, and we will provide free drawing optimization, structural verification, and dimension correction, and arrange production only after confirmation. The minimum order quantity is 1 piece, suitable for engineering supplementary parts, single-point replacement, and single-piece equipment matching. The production cycle for simple conventional irregular crosses, ordinary carbon steel or stainless steel size modifications, extended pipes, and conventional reducing styles is 2–4 cycles; for orders with complex irregular structures, special materials, or high-precision requirements, please contact us to confirm the delivery time. Packaging provides one-on-one protection according to the irregular structure, and before leaving the factory, burrs are removed, bevels are finely finished, ports are sealed, and surface anti-rust treatment is applied.
We provide exclusive after-sales protection for non-standard cross customized products. Before production, drawing review, dimension re-checking, and process confirmation are carried out. Before finished products leave the factory, full-dimension re-inspection, pressure test inspection, and fine appearance inspection are carried out. Products enjoy a 12-month official warranty. During the warranty period, for non-human installation errors or overpressure use, if there are production dimension deviations, structural defects, leakage or cracking, or process quality problems, we will remake for free, reship for free, and bear all losses. Before sales, we provide free drawing optimization, structural mechanical verification, non-standard working condition selection, and installation plan guidance; during sales, we follow up on customized production, dimension verification, and process control; after sales, we provide special installation guidance for irregular pipe fittings, on-site connection assistance, pressure test commissioning, and troubleshooting. We support compliant returns and exchanges for uninstalled products with no quality disputes, respond quickly within 2 hours, and provide lifelong free technical consultation for non-standard pipe fitting customization.
Any size, angle, reducing ratio, pipe length, wall thickness, structure, port form, material, pressure rating, and anti-corrosion process can be customized, without being restricted by national standards or American standards. All on-site irregular connections, special equipment interfaces, and non-standard problems of old pipe networks can be solved with one-time customization.
Non-standard crosses support ordering from 1 piece, with no minimum order threshold, specially customized for single-point engineering renovation, single-piece equipment matching, on-site supplementary parts, and small irregular nodes.
The production lead time for simple conventional irregular four-way fittings, ordinary carbon steel or stainless steel size modifications, extended pipes, and conventional reducing styles is 2–4 cycles. For orders with complex irregular structures, special materials, or high-precision requirements, please contact us to confirm the delivery date.
You can send us CAD drawings, PDF drawings, on-site sample photos, or measured dimensions. We provide free drawing optimization, structural verification, and dimension correction, and arrange production after confirmation.
Products uniformly enjoy a 12-month official warranty service. During the warranty period, for non-human installation errors or overpressure use, any occurrence of production dimension deviation, structural defects, leakage or cracking, or process quality problems will be redone free of charge, reshipped free of charge, and we will bear all losses.
