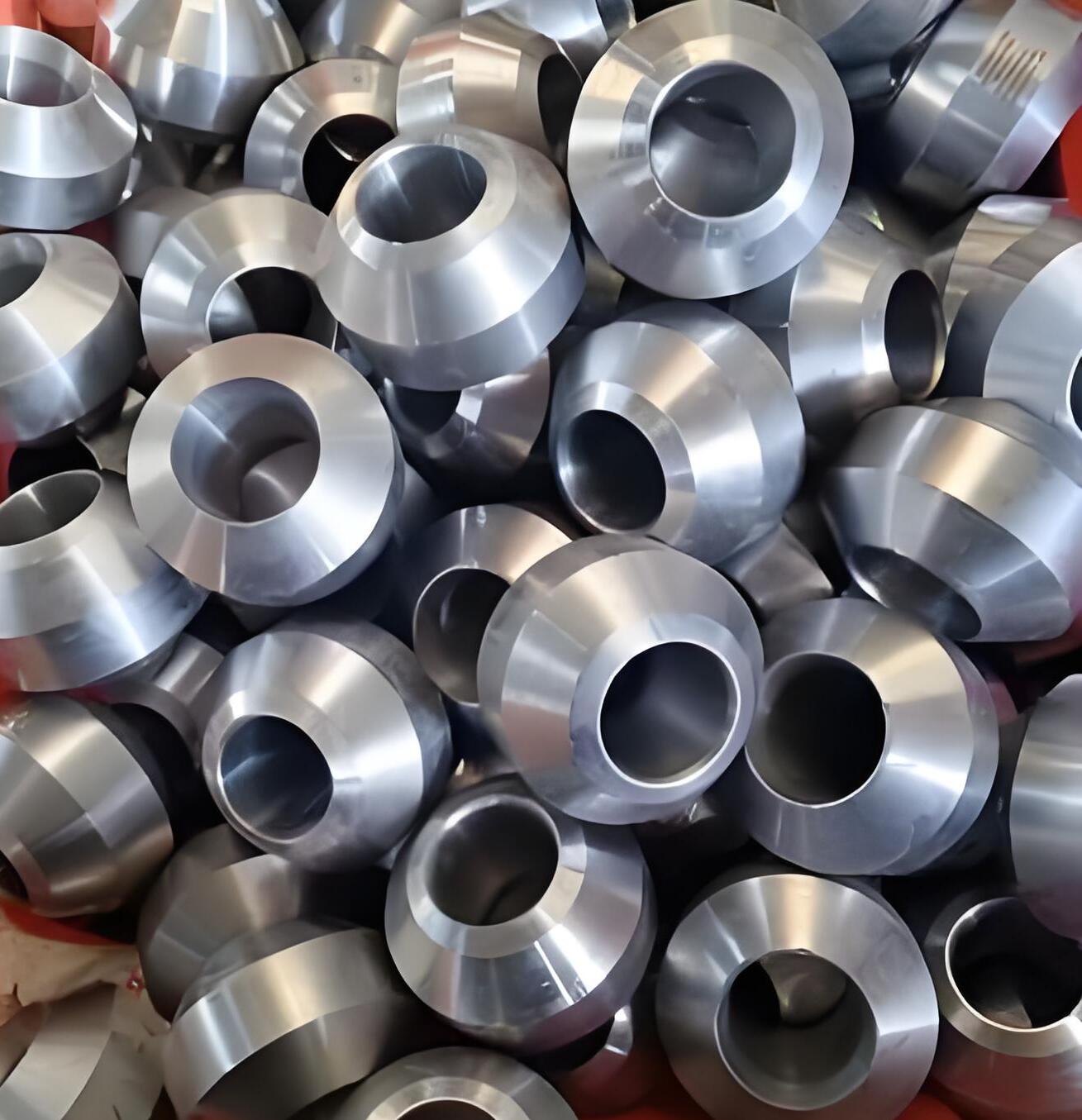

Branch outlet
A branch outlet is a specialized branch extraction pipe fitting for non-destructive opening with self-contained reinforcement on high-pressure pipelines. Its core function is to replace traditional old branch processes such as reducing tees
Inquiry
- The core advantages of the branch outlet are integral forging with built-in reinforcement, no need for reinforcement pads, extremely simple construction, zero hidden dangers under high pressure, optimized flow channels, and lower overall co
- Fully superior to traditional tees and on-site hole-opening processes. One-piece die forging, no splice welds, dense and uniform material, no sand holes or porosity
- Mechanical strength and pressure resistance stability far exceed ordinary cast and welded pipe fittings
- Can withstand ultra-high pressure and ultra-high temperature alternating working conditions over the long term. The saddle arc fits with extremely high precision
- Uniform stress distribution after welding and forming
Detailed Introduction
Branch outlet, also known as branch fitting or saddle, is formed by integral die forging, with the saddle arc surface fitting the outer wall of the main pipe, and after welding it has a self-reinforcing structure, used to lead out branch pipelines such as instrument impulse lines, sampling, drain and vent, fire branch pipes, etc. from the main pipe. The mainstream implementation standard is MSS SP-97, supporting ASME B16.9, ASME B16.11, main pipe applicable NPS2-NPS48, branch NPS1/4-NPS24, pressure rating 3000LB-6000LB. Material coverage includes carbon steel A105, low-temperature steel LF2, stainless steel 304/316L, alloy steel F11/F22, duplex steel 2205, and the connection forms include butt welding, socket welding, threaded and 45° lateral. Suitable for high-temperature and high-pressure, thick-wall heavy industry working conditions, not suitable for civil low-pressure water supply and drainage or ordinary HVAC pipe networks.
- Integral die forging one-piece forming, no splicing welds, replacing the traditional opening process of tee plus reinforcing pad
- The saddle arc surface fits the outer wall of the main pipe, and after welding it has a self-reinforcing structure, dispersing the opening stress
- Covers multiple materials such as carbon steel, low-temperature steel, stainless steel, alloy steel, duplex steel, etc., adapting to different medium working conditions
- Provides multiple connection forms such as butt welding, socket welding, threaded, 45° lateral, etc., which can be selected according to pipeline layout
- Conventional carbon steel and stainless steel mainstream specifications have stock inventory, and stock orders can be shipped quickly
- Supports non-standard reducing, special thread systems, special surface treatment and reverse customization according to drawings
| Product Name | Branch Outlet |
| Product Category | Contact Us to Confirm |
| Execution Standard | MSS SP-97, ASME B16.9, ASME B16.11, GB/T19326; pressure rating: 3000LB (SCH80), 6000LB (SCH160/XXS); specification system: main pipe NPS2-NPS48, branch NPS1/4-NPS24; mainstream types: butt welding, socket welding, threaded, 45° lateral, elbow-type branch outlet; thread systems: NPT, BSPT, BSPP, RC all systems optional; forming process: integral die forging, precision machining, 100% non-destructive testing; testing standards: PT penetrant, MT magnetic particle, UT ultrasonic testing; working temperature: carbon steel -20℃~450℃, stainless steel -19 |
| Customization | This factory possesses full-dimensional heavy-industry high-end non-standard customization capabilities for branch outlets, and can comprehensively meet the supporting needs of high-pressure heavy industry, special working conditions, old pipeline network renovation, and overseas non-standard projects at home and abroad. It can customize any non-standard reducing ratio, ultra-large-diameter main pipe branches, and ultra-high-pressure reinforced branch outlets, adapting to extremely stringent process working conditions. It supports customization of all categories of structures, including butt welding, socket welding, threaded, mitered, and elbow-type special-shaped structures, and can process mixed non-standard thread systems such as NPT, BSPT, and BSPP as needed. It supports special surface process customization, including hot-dip galvanizing, heavy-duty anti-corrosion and rust prevention, stainless steel mirror precision polishing, and pickling and passivation treatment, adapting to humid, salt-spray, and strongly corrosive outdoor heavy-industry environments. It can, according to overseas project drawings, old dismantled pipe fittings, and special pipe |
| MOQ | This factory's branch outlet adopts a foreign-trade flexible low-threshold minimum order mechanism, adapting to the procurement needs of large and small batch heavy industry both domestically and overseas, with flexible ordering and no mandatory threshold. For conventional carbon steel A105 butt-weld, socket-weld, and threaded mainstream specifications, the MOQ for 3000LB/6000LB styles is as low as 1 piece, which can fully satisfy engineering trial samples, high-pressure pipeline network point additions, old pipeline renovation replacement parts, and project prototypes. |
| Lead Time | Our factory maintains a massive in-stock inventory of mainstream branch outlet fittings in conventional Chinese standard and American standard carbon steel and stainless steel. Butt weld, socket weld, and threaded commonly used specifications are fully stocked. In-stock orders ship within 24 hours at extreme speed, quickly responding to overseas heavy industry urgent orders, high-pressure pipeline network emergency repairs, project rush work, and procurement needs with tight schedules. For conventional standard batch orders, we have our own integrated automated forging, precision machining, flaw detection, and quality inspection. |
| Packaging | This factory's branch outlet is a high-end precision forged high-pressure pipe fitting, using export packaging with refined protection at the level of foreign trade heavy industry, comprehensively protecting precision curved surfaces, bevels, threads, and machined flat surfaces, and completely preventing transportation bumps, scratches, rust, and deformation problems. All products undergo anti-rust treatment before leaving the factory. Carbon steel parts are sprayed with industrial long-acting anti-rust oil, and stainless steel parts undergo pickling and passivation and anti-oxidation treatment to isolate air and salt spray corrosion. Threaded ports are equipped with special plastic thread protector caps to precisely protect the integrity of the thread profile; welding bevels and curved fitting surfaces are affixed with shock-absorbing protective rubber pads to prevent damage to precision structures. Each individual piece is fully wrapped and cushioned with thickened bubble film and pearl cotton to avoid precision damage caused by transportation friction and stacking pressure. Small and medium specifications are classified and packed into thickened moisture-proof reinforced export cartons, and large-diameter |
| Reference Price | Inquiry |
Applications
- Instrument impulse lines, sampling lines, and blowdown/vent lines led out from the high-pressure main process pipeline network of petroleum refining
- Adding branch connections and pressure monitoring points on high-pressure long-distance natural gas pipelines
- High-temperature steam thermal system of thermal power plant with fire-fighting branch pipes and bypass circulation pipelines led out
- Branch modification of high-pressure reaction pipelines in coal chemical industry and process pipelines for corrosive media in fine chemical industry
- Addition of points for offshore platform oil and gas transmission pipeline networks and urban ultra-high-pressure heating main pipelines
Overview
A branch outlet is an integrally forged reinforced-opening branch extraction fitting used to directly extract a branch line from the outer wall of a main pipe. Compared with traditional reducing tees or the practice of field drilling plus reinforcing pads, a branch outlet does not require cutting the main pipe; its saddle curved surface fits against the outer wall of the main pipe and is then welded, and it has a built-in reinforcement structure that can disperse stress at the opening. The product mainstreamly implements the MSS SP-97 standard, is complemented by ASME B16.9 and ASME B16.11, applies to main pipes from NPS2 to NPS48, branch pipes from NPS1/4 to NPS24, and pressure ratings cover 3000LB and 6000LB. In terms of materials, carbon steel A105, low-temperature steel LF2, stainless steel 304/316L, alloy steel F11/F22, and duplex steel 2205 can be provided; connection forms include butt welding, socket welding, threaded, and 45° miter.
Key Features
The branch outlet is formed by integral die forging, has no spliced welds, and has a dense and uniform material structure. The saddle curved surface fits against the outer wall of the main pipe, and after welding it automatically forms a reinforcement structure, requiring no additional reinforcing pad and no complicated secondary reinforcement process. The internal flow passage is smooth, the medium conveyance resistance is low, and it is not prone to slag accumulation or scaling. For pipeline layouts involving large pipe to small pipe, scattered branch points, and unsuitability for installing traditional tees, the branch outlet can extract a branch without cutting the main pipe and without changing the main pipeline layout. The product can be used long-term in high-temperature and high-pressure, flammable and explosive, strongly corrosive, and other high-risk medium working conditions, and is a commonly used solution for branch connections in petrochemical, power, and oil and gas high-pressure pipelines.
Applications
Branch outlets are mainly oriented toward heavy industrial scenarios involving high temperature and high pressure, large diameter and heavy wall thickness, high-risk media, and precise instrument point extraction. Typical uses include high-pressure main process pipe networks in petroleum refining, long-distance high-pressure natural gas pipelines, high-temperature steam thermal systems in thermal power plants, high-pressure reaction pipelines in coal chemical industries, oil and gas transportation pipe networks on offshore platforms, ultra-high-pressure urban heating main trunk pipelines, and corrosive medium process pipelines in fine chemicals. Specifically, they can be used for extracting instrument impulse lines, sampling lines, drain and vent lines, firefighting branch lines, process branch lines, pressure monitoring interfaces, and bypass circulation lines from process main pipes. It should be noted that branch outlets are not suitable for civil low-pressure water supply and drainage or ordinary light-duty HVAC pipe networks.
Specifications
Branch outlets implement the MSS SP-97 standard, are complemented by ASME B16.9 and ASME B16.11, and can also refer to GB/T19326. Pressure ratings are divided into 3000LB (SCH80) and 6000LB (SCH160/XXS). Main pipes apply from NPS2 to NPS48, and branch pipes apply from NPS1/4 to NPS24. Connection forms include butt welding, socket welding, threaded, 45° miter, and elbow-type branch outlets. Thread systems can be selected as NPT, BSPT, BSPP, and RC. Materials cover carbon steel A105, low-temperature steel LF2, stainless steel 304/316L, alloy steel F11/F22, and duplex steel 2205. The working temperature range of carbon steel is -20℃ to 450℃; for the working temperature of stainless steel, please contact us for confirmation. Before leaving the factory, products undergo 100% non-destructive testing such as PT penetrant testing, MT magnetic particle testing, and UT ultrasonic inspection.
Procurement & Delivery
For conventional carbon steel A105 butt welding, socket welding, and threaded mainstream specifications in 3000LB/6000LB styles, MOQ is as low as 1 piece, suitable for engineering trial samples, point additions, and modification replacement parts. We routinely keep spot stock of mainstream branch outlets in conventional Chinese standard and American standard carbon steel and stainless steel, and in-stock orders ship within 24 hours. For batch order lead times, please contact us for confirmation. Packaging uses foreign trade heavy-industry-grade protection: carbon steel parts are sprayed with industrial anti-rust oil, and stainless steel parts undergo pickling and passivation treatment; threaded ports are fitted with plastic thread protectors, and welding bevels and curved fitting surfaces are covered with protective adhesive pads; each piece is individually wrapped in bubble film and pearl cotton, small and medium specifications are packed in moisture-proof reinforced export cartons, and large-diameter heavy-duty branch outlets are packed on fumigated solid wood pallets, secured with steel straps and covered with waterproof film. Neutral unbranded packaging, customer LOGO private labeling, and engineering shipping mark customization are supported.
Service & Support
We provide branch outlet selection guidance and welding installation process plans, and assist in confirming pipe network branch layouts. All products undergo fivefold quality inspection before leaving the factory: appearance screening, precise inspection of curved surface accuracy, verification of bevels and threads, dimensional calibration, and non-destructive testing. If after receiving the goods customers encounter problems such as original factory quality defects, wrong specification shipment, dimensional mismatch, thread damage, or transportation damage, we bear full responsibility and support free replacement, return or exchange, or re-customization. We can provide a full set of parameter drawings and process documents, and support long-term cooperative customers with inventory custodial management, partial shipments, and replenishment on demand. If you need to confirm a specific configuration or request a quotation, please contact us and provide information such as size, material, and quantity.
FAQ
What advantages do branch outlets have compared with tees?
Branch outlets have a built-in forged reinforcement structure, require no additional reinforcing pad, and are suitable for large pipe to small pipe and scattered point branches. They do not require cutting the main pipe, construction is simpler, stress at the opening is dispersed more evenly, and the overall cost is usually lower than traditional tee solutions, making them a commonly used choice for branch connections in high-pressure pipelines.
How should different types of branch outlets be selected?
For high-temperature and high-pressure main branch connections, welded branch outlets are usually selected; for small-diameter instrument tubing, socket-welded type can be selected; for scenarios such as sampling and blowdown that require quick-install interfaces, threaded type can be selected; for inclined process branches, 45° lateral type can be selected. For specific selection, please contact us and provide the main pipe and branch pipe sizes, pressure rating, medium, and temperature information, and we will assist in confirming.
Can branch outlets be used by directly opening a hole and welding?
Yes. Branch outlets are designed to be welded after directly opening a hole in the outer wall of the main pipe. The saddle curved surface fits the outer wall of the main pipe, and after welding, it has a built-in reinforcement structure. For welding process plans and installation precautions, please contact us to confirm.
What materials and connection forms are available for branch outlets?
Materials cover carbon steel A105, low-temperature steel LF2, stainless steel 304/316L, alloy steel F11/F22, and duplex steel 2205. Connection forms include butt weld, socket weld, thread, and 45° lateral. Thread standards can be NPT, BSPT, BSPP, RC. For special materials or non-standard connections, please contact us to confirm.
What are the minimum order quantity and delivery time for branch outlets?
For conventional carbon steel A105 butt weld, socket, and threaded mainstream specifications 3000LB/6000LB styles, the MOQ is as low as 1 piece. Conventional mainstream specifications are in stock, and in-stock orders are shipped within 24 hours. For bulk orders and non-standard customization delivery times, please contact us to confirm.
