British Standard Four-Way

Name: British Standard Four-Way
SKU: 36a6ca14-d17c-4d97-9a8c-8d41b0eb5d90

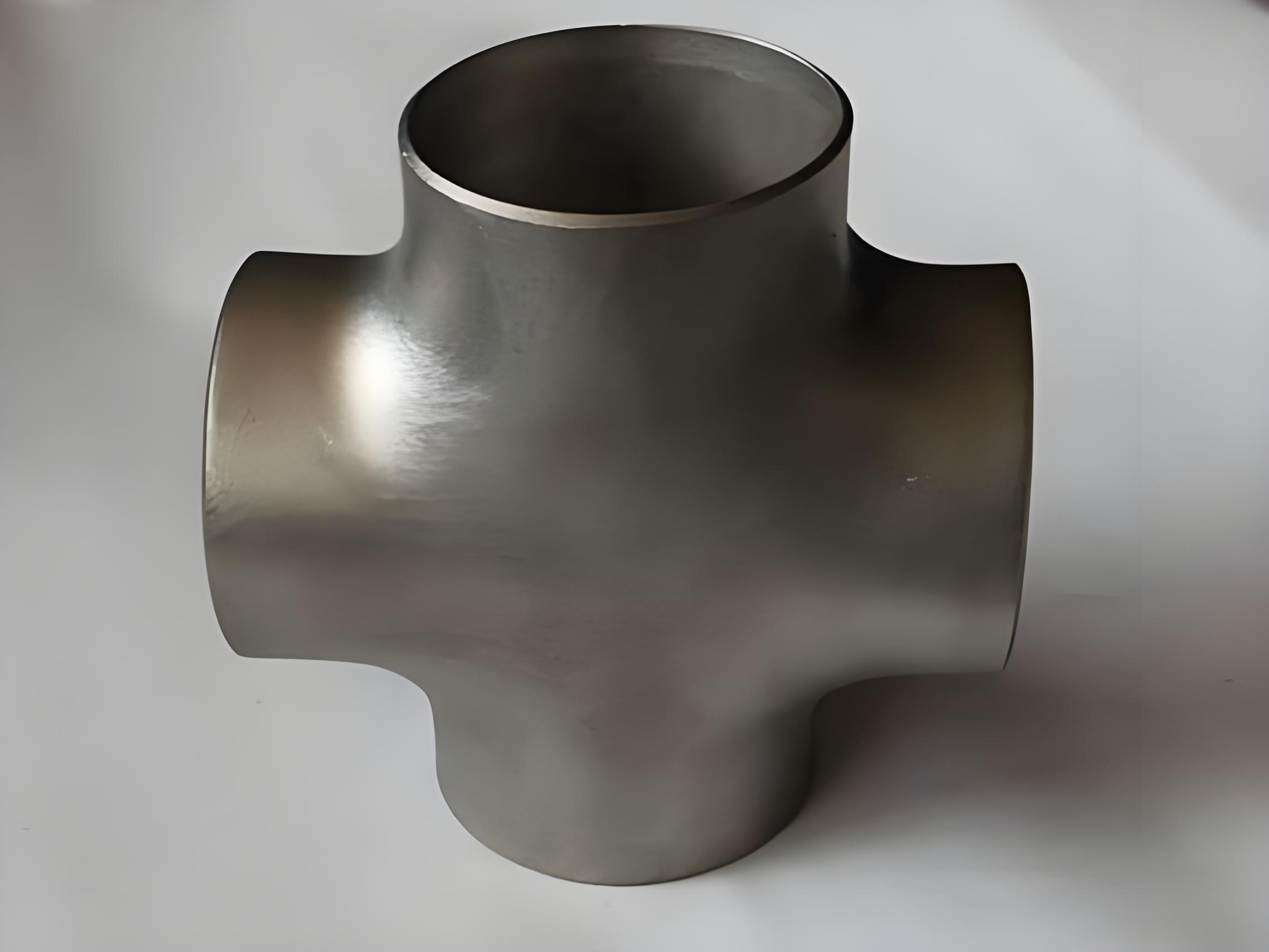

The British Standard four-way fitting is a specialized pipe fitting for four-way diversion, four-way convergence, and cross-node connection at the core of BS imperial pressure piping systems. It is designed specifically for pipeline network

Reference Price

Inquiry

The core advantages of British Standard four-way fittings are genuine BS British Standard compliance, precise imperial dimensions, universal applicability across the entire Commonwealth, wide operating condition adaptability, zero acceptanc
making them the preferred four-way flow-dividing pipe fittings for global British Standard foreign trade engineering projects. Products are precision-manufactured strictly in accordance with the British official standards BS EN10253 and BS3
inch pipe diameters, imperial wall thicknesses, thread specifications, and pressure ratings fully match those of original British factory products
with no dimensional deviation and no compatibility barriers
and can directly replace imported pipe fittings. Small and medium diameters adopt seamless hot-pressed integrated molding

Quote View Details

Detailed Introduction

British standard cross fittings are used for cross nodes in imperial pressure piping systems, undertaking four-way diversion and convergence. Equal-diameter crosses are suitable for symmetrical diversion from main pipes, while reducing crosses are suitable for reducing from main pipes to small-diameter branch pipes. Products are manufactured according to BS EN10253 and BS3799; imperial pipe diameters, wall thicknesses, threads, and pressure ratings match original British factory specifications. Small and medium diameters adopt seamless hot-pressed one-piece forming, while large diameters adopt rolled welding and undergo UT/RT non-destructive testing. Materials cover S235JR, A105 carbon steel, 304/316L stainless steel, 13CrMo44 alloy steel, and hot-dip galvanized malleable cast iron. We supply municipal general contractors, water and gas utilities, oil and gas construction companies, and cross-border traders in Commonwealth markets such as the United Kingdom, Australia, Southeast Asia, Africa, and the Middle East, and support drawing customization and old-part replication. Please contact us to confirm specific specifications and prices.

Manufactured according to BS EN10253 and BS3799; imperial sizes, threads, wall thicknesses, and pressure ratings match original British factory specifications and can directly replace imported pipe fittings
Nominal diameter DN15–DN1200, corresponding to 1/2″–48″; equal-diameter and reducing structures are complete, covering seamless, rolled-welded, and forged processes
Pressure coverage PN10–PN63 and Class3000/6000/9000; temperature coverage carbon steel -20℃~450℃, stainless steel -60℃~600℃
Small and medium diameters adopt seamless hot-pressed one-piece forming with no splicing welds; large-diameter rolled welds undergo 100% UT/RT non-destructive testing
Supports British standard customization such as 1/2″–48″ non-standard diameters, unconventional reducing ratios, extra-thick wall thicknesses, and extended straight pipe sections; sampling cycle is 3–5 days
Provides an 18-month cross-border warranty; during the warranty period, free return, replacement, and reshipment are provided for non-human-caused process, dimensional, and material defects

Product Name	British Standard Cross
Product Category	Tees & Crosses
The full set of technical parameters of British standard crosses strictly matches the official British industrial standards BS EN10253 and BS3799; the imperial system is precisely compliant and adapts to acceptance standards of British standard projects worldwide. Specification parameters	Nominal diameter DN15–DN1200, corresponding to imperial 1/2″–48″, covering equal-diameter and reducing full structures, with complete specifications across seamless, spiral-welded, and forged processes, and wall thicknesses following the full range of British standard conventional, thickened, and high-pressure grades. Pressure parameters: PN10–PN63 low-pressure and medium-pressure series, Class3000/6000/9000 high-pressure forged grades, fully covering working conditions from municipal civil use to oil and gas high-pressure industrial applications. Temperature parameters: carbon steel -20℃~450℃, stainless steel -60℃~600℃, suitable for diverse environments including tropical high temperatures and conventional low temperatures. Material parameters: British standard S235JR, A105 carbon steel, 304/316L stainless steel, 13CrMo44 alloy steel, hot-dip galvanized malleable cast iron,
Customization	The factory possesses full-dimensional special customization capability for the British standard four-way imperial system, having deeply cultivated the BS British standard system for many years, being proficient in imperial inch specifications, BSP imperial threads, British standard pressure ratings, and overseas working condition specifications, and can undertake various global British standard non-standard, irregular, high-pressure, and special working condition customization orders. For size customization, it can produce on demand any non-standard imperial caliber from 1/2″–48″, unconventional British standard reducing ratios, extra-thick high-pressure wall thicknesses, and extended straight pipe section irregular four-ways, strictly locking British standard precision tolerances to ensure perfect connection of overseas imperial pipelines. For pressure customization, it supports customization across the full PN low-pressure and medium-pressure series and all Class high-pressure grades, adapting to working conditions from water utility civil use to oil and gas ultra-high pressure. For material customization, it covers British standard carbon steel, stainless steel, alloy steel, and malleable cast iron, and supports hot-dip galvanizing
MOQ	In response to the diverse procurement needs of British standard foreign trade overseas warehouse distribution, sporadic technical transformation supplementary orders, and Commonwealth large-scale EPC centralized procurement, British standard four-ways are provided with a flexible tiered MOQ minimum order mechanism, adapting with a low threshold to various global British standard B2B procurement scenarios. Conventional in-stock standard specifications include DN15–DN600 mainstream imperial calibers, PN16/PN25 conventional pressures, S235
Lead Time	Relying on dedicated British standard production lines, full-specification in-stock warehousing, and a foreign trade ultra-fast delivery system, British standard four-ways provide tiered, controllable, zero-delay delivery services, precisely matching Commonwealth overseas engineering schedules and cross-border logistics timeliness. For DN15–DN600 conventional British standard four-ways, carbon steel and stainless steel mainstream imperial specifications are sufficiently stocked, and standard orders complete precision quality inspection within 3 working days
Packaging	British standard four-ways use standardized protective packaging dedicated to Commonwealth foreign trade ocean shipping, specifically adapting to long-distance sea transport, multi-leg transit, tropical high humidity, and coastal salt fog storage and transport environments, comprehensively resisting moisture, rust, impact, and deformation, ensuring overseas warehousing retains intact product appearance. Small DN15–DN100 threaded and socket-weld precision British standard four-ways use an inner layer of imported anti-rust oil paper + waterproof PE film double sealing, isolating sea transport moisture and salt fog corrosion, with an outer layer of thickened hard cardboard boxes individually packaged, and built-in shock-absorbing foam separation, strictly preventing scratches and impacts to threads and beveled precision structures. Medium DN125–DN300 conventional four-ways use waterproof film + fumigation-free solid wood pallet packing, arranged neatly in layers, secured with straps to prevent slipping, adapting to automated loading and unloading and inventory stacking in overseas warehouses. Large
Reference Price	Inquiry

Applications

Cross-shaped symmetrical diversion for municipal water supply and drainage trunk networks in Commonwealth cities
Node connections for community central heating networks and urban-rural gas transmission networks
Overseas BS old pipeline renovation and imperial pipe upgrade and expansion projects
Overseas thermal power station thermal pipe networks, oil and gas field gathering and transportation pipelines, natural gas booster transmission pipelines
Fine chemical plants, water treatment facilities, pharmaceutical plants corrosion-resistant fluid transmission pipe networks
Threaded and socket-weld connections for small-diameter instrument pipelines, fire protection systems, and auxiliary pipelines
British standard export trade overseas warehouse stocking, sporadic technical modification supplementary orders, and Commonwealth large-scale EPC centralized procurement

Procurement & Delivery

British standard cross fittings are supplied according to the BS British standard system; regular stock covers DN15–DN600 mainstream imperial diameters, PN16/PN25 regular pressure ratings, and S235 carbon steel and other specifications. Standard orders for DN15–DN600 can complete precision quality inspection within 3 working days; please contact us to confirm the specific delivery time and logistics plan. Packaging is carried out according to Commonwealth foreign trade ocean shipping requirements: small DN15–DN100 threaded and socket weld cross fittings use double-layer sealing with anti-rust oil paper plus waterproof PE film, with the outer layer individually packed in hard cardboard boxes; medium DN125–DN300 use waterproof film plus fumigation-free solid wood pallets; large diameters above DN350 use custom thickened solid wood closed wooden crates for reinforcement. The outer packaging is affixed with all-English BS standard labels, marking the British standard model, imperial specifications, material, pressure rating, and batch heat number. Regarding the minimum order quantity, regular stock standard specifications support small trial sales orders starting from 10 pieces, and can be purchased in mixed batches with British standard elbows, tees, flanges, and reducers; please contact us to confirm the tiered MOQ.

Service & Support

Before sales, the British standard technical team assists in verifying imperial inch dimensions, BSP thread specifications, BS pressure ratings, and material adaptability, and can optimize the selection plan based on overseas pipeline network drawings. During sales, product precision and quality are verified according to BS British standard standards, supporting overseas customers in factory supervision and online inspection, and the entire order process is traceable. After sales, an 18-month cross-border warranty is provided; during the warranty period, non-human-caused defects in craftsmanship, dimensions, or materials are eligible for free return, replacement, and reshipment, and we bear the cross-border logistics losses. We provide lifelong free British standard pipeline technical support, and provide 24-hour English online Q&A for British standard pipe fitting welding, assembly and commissioning, and overseas acceptance specifications. In terms of customization, we can undertake 1/2″–48″ non-standard imperial diameters, unconventional reduction ratios, ultra-thick high-pressure wall thicknesses, and extended straight pipe section special-shaped crosses, and support British standard drawing customization, 1:1 replication of overseas old parts, laser English marking, and custom foreign trade packaging; the sampling period is 3–5 days.

FAQ

Are British standard crosses produced according to BS standards, and can they be used in UK and Commonwealth projects?

The products are produced according to BS EN10253 and BS3799; imperial dimensions, threads, wall thickness, and pressure ratings are controlled according to the British standard system, and they can be used in British standard pipeline projects in the UK, Australia, Southeast Asia, Africa, and other Commonwealth regions. Please contact us to confirm the specific project acceptance requirements.

Can British standard crosses be used interchangeably with national standard or European standard pipe fittings?

The British standard is an independent imperial inch system, and pipe diameters, threads, and tolerances differ from metric pipe fittings. For dedicated British standard projects, it is recommended to use genuine BS pipe fittings, and it is not recommended to mix or substitute them arbitrarily with national standard or European standard pipe fittings.

Do you support small-batch trial orders and mixed-batch procurement?

Regular in-stock standard specifications support small trial orders starting from 10 pieces, and can be purchased in mixed batches together with British standard elbows, tees, flanges, and reducers. Please contact us to confirm the specific mixed-batch combinations and tiered MOQ.

Can non-standard diameters or special operating conditions be customized?

We can produce 1/2″–48″ non-standard imperial diameters, non-conventional reducer ratios, extra-thick high-pressure wall thicknesses, and extended straight pipe sections with special-shaped crosses as needed, support customization based on British standard drawings and 1:1 replication of overseas old parts, with a sampling cycle of 3–5 days. Please provide drawings or old part parameters, and we will assist in confirming the solution.

How are delivery time and packaging arranged?

Standard orders for DN15–DN600 conventional British standard crosses can complete precision quality inspection within 3 working days; the specific delivery time depends on specifications and quantity. Packaging is carried out according to ocean shipping requirements: small parts use anti-rust oil paper plus PE film plus hard cardboard boxes, medium parts use fumigation-free solid wood pallets, and large diameters use thickened solid wood closed wooden crates, with full English BS standard labels affixed on the outside.
