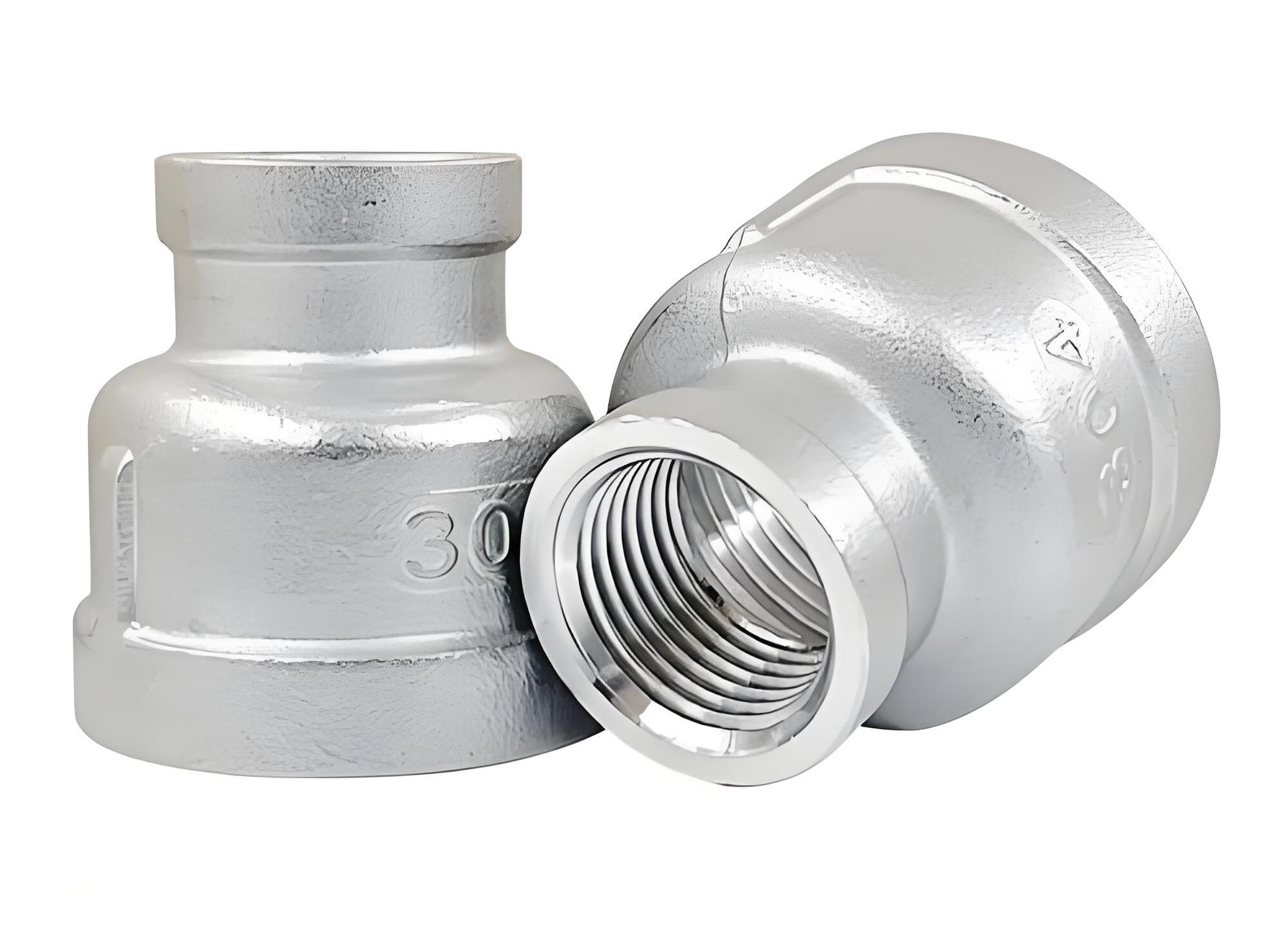

Cast reducing pipes are mainly used for smooth diameter-reducing transitions between different pipe diameters in industrial piping systems, realizing fluid transfer when the pipe diameter changes from large to small or from small to large,
Inquiry
Cast reducer belongs to heavy-duty wear-resistant industrial reducing pipe fittings. Unlike conventional stamped and push-formed reducers, the product is integrally cast and formed, with no spliced welds, wall thickness can be thickened according to working conditions, the structure is dense, and it resists scouring, wear, and negative pressure deformation. The product is divided into two structures: concentric and eccentric. Concentric is used for vertical pipelines and uniform pressure transportation, while eccentric is used for horizontal pipelines, which can reduce gas accumulation, liquid accumulation, and sediment deposition. The nominal diameter covers DN20 to DN1200, supports national standard, American standard, European standard, German standard, Russian standard, and Japanese standard external dimensions, and can also produce non-standard thickened, non-standard drop, and extended sections according to drawings. Materials include gray cast iron, ductile iron, cast steel WCB, precision-cast stainless steel, and duplex steel casting. We serve B2B customers such as overseas dust removal and environmental protection engineering general contractors, mining pipeline construction units, cement plant supporting equipment suppliers, and power plant thermal pipe network contractors, providing selection confirmation, customized production, and cross-border delivery support.
| Product Name | Cast Reducer |
| Product Categories | Reducer |
| The complete set of process parameters for cast reducers adapts to heavy industry heavy-duty wear-resistant pipeline standards, and structural strength and wear resistance far exceed conventional stamped pipe fittings. Specification parameters | Nominal diameter DN20–DN1200, supports both concentric and eccentric structures, reducer drop for any size head can be customized, covering the full range of industrial diameter reduction needs. Wall thickness parameters: conventional casting wall thickness 6mm–30mm, wear-resistant layer can be thickened as needed, far exceeding the wall thickness of stamped pipe fittings of the same specification, with extremely strong erosion resistance. Pressure parameters: full grade coverage from PN10–PN63, dense cast body structure, uniform pressure bearing, no local stress weak zones. Temperature parameters: cast iron and cast steel suitable for -20℃~450℃, stainless steel casting can withstand high-temperature working conditions of -60℃~600℃. Material parameters: ductile iron, gray cast iron, WCB carbon steel casting, 304/316L stainless steel casting, duplex steel casting. Process parameters: resin sand precision casting |
| Customization | The factory possesses full-dimensional heavy-industry casting reducer specialized customization capabilities, deeply engaged in sand casting and precision lost-wax casting processes for many years, proficient in heavy-industry wear-resistant, high-pressure, high-temperature, and anti-clogging special working condition requirements, and can undertake various non-standard cast reducer customization orders worldwide. For size customization, it can produce any non-standard reducer drop, extra-large thickened wear-resistant wall thickness, extended transition section, and special-height concentric/eccentric reducers as needed, fully matching the interface dimensions of overseas old non-standard pipe networks and imported heavy-industry equipment. For structural customization, it can produce anti-clogging smooth transition, eccentric anti-liquid accumulation, eccentric anti-gas accumulation, and heavy-load reinforcing rib special-shaped cast reducers. Material customization covers gray cast iron, ductile iron, WCB cast steel, 304/316L stainless steel, and duplex steel special casting materials, suitable for wear-resistant, corrosive |
| MOQ | Cast reducers adopt a heavy-industry flexible tiered MOQ minimum order mechanism, suitable for diverse procurement scenarios such as small orders for overseas heavy-industry equipment supporting, sporadic engineering replenishment orders, and large-volume EPC heavy-industry centralized procurement. Conventional in-stock standard specifications include DN50–DN400 mainstream concentric and eccentric cast reducers, conventional cast iron and cast steel materials, and PN16/PN25 general pressure grades, with a minimum |
| Lead Time | Relying on a dedicated heavy-industry casting production line, sand casting mass production capacity, and an in-stock inventory system, cast reducers provide stable, controllable, heavy-industry precision tiered delivery services, suitable for the rigorous schedule milestones of overseas heavy-industry projects. DN20–DN400 conventional concentric and eccentric cast reducers, with ductile iron and ordinary cast steel mainstream specifications kept in stock, standard orders completed for shipment within 3 working days |
| Packaging | Cast reducers adopt heavy-industry foreign trade thickened and reinforced dedicated packaging. In response to the characteristics of rough casting surfaces, relatively large dead weight, easy bumping and paint loss during transportation, and easily damaged edges and corners, a high-strength protection scheme is adopted, suitable for ocean shipping, multiple transshipments, and container stacking storage and transport. Small DN20–DN100 cast reducers are coated with anti-rust oil + overall wrapped with waterproof PE film, with an outer layer of thickened woven bags double-layer wound and sealed, preventing sea freight salt spray corrosion and surface bumping and peeling. Medium DN125–DN400 conventional specifications, after overall film coating for rust prevention, are neatly stacked on fumigation-free solid wood pallets, integrally locked and fixed with steel straps, anti-slip and anti-displacement, suitable for orderly container loading and mechanized loading and unloading in overseas warehouses. Large heavy cast reducers of DN450 and above adopt customized |
| Reference Price | Inquiry |
Cast reducers are produced according to orders. Conventional DN20–DN400 mainstream specifications are kept in stock. Standard orders complete processes such as rust removal within 3 working days. For heavy castings above DN450 and non-standard custom orders, the delivery time is confirmed according to specifications, materials, and quantities. Packaging is graded by specification: small DN20–DN100 use anti-rust oil spraying, waterproof PE film wrapping, and double-layer winding with thickened woven bags; medium DN125–DN400 are coated with anti-rust film and then stacked on fumigation-free solid wood pallets, secured with steel straps; large sizes above DN450 use custom solid wood reinforced wooden crates, with internal wood blocks for positioning, shock-absorbing filling, and corner protectors. The outer packaging is affixed with bilingual Chinese-English labels indicating specifications, materials, type, pressure, and batch parameters. MOQ adopts a tiered minimum order mechanism. Conventional in-stock standard specifications have a relatively low minimum order quantity. For specific purchase quantities and delivery times, please contact us for confirmation.
Before sales, the technical team assists in confirming concentric or eccentric structure, suitable materials, and thickened specifications according to the medium, dust, slurry, negative pressure, and erosion intensity. During sales, the casting pouring, annealing, precision machining, and flaw detection quality inspection processes can be monitored, and factory supervision, online inspection, and third-party testing are supported. After sales, an 18-month cross-border warranty is provided. During the warranty period, for problems such as blowholes, sand holes, structural cracking, and substandard materials caused by non-human installation damage, free remanufacturing and replacement are provided, and cross-border logistics losses are borne. Lifetime pipeline technical support is provided, with 24-hour bilingual Chinese-English answers to installation, working condition adaptation, and wear-resistant maintenance questions. A full set of English reports including 3.1B certificates, spectral analysis, flaw detection, hardness, and hydrostatic pressure can be provided free of charge, suitable for overseas bidding and acceptance.
Cast reducers are integrally cast and formed, with greater wall thickness and a denser structure. They are resistant to erosion and wear, and are suitable for dust, particle, slurry, and negative pressure working conditions. Ordinary stamped pipe fittings have thin walls and are mainly used for clean media such as clear water and gas. Under wear conditions, they are easily worn through.
Choose concentric reducers for vertical pipelines and when uniform pressure conveying is required; choose eccentric reducers for horizontal pipelines and when preventing gas accumulation, liquid accumulation, and blockage is required. We can assist in confirming according to your pipeline layout and medium conditions.
Yes. We can customize thickened wear-resistant layers, non-standard reducing drops, extended transition sections, and reinforced rib structures as needed, and can also produce according to drawings or perform 1:1 replication of overseas old parts. Please provide dimensions, materials, and working condition requirements, and we will assist in confirming the solution.
We can provide a full set of English reports free of charge, including 3.1B certificates, spectroscopy, flaw detection, hardness, and hydrostatic testing, suitable for overseas bidding and acceptance. Please specify the specific report requirements when inquiring.
We use precision sand casting plus annealing technology, and batch castings are controlled to have no blowholes, no sand holes, and no deformation. We support in-factory supervision, online inspection, and third-party testing, and you can also specify acceptance standards in the order.
DN20–DN400 mainstream specifications are kept in stock, and standard orders complete processes such as rust removal within 3 working days. MOQ uses a tiered minimum order mechanism; regular in-stock standard specifications have a relatively low minimum order quantity. Please contact us to confirm the specific delivery time and minimum order quantity.
