What standard do American standard branch outlets implement?
The core implementation is MSS SP-97-2025, compatible with ASME B31.3 process piping and ASME B16.11 pipe fitting specifications.

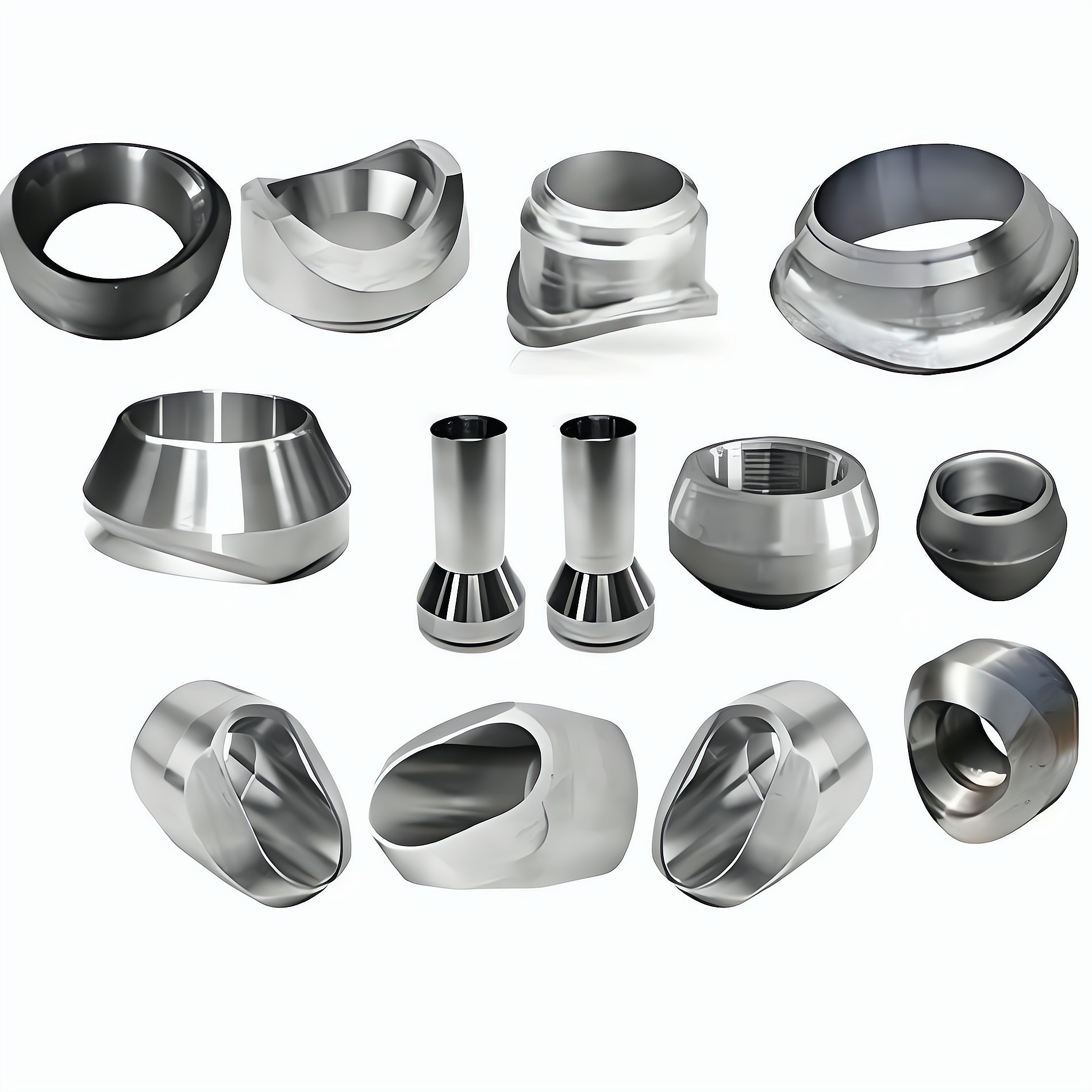

American standard branch outlet
The American standard branch outlet is a universally used integrally forged reinforced branch pipe fitting in international pressure piping systems. It is specifically designed for various complex working conditions in the American standard
Reference Price
Inquiry
- The American standard branch outlet has four core foreign trade advantages: globally universal, unified standards, full coverage of working conditions, and zero engineering adaptation risk.
- It is the preferred branch pipe fitting for overseas projects. First
- Complies with the globally recognized MSS SP-97 standard
- Compatible with all ASME piping systems
- It is universally applicable to projects in Europe, America, the Middle East, Southeast Asia, and Africa
Detailed Introduction
American standard branch outlet, also known as American standard forged branch outlet fitting, is integrally die-forged from ASTM series forged blanks, and manufactured through forging, heat treatment, non-destructive testing, and CNC machining. During installation, there is no need to cut the main pipe; it is directly welded to the outer wall of the main pipe to lead out the branch, and relies on the integrated reinforcement structure of the body to offset the strength loss caused by the opening, thereby reducing the risk of cracking and leakage under high-pressure, high-temperature, low-temperature, and corrosive conditions. Specifications cover NPS 1/8" to 4", pressure ratings from 3000LB to 9000LB, materials include carbon steel, low-temperature steel, alloy steel, stainless steel, duplex steel, and nickel-based alloys, and connection forms include butt welding, socket welding, NPT thread, 45° angled, extended, and elbow branch, etc. The product is commonly used in overseas EPC projects, foreign-funded factories, and oil and gas offshore platforms, supports standard stock items and non-standard customization according to drawings, and is supplied with English material and non-destructive testing reports.
- Implements the MSS SP-97-2025 standard, is compatible with the ASME B31.3 and ASME B16.11 American standard piping systems, and is suitable for overseas projects in Europe, America, the Middle East, Southeast Asia, Africa, and other regions that implement American standard systems.
- Integrally die-forged, no need to cut the main pipe before welding to lead out the branch, relies on the integrated reinforcement structure of the body to offset the strength loss from the opening, replacing reinforcement pads, on-site opening reinforcement, and some tee structures.
- Specifications cover NPS 1/8" to 4", pressure ratings from 3000LB to 9000LB, materials include carbon steel, low-temperature steel, alloy steel, stainless steel, duplex steel, and nickel-based alloys, and can match the selection requirements of different working conditions.
- Connection forms include butt welding, socket welding, NPT thread, 45° angled, extended, and elbow branch, and many other forms, making it easy to match interfaces according to piping design drawings.
- Supports non-standard customization according to drawings, can interface with overseas English drawings, and is supplied with English material and non-destructive testing reports, facilitating acceptance and customs clearance for overseas projects.
| Product Name | ASME Branch Outlet |
| Product Categories | Branch Outlet |
| All technical parameters of the American standard branch outlet strictly align with the internationally authoritative MSS SP-97 and ASME standards, with precise and compliant parameters and global applicability. Standard system | Core implementation of the latest edition of the MSS SP-97-2025 standard, compatible with ASME B31.3 process piping and ASME B16.11 fitting specifications. Structural specifications: covering the full category of butt welding, socket welding, threaded, 45° mitered, extended type, and elbow type, with nominal diameter NPS 1/8"-4". Pressure ratings: 2000LB, 3000LB, 6000LB, 9000LB high-pressure pound ratings, with wall thicknesses from SCH40 to XXS across the full range of American standard wall thicknesses. Applicable materials: the full range of American standard ASTM forged materials including carbon steel, low-temperature steel, alloy steel, stainless steel, duplex steel, and nickel-based alloys. Temperature resistance range: -101℃ to 1000℃, covering the full temperature range of cryogenic, normal temperature, medium-high temperature, and ultra-high temperature working conditions. |
| Customization | Our factory possesses deep non-standard customization capabilities for the full range of American standard branch outlet fittings (weldolet-type branch connections), strictly following the MSS SP-97 international standard to implement various overseas special drawings and special operating condition customization requirements. We support customization in the full range of American standard ASTM materials, covering A105 carbon steel, LF2/LF3 low-temperature steel, F11/F22 alloy steel, 304/316 stainless steel, 2205/2507 duplex steel, and the full range of nickel-based alloys, precisely matching different harsh operating conditions worldwide. We support non-standard parameter customization, and can machine unconventional NPS nominal diameters, special reducing ratio configurations, ultra-high-pressure pound ratings, specially thickened SCH wall thicknesses, and extended pipe section non-standard dimensions. We support structural customization, and can produce American standard pipes with special angles, embedded thickened reinforcement, special sealing interfaces, and irregular branch structures. |
| MOQ | American standard branch outlet fittings adopt a flexible and relaxed foreign trade minimum order mechanism, adapting to the diverse procurement needs of overseas customers for sample testing, small sporadic replenishment, bulk stocking, and large-scale engineering centralized procurement, with no high threshold restrictions. The MOQ for conventional carbon steel and stainless steel general-purpose American standard stock models is as low as 1 piece, supporting overseas customers' project sampling, drawing-based model selection testing, engineering sample submission for inspection, and urgent on-site replacement parts, greatly reducing |
| Lead Time | Our factory has dedicated standardized production lines for American standard pipe fittings and ample foreign trade standing stock. Relying on a mature cross-border supply chain, we ensure efficient and stable delivery of global foreign trade orders. General market A105 carbon steel and 304/316 stainless steel conventional American standard models are in ample stock. After order parameters are verified and payment is made, refined export packaging and shipment can be completed within 24-48 hours, rapidly responding to overseas |
| Packaging | In response to the high-standard requirements of American standard branch outlet fitting foreign trade export, ocean shipping, and international acceptance, a professional cross-border export packaging solution is adopted to ensure the goods remain undamaged, meet appearance standards, and clear customs smoothly throughout the entire process. Individual precision pipe fittings are individually fully wrapped and protected with thickened high-density pearl cotton, precisely protecting bevels, threads, and machined precision surfaces, eliminating friction scratches and collision deformation. The outer layer is wrapped with double-layer waterproof and rust-proof vacuum film, effectively resisting ocean shipping salt spray and humid moisture, preventing oxidation, rust, and color difference defects on alloy surfaces. Small standard specifications are packed into thickened moisture-proof export cartons, with built-in cushioning foam for shaping and reinforcement; medium and large heavy-duty pipe fittings are secured on international fumigation-free solid wood pallets, reinforced with steel strapping, complying with global customs fumigation-free clearance standards. All products are strictly according to material, |
| Reference Price | Inquiry |
Applications
- Branch connections in overseas refinery units, hydrogenation units, oil and gas gathering and transportation pipelines, and chemical high-temperature and high-pressure process pipelines.
- Branch outlet extraction for international thermal power plant steam pipelines, cogeneration pipelines, and overseas power station high-pressure feedwater systems.
- Branch connections requiring low-temperature steel or austenitic stainless steel materials in LNG liquefied natural gas projects, air separation cryogenic units, and overseas extreme cold region low-temperature pipeline networks.
- Branch connections requiring corrosion-resistant alloy materials in offshore platform salt spray corrosion pipelines and acidic medium transportation pipeline networks.
- In overseas EPC projects, pipeline capacity expansion and renovation of foreign-funded factories, or branch renovation of old pipelines, branch outlets are used to replace reinforcement pads, on-site opening reinforcement, or some tee structures.
- Standard stock preparation and project-matched supply for foreign trade specialty pipe fitting export traders, cross-border B2B platform distributors, and overseas local pipeline supporting service providers.
Procurement & Delivery
For conventional carbon steel and stainless steel general American standard stock models, MOQ is as low as 1 piece, suitable for overseas customers' sample testing, sporadic replenishment, bulk stocking, and large-scale project centralized procurement. A105 carbon steel and 304/316 stainless steel conventional American standard models are in sufficient stock. After order parameters are verified and payment is made, export packing and shipment can be completed within 24-48 hours. Packaging uses thickened high-density pearl cotton for independent full-wrap protection, with the outer layer wrapped in double-layer waterproof and rust-proof vacuum film; small standard specifications are packed in thickened moisture-proof export cartons, while medium and large heavy-duty pipe fittings are secured on international fumigation-free solid wood pallets and reinforced with steel straps. The outer packaging is affixed with all-English international labels indicating standard, specification, material, pressure class, and batch information, suitable for full-container sea freight, LCL, and air freight. For delivery times and packaging details of other materials, non-standard specifications, and customized orders, please contact us for confirmation.
Service & Support
Before sales, we can provide international working condition diagnosis, American standard material selection, pressure class matching, and pipeline standard adaptation consultation, helping to avoid acceptance risks caused by non-compliance with American standards or material mismatch. During sales, a dedicated foreign trade customer service representative follows up on the order, synchronizing forging, heat treatment, international inspection, export packing, and cross-border logistics progress, and supporting order parameter fine-tuning, expedited production scheduling, and document reissuance. After sales, warranty service is performed according to international standards. Under normal compliant working conditions, products with non-human-caused quality defects support free return and exchange and replacement shipment, and we bear the corresponding cross-border logistics costs. We can provide all-English American standard pipe fitting welding processes, international pipeline installation specifications, and overseas working condition usage guidance, assisting with overseas customs clearance, project acceptance, and qualification verification. Long-term customers can enjoy inventory reservation, priority production scheduling, and exclusive foreign trade cooperation floor prices.
FAQ
Are American standard branch outlets and national standard branch outlets interchangeable?
Their dimensions, tolerances, and inspection standards are different. For overseas projects, it is recommended to use American standard branch outlets. For domestic national standard projects, mixed use is not recommended. For specific selection, please contact us for confirmation.
Can the products be used in overseas high-temperature and high-pressure working conditions?
The products cover 3000LB to 9000LB high-pressure pound ratings, adopt an integrally forged reinforced structure, and have undergone non-destructive testing. For material and pound rating selection under specific working conditions, please contact us for confirmation.
What is the delivery time for regular stock items?
A105 carbon steel and 304/316 stainless steel regular American standard models are sufficiently stocked. After order parameters are verified and payment is made, export packing and shipment are completed within 24-48 hours. For other materials and customized specifications, please contact us to confirm the delivery time.
Do you support non-standard customization according to drawings?
Yes. We can customize ASTM materials, non-standard NPS diameters, reducing size ratios, ultra-high-pressure pound ratings, special thickened wall thicknesses, extended pipe sections, special angles, embedded thickened reinforcement, special sealing interfaces, and irregular branch structures. We can also perform sandblasting and rust removal, acid pickling and passivation, mirror polishing, anti-corrosion coating, and laser engraving. Please provide drawings and quantities, and we will assist in confirming the solution.
How are export packaging and accompanying documents arranged?
Each piece is individually fully wrapped and protected with pearl cotton, with an outer double-layer waterproof and rust-proof vacuum film; small sizes use thickened moisture-proof export cartons, and medium and large sizes use fumigation-free solid wood pallets secured with steel straps. The outer packaging is affixed with all-English international labels indicating standard, specification, material, pound rating, and batch. English material and non-destructive testing reports are provided. For specific document requirements, please contact us for confirmation.
