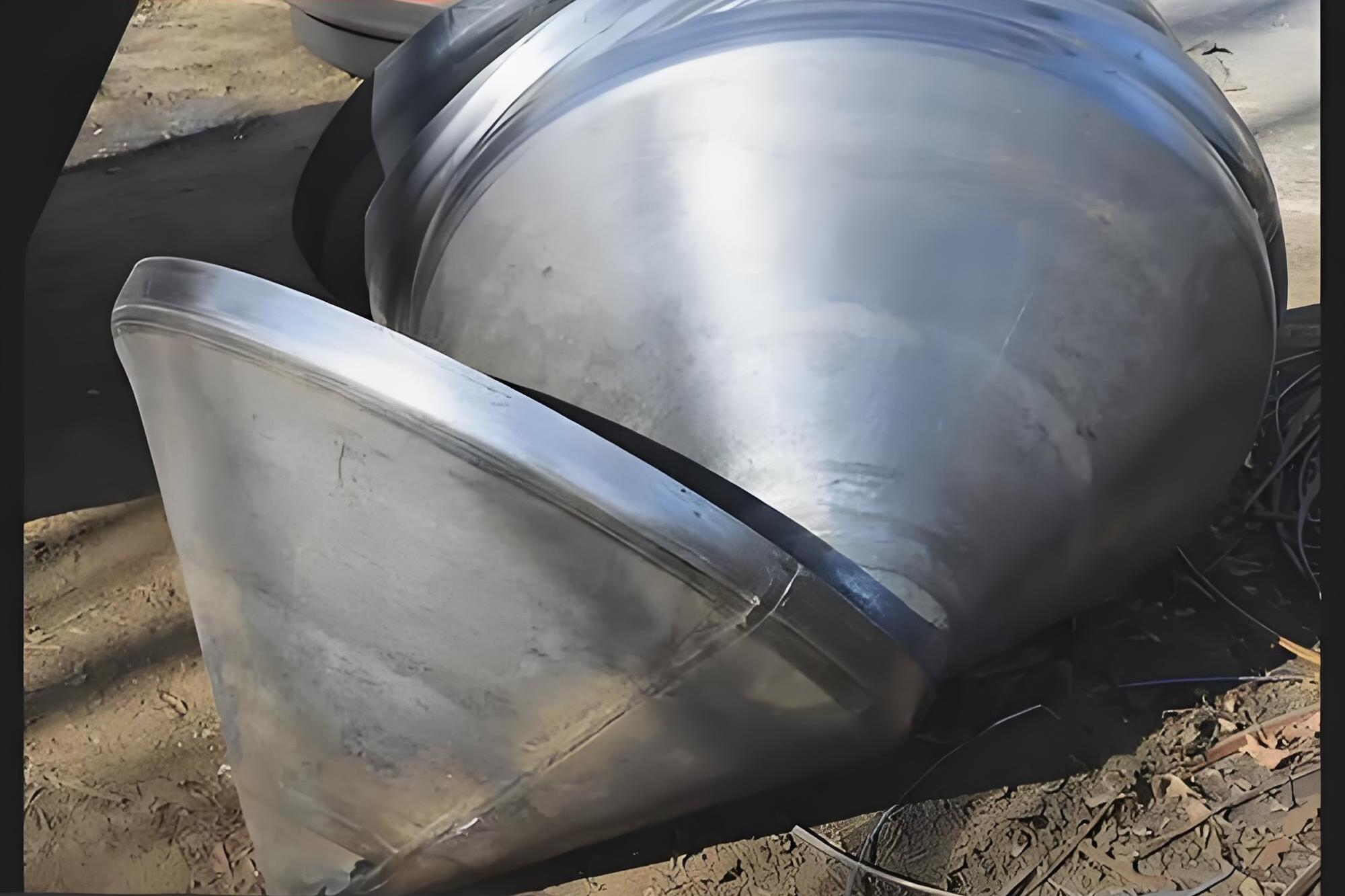

Tapered tube cap
Conical pipe caps, also known as conical heads or reducer heads, are special-shaped plugging pipe fittings dedicated to industrial pipelines and special pressure vessels. They are primarily suitable for special working conditions such as co
Inquiry
- The core advantages of our factory's conical pipe caps are precise special-shaped structure, excellent flow-guiding performance, strong mechanical stability, and high adaptability to non-standard specifications.
- They fill the gap in special working conditions that conventional heads cannot adapt to. The products are formed in one piece by integral spinning and integral forging.
- No spliced welds, no segmented welding.
- The cone curvature is uniform, the taper is precise, and the wall thickness is thick.
- Structural strength far exceeds segmented welded conical heads
Detailed Introduction
Conical pipe caps differ from conventional heads such as flat-bottom, spherical crown, dished, and elliptical heads; the core lies in the flow-guiding, buffering, and reducing-diameter closure capabilities brought by the conical gradual transition structure. The conical pipe caps we produce comply with GB/T12459, ASME B16.9, and non-standard pressure vessel head manufacturing standards, and are formed by integral CNC spinning or one-piece forging, with no segmented splicing welds, uniform cone curvature, and precise taper. Products cover materials such as carbon steel, stainless steel, alloy steel, and duplex steel, and can adapt to high and low temperature, medium and low pressure, and slight wear and corrosion working conditions. They mainly solve the problems of dust accumulation, material accumulation, and silt blockage in dead corners of pipeline and equipment sealing, and are used in scenarios such as environmental protection dust removal, desulfurization and denitrification, powder storage, chemical non-standard equipment, reducing pipelines, grain machinery, and metallurgical equipment. Specifications and materials can be customized according to drawings or samples; welcome to contact us to confirm the specific configuration.
- Integral CNC spinning or one-piece forging, no segmented splicing welds, uniform cone curvature, precise taper
- The conical gradual transition structure achieves medium flow guiding, buffering and pressure reduction, and uniform pressure distribution, reducing dead-corner material accumulation at the seal
- Customizable concentric conical, eccentric conical, and reducer reducing conical shapes, supporting any diameter and wall thickness
- Materials cover 20# carbon steel, 304/316L stainless steel, low alloy steel, duplex steel, etc., adapting to different working conditions
- For conventional standard tapers and standard diameters, in-stock models have MOQ as low as 1 piece, supporting sample inspection and engineering replenishment
- Export-grade protective packaging, with special protection against knocking and deformation for the conical irregular structure
| Product Name | Tapered Tube Cap |
| Category | Contact us to confirm |
| Customization | Our factory has industry-leading non-standard customization strength for conical pipe caps, and can undertake various high-end customization orders with complex irregular shapes, special working conditions, and special structures, precisely solving engineering problems that conventional products cannot adapt to. Specification and structure customization supports one-to-one customization of any diameter, any wall thickness, concentric conical, eccentric conical, reducer reducing conical, and extra-large/extra-small taper, and can be mold-produced strictly according to customer drawings, samples, and equipment installation dimensions. Material customization covers special materials such as 20# carbon steel, 304/316L stainless steel, low alloy steel, duplex steel, titanium alloy, and Hastelloy, adapting to extreme working conditions of high temperature, wear resistance, strong corrosion, and powder wear. Process customization supports thickened pressure resistance, wear-resistant surfacing, internal and external anti-corrosion, mirror polishing, sandblasting passivation, and high-temperature resistance |
| MOQ | To adapt to the diversified needs of special-shaped pipe fittings foreign trade trial orders, engineering supporting, non-standard customization, and batch centralized procurement, our factory has set flexible and loose minimum order quantity rules for conical pipe caps, greatly lowering the threshold for cooperation on special orders for global customers. For conventional standard taper and conventional diameter stock models, the MOQ is as low as 1 piece, supporting customer sample testing, single-piece equipment supporting, and engineering local renovation replenishment, |
| Lead Time | Our factory has CNC spinning special production lines and non-standard stock warehousing. The delivery time for conical pipe cap orders is stable and controllable, perfectly matching the progress of foreign trade special orders and domestic non-standard engineering. For conventional standard taper and standard diameter stock models, quality inspection, packaging, and rapid outbound shipment are completed within 24–48 hours after payment confirmation. For conventional standardized batch orders within 1,000 pieces, the production delivery time is stable |
| Packaging | Our factory's conical pipe caps use exclusive protective packaging for foreign trade export grade, with special protection against the characteristics of conical special-shaped structures being prone to collision, deformation, and scratching, suitable for ocean shipping, international air freight, and long-distance land transport cross-border logistics. Small-diameter conical heads are individually fully wrapped with waterproof PE film, filled with high-density shockproof foam, fixing the cone structure to prevent compression deformation and surface scratches during transportation. Medium and large-diameter conical pipe caps focus on protecting the conical surface, port, and bevel positions, with custom anti-collision protective rings and dust-proof protective covers added, and the outer layer wrapped with thickened waterproof and rainproof cloth to eliminate moisture corrosion and transportation wear. The entire batch of goods is neatly fixed on fumigation-free solid wood pallets, using dedicated slots to fix the special-shaped cones, combined with high-strength strapping and multi-layer stretch film overall wrapping reinforcement, to avoid displacement and collision during bumps, |
| Reference Price | Get a Quote |
| Standard | GB/T12459, ASME B16.9, non-standard pressure vessel head manufacturing standards |
Applications
- Conical necking and end sealing at the upper and lower ports of desulfurization towers, denitrification equipment, and dust collector shells
- End closure of powder storage tanks, granular material silos, material buffer tanks, and powder conveying pipelines to avoid material accumulation and poor discharge
- Conical head assembly for non-standard pressure vessels, variable-diameter tanks, buffer and pressure stabilization equipment, and vertical terminal equipment
- Special-shaped variable-diameter pipelines, gradual transition pipelines, and end sealing renovation of special-angle pipelines
- Non-standard mechanical supporting components for metallurgical dust removal, building materials equipment, grain storage equipment, new energy dust removal systems, etc.
Overview
A conical pipe cap is a special-shaped sealing pipe fitting that adopts a conical gradually shrinking structure, also called a conical head, conical pipe cap, or reducing conical head. Unlike conventional flat-bottom, spherical crown, dished, and elliptical heads, it is mainly used at pipe openings or equipment ends that require flow guidance, buffering, reducing and closing, and prevention of material accumulation. The conical pipe caps we produce comply with GB/T12459, ASME B16.9, and non-standard pressure vessel head manufacturing standards. They are formed by integral CNC spinning or one-piece forging and pressing, with no segmented splicing welds, and the cone curvature is uniform and the taper is precise. Products can be made of carbon steel, stainless steel, alloy steel, duplex steel, and other materials, suitable for scenarios such as environmental dust removal, desulfurization and denitrification, powder storage, chemical non-standard equipment, and reducing pipelines.
Key Features
First, the structure adopts integral forming with no splicing welds, and the cone curvature and taper are controlled stably, with compressive and impact resistance superior to segmented welded structures. Second, the conical gradual transition structure can achieve automatic flow guidance of the medium, uniform flow distribution, and buffering and pressure reduction, reducing dust accumulation, material accumulation, and siltation blockage in dead corners of pipeline and equipment sealing. Third, it has high non-standard adaptability, supporting concentric conical, eccentric conical, reducer reducing conical, and customization of any diameter and any wall thickness, and can be produced according to customer drawings, samples, or equipment installation dimensions. Fourth, material options cover 20# carbon steel, Q235B carbon steel, 16Mn carbon steel, 304/316L/321 stainless steel, low alloy steel, duplex steel, etc., corresponding to high and low temperature, medium and low pressure, and slight wear and corrosion working conditions.
Applications
Conical pipe caps are mainly used in special-shaped, flow-guiding, closing, and buffering scenarios that ordinary heads are not good at handling. In the environmental protection industry, they are used for conical closing and end sealing at the upper and lower ports of desulfurization towers, denitrification equipment, dust collector shells, and waste gas treatment equipment, helping with airflow guidance and pressure stabilization buffering. In chemical powder and bulk solids, they are used for powder storage tanks, granular material silos, material buffer tank bodies, and end closing of powder conveying pipelines, reducing material accumulation, dead-corner retention, and poor discharge. In special equipment, they are used for conical head assembly of non-standard pressure vessels, reducing tank bodies, buffering and pressure stabilization equipment, and vertical terminal equipment. In industrial pipelines, they are used for special-shaped reducing pipelines, gradual transition pipelines, and end sealing renovation of pipelines at special angles. In addition, they are also used for non-standard mechanical supporting components in metallurgical dust removal, building materials equipment, grain storage equipment, new energy dust removal systems, etc.
Specifications
The specifications of conical pipe caps are confirmed according to project requirements. Conventional parameters include diameter, wall thickness, taper, structural form (concentric, eccentric, reducer reducing, with straight edge), material, and groove angle. The execution standards are GB/T12459, ASME B16.9, and non-standard pressure vessel head manufacturing standards. The forming process is integral CNC spinning or one-piece forging and pressing, with no segmented splicing welds. Materials can be selected from 20# carbon steel, Q235B carbon steel, 16Mn carbon steel, 304/316L/321 stainless steel, low alloy steel, duplex steel, etc. For specific combinations of diameter, wall thickness, taper, and material, please contact us to confirm, and we can assist with selection according to drawings, samples, or equipment installation dimensions.
Purchase & Delivery
For conventional standard taper and standard diameter in-stock models, MOQ is as low as 1 piece, suitable for sample inspection, single-piece equipment supporting, and local engineering renovation replenishment. For conventional standardized batch orders within 1000 pieces, the production lead time is stable and controllable; for conventional in-stock models, after payment confirmation, quality inspection, packing, and shipment are completed within 24–48 hours. Packaging adopts foreign trade export-grade protection. Small-diameter conical heads are individually fully wrapped with waterproof PE film and filled with high-density shockproof foam; for medium and large diameters, key protection is given to the cone surface, port, and groove positions, with custom anti-collision protective rings and dust-proof protective covers added, and the outer layer is thickened with waterproof and rainproof cloth. The entire batch of goods is fixed on fumigation-free solid wood pallets, reinforced with high-strength strapping and multi-layer stretch film. Shipping marks, LOGO, and specification parameter labels can be customized as needed. For specific lead times and packaging requirements, please contact us to confirm.
Service & Support
We provide pre-sales and after-sales support for customers purchasing conical pipe caps. Before sales, we can assist with special-shaped working condition analysis, taper selection, structural matching, and equipment adaptation solutions to reduce selection deviations. After sales, we provide welding installation guidance and construction process Q&A. After order shipment, we synchronize logistics updates and assist overseas customers with customs clearance and receiving. The product warranty period is 18 months. During the warranty period, quality problems caused by non-human damage are repaired or replenished free of charge; if there are factory quality problems, dimensional deviations, process defects, or material mismatch, free returns, exchanges, and replacements are supported. Dedicated after-sales specialists respond online 7×24 hours. For specific service terms, please contact us to confirm.
FAQ
What equipment are conical pipe caps mainly used on?
Conical tube caps are mainly used for environmental dust removal, desulfurization towers, powder silos, particle storage tanks, reducing pipes and other equipment, for end closure, flow guidance buffering and anti-accumulation sealing. They are suitable for irregular pipe openings and reducing closure scenarios that ordinary heads cannot handle well.
Can conical tube caps be customized with any taper?
Yes. We support customization of concentric conical, eccentric conical, reducer reducing conical and different tapers, and can produce according to customer drawings, samples or equipment installation dimensions. Please contact us to confirm the specific taper, diameter and wall thickness.
What is the difference between conical tube caps and ordinary heads?
Ordinary heads are mainly flat-bottom, spherical crown, dished and elliptical, while conical tube caps use a conical gradual contraction structure. The main advantages are flow guidance, buffering and pressure reduction, reducing material accumulation dead corners, and being more suitable for closure sealing of irregular equipment and reducing pipelines.
What are the minimum order quantity and delivery time of conical tube caps?
For conventional standard tapers and standard diameters, the MOQ of in-stock models is as low as 1 piece, suitable for sample testing and engineering replenishment. Conventional in-stock models are shipped within 24–48 hours after payment confirmation; conventional standardized batch orders within 1000 pieces have stable delivery times. Please contact us to confirm the specific delivery time.
Can conical tube caps be exported overseas?
Yes. We use export-grade protective packaging suitable for ocean shipping, international air freight, and long-distance land transportation. The packaging meets customs export inspection standards and does not require secondary fumigation. We can customize shipping marks, LOGOs, and specification parameter labels as needed. For specific export requirements and documents, please contact us for confirmation.
