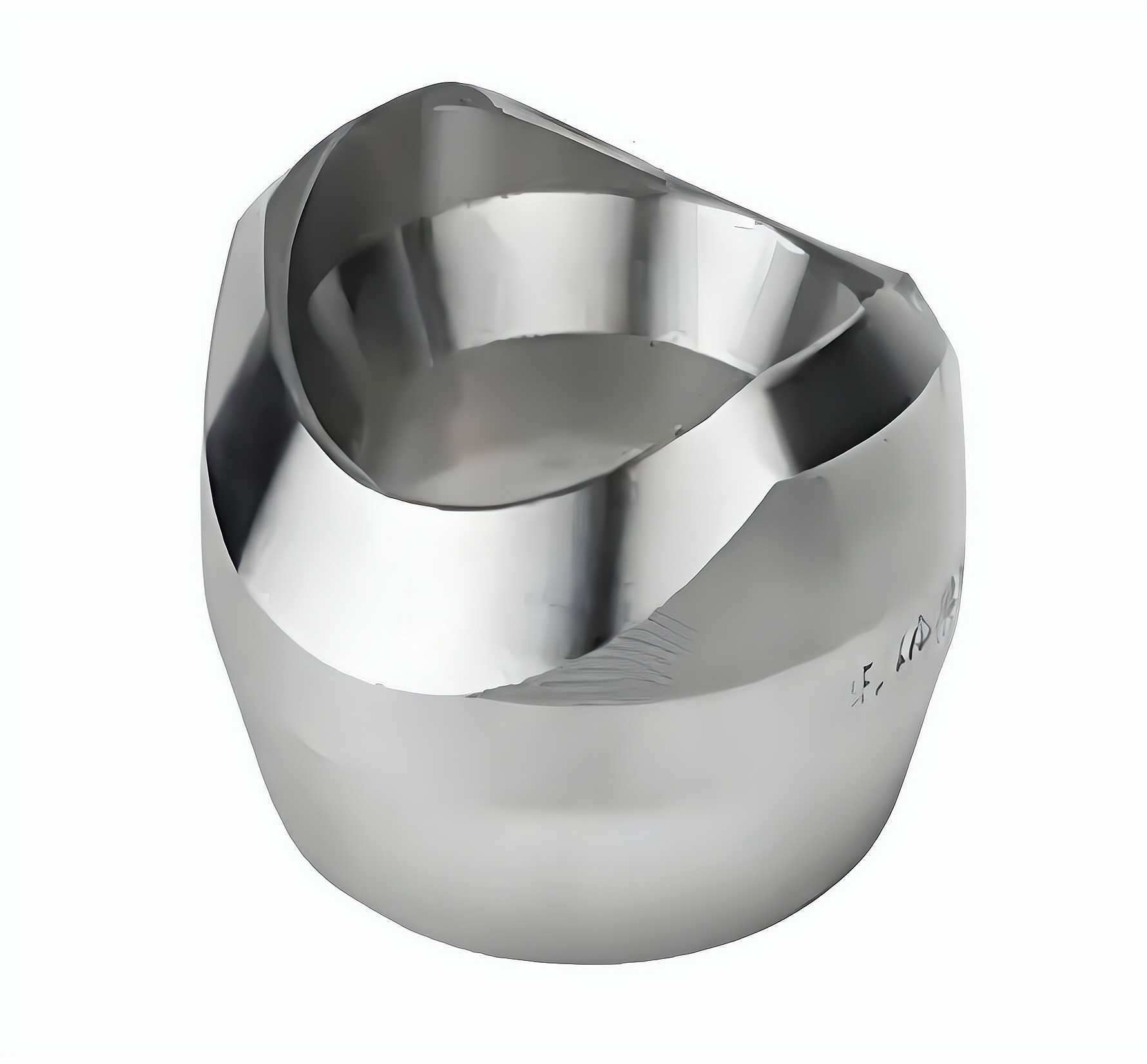

The German standard branch outlet is an integrated die-forged reinforced branch pipe fitting dedicated to German industrial pipelines. It is specifically designed for DIN standard high-temperature and high-pressure, alternating load, and pr
Inquiry
German standard branch outlet is used to directly weld and lead out a branch on the outer wall of the main pipe, without cutting the main pipe; it relies on the integrated reinforcement of the body to offset the strength attenuation caused by the opening, replacing saddle reinforcement plates, on-site opening reinforcement, and small tee structures. The product uses German standard grade forged billets, formed through hot die forging, heat treatment, non-destructive testing, and CNC machining. Specifications cover DN6-DN100, nominal pressure PN16-PN160, materials include C22.8, P265GH carbon steel, 16Mo3 alloy steel, 1.4301, 1.4404 stainless steel, duplex steel, and nickel-based alloys. Connection forms include butt welding, socket welding, G/BSP German standard pipe thread, 45° miter, extended type, elbow type, and flange type. TÜV-verifiable EN10204-3.1/3.2 inspection documents can be provided. Suitable for German chemical, power station, heating, oil and gas projects, supporting spot supply and non-standard customization according to drawings.
| Product Name | DIN Branch Outlet |
| Product Categories | Branch Outlet |
| All technical parameters of German standard branch outlets strictly align with DIN and DIN-EN 10253 German authoritative industrial standards, with precise and compliant parameters and German-system global universality. Standard system | Core implementation of DIN German industrial standards and DIN-EN 10253 pressure pipe fitting standards, compatible with PED 2014/68/EU EU pressure equipment directive and MSS SP-97 international structural specification. Structural specifications: covers butt welding, socket welding, G thread, 45° miter, extended, elbow, flow-reducing, and flange full categories, diameters DN6-DN100. Pressure ratings: German standard PN16 to PN160 full series nominal pressure, covering low, medium, and high pressure full working conditions, supporting American standard pound-class compatible interchangeability. Applicable materials: C22.8/P265GH German standard carbon steel, 16Mo3 alloy steel, 1.4301/1.4404/1.4571 German standard stainless steel, duplex steel, nickel-based alloy. Temperature resistance range: |
| Customization | Our factory possesses deep precision customization capability for the full range of German standard DIN branch outlets, strictly following German DIN industrial standards to fulfill various German-system special drawings and high-end precision working condition customization requirements. Supports customization in the full range of genuine German standard materials, covering C22.8 carbon steel, P265GH high-temperature carbon steel, 16Mo3 heat-resistant alloy steel, 1.4301/1.4404/1.4571 German standard stainless steel, 2205/2507 duplex steel, and nickel-based alloy, precisely adapting to German harsh working conditions of high temperature, high pressure, corrosion resistance, and precision pressure-bearing. Supports non-standard parameter customization, capable of processing non-conventional DN diameters, German standard special reducing ratios, ultra-high PN pressure ratings, special thickened pipe walls, and equipment-specific extended insulation section non-standard dimensions. Supports German-system special struc |
| MOQ | German standard branch outlets adopt a German-system foreign trade loose and flexible minimum order mechanism, adapting to the diverse procurement needs of German-speaking region customers for sample testing, precision replenishment, batch stocking, and high-end German standard engineering centralized procurement, with no high-threshold restrictions. Conventional C22.8 carbon steel and 1.4301 stainless steel general German standard in-stock models have MOQ as low as 1 piece, supporting German customer project sampling and DIN drawing selection testing |
| Lead Time | Our factory is equipped with dedicated precision production lines for German standard pipe fittings and sufficient foreign trade standing stock, relying on a mature European cross-border supply chain to ensure efficient and stable delivery of German-speaking region and global German standard orders. General market C22.8 carbon steel and conventional German standard stainless steel standard models are sufficiently in stock; after order parameters are checked and confirmed, refined export packing and shipment are completed within 24-48 hours, rapidly responding to German indu |
| Packaging | Aiming at the high-standard requirements of German standard branch outlets for German high-end engineering acceptance, EU strict import inspection, and ocean cross-border transportation, a German-system precision dedicated export packaging solution is adopted to ensure zero defects of goods and zero obstacles in customs clearance throughout the process. Individual precision pipe fittings are individually fully wrapped and protected with thickened high-density pearl cotton, precisely protecting welding bevels, threads, and precision machined surfaces, eliminating transportation scratches, collisions, and deformation, meeting German industrial appearance acceptance standards. The outer layer is wrapped with double-layer waterproof and anti-rust vacuum film, effectively resisting ocean shipping salt spray and humid moisture, preventing pipe fitting oxidation, rust, and surface defects. Small standard specifications are packed into thickened moisture-proof export cartons with built-in cushioning foam for shaping and reinforcement; medium and large heavy-duty pipe fittings are secured with EU fumigation-free solid wood pallets, reinforced with steel strapping, complying with Ger |
| Reference Price | Inquiry |
Conventional C22.8 carbon steel and 1.4301 stainless steel general German-standard ready stock models have an MOQ as low as 1 piece, supporting samples and DIN drawing selection testing. For general standard model orders, after order parameters are checked and confirmed, export packing and shipment are completed within 24-48 hours. For non-standard customized products, the production scheduling cycle must be confirmed according to drawings and quantity; please contact us for confirmation. Packaging uses individual pearl cotton full wrapping for each piece, an outer waterproof and rust-proof vacuum film, small specifications are packed in moisture-proof export cartons, medium and large specifications are secured on EU fumigation-free solid wood pallets, and the outer packaging is affixed with German-English bilingual labels indicating the DIN standard, material, parameters, and batch.
Before sales, we provide German-standard working condition diagnosis, DIN material selection, PN pressure matching, and PED/TÜV standard adaptation consulting. During sales, one-on-one foreign trade customer service follows up the entire order, synchronizing progress on forging, heat treatment, non-destructive testing, export packing, and cross-border logistics, and supports fine-tuning of order parameters, expedited production scheduling, and supplementary issuance of qualifications. After sales, under compliant working conditions, products with non-human-caused quality defects support free returns and exchanges and replacement shipments, and we bear the corresponding cross-border logistics costs. We can provide English German-standard welding processes, German industrial pipeline installation specifications, and working condition usage guidance, assisting customers with TÜV inspection applications, customs clearance, and qualification verification. Long-term customers enjoy inventory reservation, priority production scheduling, and exclusive cross-border bottom prices.
The core follows DIN German industrial standards and the DIN-EN 10253 pressure pipe fittings standard, the structure references MSS-SP-97, and it meets the PED 2014/68/EU pressure equipment directive. TÜV-verifiable EN10204-3.1/3.2 inspection documents can be provided.
Size tolerances, material grades, pressure systems, and inspection levels differ. For high-end precision projects in Germany, it is recommended to use genuine DIN German standard branch outlets to avoid acceptance issues caused by non-conforming standards. For specific project compatibility, please contact us to confirm.
All products can issue EN10204-3.1/3.2 verifiable reports and support TÜV third-party testing. For specific inspection items and document requirements, please contact us to confirm.
For standard German standard stock models in conventional C22.8 carbon steel and 1.4301 stainless steel, the MOQ is as low as 1 piece, and export packing and shipping are completed within 24-48 hours after order parameters are confirmed. For other materials and non-standard customization, please contact us to confirm the production schedule and minimum order quantity.
Support customization according to DIN drawings for non-standard DN nominal diameters, special reducing ratios, ultra-high PN pressure ratings, thickened pipe walls, extended insulation sections, special structures, and surface treatments. Please provide drawings and quantity, and we will assist in confirming the solution and quotation.
We adopt a German-style export packaging solution: each individual piece is fully wrapped independently with pearl cotton, the outer layer uses waterproof and rust-proof vacuum film, medium and large specifications use EU fumigation-free solid wood pallets, and the outer packaging is affixed with German-English bilingual labels indicating the DIN standard, material, parameters, and batch, suitable for sea, air, and land transport.
