Non-standard pipe caps are mainly used for sealing irregular pipelines that standard pipe fittings cannot adapt to, renovation of old pipelines, closure of non-standard equipment ports, and isolation and sealing under special working condit
Inquiry

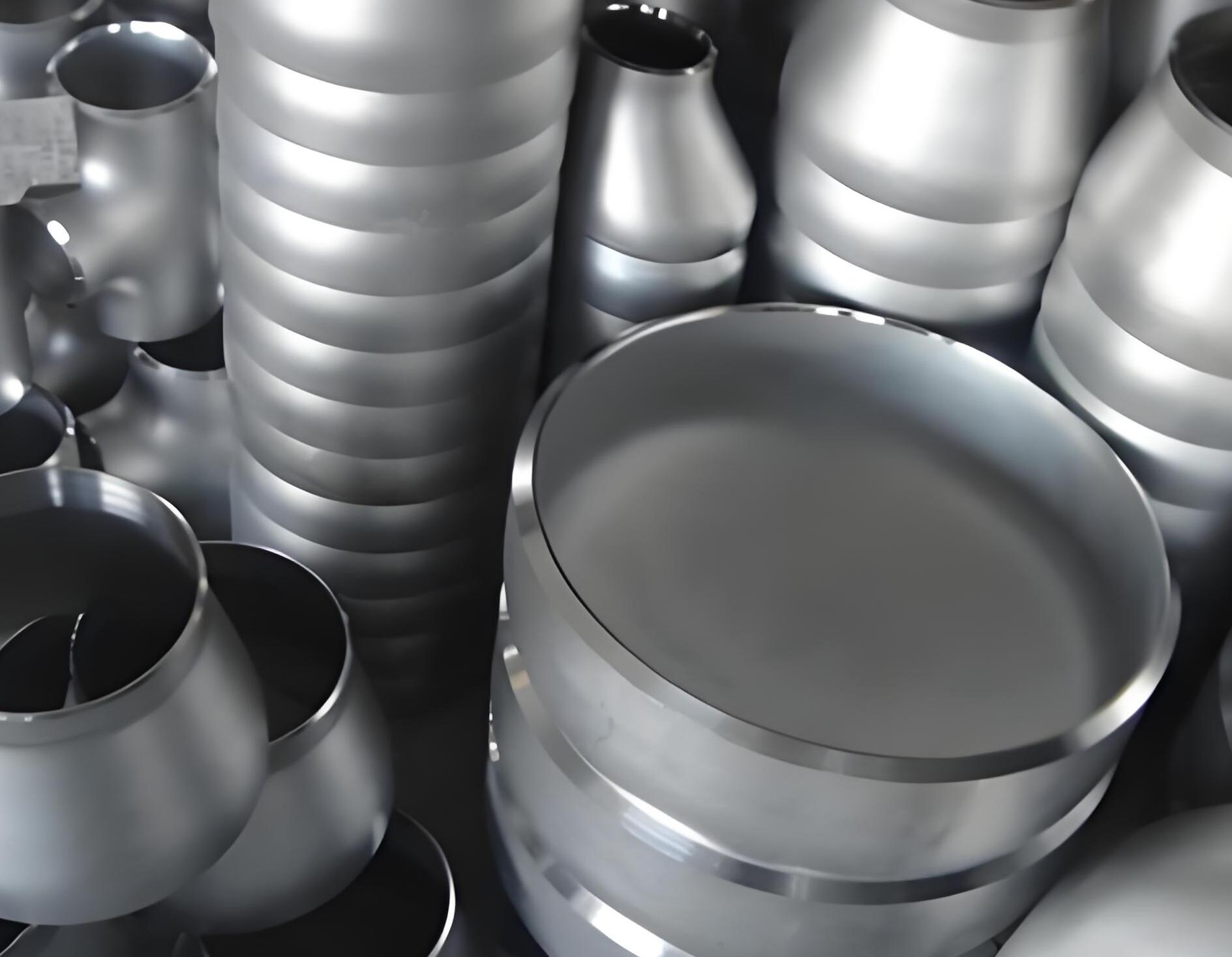

Non-standard pipe caps are produced for pipe openings that standard pipe fittings cannot cover. When pipelines are of obsolete or discontinued specifications, involve mixed multiple standards, equipment interfaces have irregular structures, or working conditions involve high pressure, low temperature, or strong corrosion, conventional pipe caps often cannot be installed or provide unreliable sealing. We perform modeling and machining according to drawings, physical samples, or on-site measured dimensions provided by customers, and can customize structures such as eccentric diameters, non-standard arc heights, unequal long and short straight edges, irregular transition curved surfaces, and thickened or thinned wall thickness. Materials cover systems such as carbon steel, stainless steel, duplex steel, heat-resistant steel, and low-temperature alloy steel. Products are used for permanent closure of irregular pipe openings, plugging of spare ports, partition isolation of multi-system pipe networks, and temporary sealing for pressure testing. Before purchasing, it is recommended to clarify the medium, pressure and temperature, interface dimensions, and installation space. Please contact us to confirm the specific configuration and quotation.
| Product Name | Non-standard Pipe Cap |
| Product Category | Pipe Cap |
| Non-standard pipe caps have no fixed standard parameters; all are individually customized based on customer working conditions, drawings, samples, and on-site dimensions, with flexible parameters and full coverage. Customized diameter range | DN10–DN3000 ultra-large span arbitrary non-standard bore, supporting customization of non-standard special-shaped bore, eccentric bore, and reducing bore. Customized wall thickness range: 2mm–120mm arbitrary non-standard thickened, thinned special wall thickness, adapting to low-pressure thin and light, ultra-high-pressure thickened full working conditions. Structural parameters support custom arc height, custom straight edge length, special-shaped curved surface, eccentric structure, unequal long and short edge structure, special-shaped transition structure. Pressure adaptation range: normal pressure–ultra-high pressure 200MPa, local thickening pressure-bearing strengthening can be done according to requirements. Temperature adaptation: -196℃ ultra-low temperature to 650℃ ultra-high temperature range. Materials can be arbitrarily customized carbon steel, stainless steel, alloy steel, duplex steel, heat-resistant steel, low-temperature steel, special alloys. Dimensional tolerance, groove form, butt |
| Customization | Our factory possesses full-category, full-structure, full-working-condition super strong non-standard customization capability, and can undertake various ultra-high-difficulty special-shaped pipe cap customization orders at home and abroad, solving engineering problems that all standard pipe fittings cannot solve. Supports four major customization modes: drawing customization, sample replication, on-site surveying and mapping customization, and working-condition scheme customization, and can customize any special-shaped ellipse, eccentric dished head, unequal-edge curved surface, lengthened short straight edge, reducing plugging, flat-bottom special-shaped, deep and shallow arc special structures according to requirements. Supports precision machining of arbitrary non-standard bore, non-standard wall thickness, non-standard arc height, non-standard groove, and non-standard butt-joint outer diameter. Materials can be customized across the full series of carbon steel, stainless steel, duplex steel, heat-resistant steel, low-temperature steel, and special alloys. Supports high-pressure thickening strengthening, low-temperature toughness optimization, corrosion-resistant coating customization, high-cleanliness polishing, special |
| MOQ | Our factory's non-standard pipe caps adopt a zero-threshold flexible customization minimum order mode, specially designed for engineering replacement parts, technical modification single pieces, experimental small samples, and batch non-standard projects, with no industry fixed minimum order restriction. Supports ordering from 1 piece, fully satisfying customers' on-site emergency technical modification, equipment maintenance, experimental testing, sample submission for inspection, and sporadic special-shaped plugging replacement part needs, thoroughly solving the problem that manufacturers do not accept non-standard small pieces, high minimum order quantity, |
| Lead Time | The factory has established a dedicated customization production line and precision machining workshop for non-standard pipe fittings, with independent production scheduling, not competing for schedule with standard parts, efficiently responding to various urgent customization needs for non-standard plugging projects worldwide. For simple conventional special-shaped non-standard pipe caps, ordinary materials, and conventional size modification customization orders, the structure is simple and the process is mature, and the production cycle is controlled within 3–5 working days, which can quickly deliver emergency technical modification projects. |
| Packaging | Non-standard pipe caps adopt customized industrial-grade export protective packaging, differentiated packaging according to special-shaped structure, size and weight, curved surface shape, and cross-border transportation needs, preventing special-shaped parts from collision deformation, paint damage, and precision deviation during transportation. Small special-shaped non-standard pipe caps adopt multi-layer bubble film full wrapping, port plastic protective cap sealing, and independent hard cardboard box sub-packaging, isolating moisture, dust, and oxidation dampness, protecting the special-shaped precision structure from damage. Medium special-shaped non-standard heads adopt waterproof and rust-proof woven fabric overall wrapping, curved surface with custom anti-collision protective pads, and thickened corner protection, preventing special-shaped curved surfaces from collision paint loss, deformation, and precision shift. Large ultra-wide large-bore non-standard pipe caps adopt fumigated solid wood custom pallets, multi-point steel belt fixing, segmented reinforcement, and overall waterproof sealed wrapping, and the pallets comply with cross |
| Reference Price | Inquiry |
Non-standard pipe caps are customized per order. Quotation and production scheduling require prior confirmation of drawings or samples, diameter and wall thickness, material, medium and pressure temperature, quantity, and delivery requirements. Support 1-piece minimum order. For simple conventional irregular parts and ordinary material orders, the production cycle is about 3–5 working days. For complex structures or special materials, please contact us to confirm the cycle. Packaging is differentiated according to irregular structure, size and weight, and transportation method: small parts are fully wrapped in multiple layers of bubble film with port protective caps, in independent hard cartons; medium parts are wrapped in waterproof and rust-proof woven fabric, with anti-collision pads added to curved surfaces; large ultra-wide and large-diameter parts use fumigated solid wood custom pallets, multi-point steel belt fixing, and overall waterproof sealing. The pallets comply with cross-border customs quarantine standards. All products are individually labeled, marked with drawing number, project number, material, custom size, and batch information, and are accompanied by a custom quality inspection list and drawing comparison report.
Before sales, we provide non-standard working condition analysis, structural optimization design, force calculation, dimensional verification, and process plan matching to help reduce custom size deviations and installation mismatches. During sales, one-on-one order tracking synchronizes modeling, production, inspection, and finishing progress, and provides non-standard acceptance documents, drawing benchmarking files, and materials required for cross-border customs clearance. After sales, we provide an 18-month international warranty period. For leakage, deformation, sealing failure, and cracking problems caused by production dimensional deviations, process defects, or material mismatch, we will remake or reship free of charge and bear the logistics losses. The technical team responds 24 hours a day and can provide on-site installation guidance, structural adaptation debugging, and remote troubleshooting of working condition faults.
We support a minimum order of 1 piece, with no fixed minimum order threshold, suitable for scattered needs such as project spare parts, equipment maintenance, experimental small samples, and technical transformation of old pipelines.
Yes. You can provide physical samples or on-site measured dimensional data. We provide free 3D modeling and surveying replication, trying our best to restore the original non-standard structure.
Non-standard products undergo three-dimensional dimensional re-measurement, non-destructive testing, and pressure testing, and the precision, strength, and sealing performance are executed according to your requirements. Specific inspection items can be confirmed with us before placing an order.
Yes. We support ultra-high-pressure thickening, high-temperature resistance, low-temperature resistance, and corrosion-resistant special materials and process customization. Please provide the medium, pressure, temperature, and usage environment, and we will assist in confirming the material and structural solution.
For simple conventional special-shaped parts and orders of ordinary materials, the production cycle is about 3–5 working days. For orders with complex structures, special materials, or large batches, please contact us to confirm the production schedule.
Please provide drawings or samples, diameter and wall thickness, material, medium and pressure/temperature, quantity, and expected delivery time. The more complete the information, the faster we can provide an accurate quotation and process recommendations.
