Carbon steel branch pipe outlets are reinforced branch connection fittings specially used in industrial piping systems. Their core purpose is to open holes on the side wall of the main pipe for branch drainage, fully replacing traditional c
Inquiry

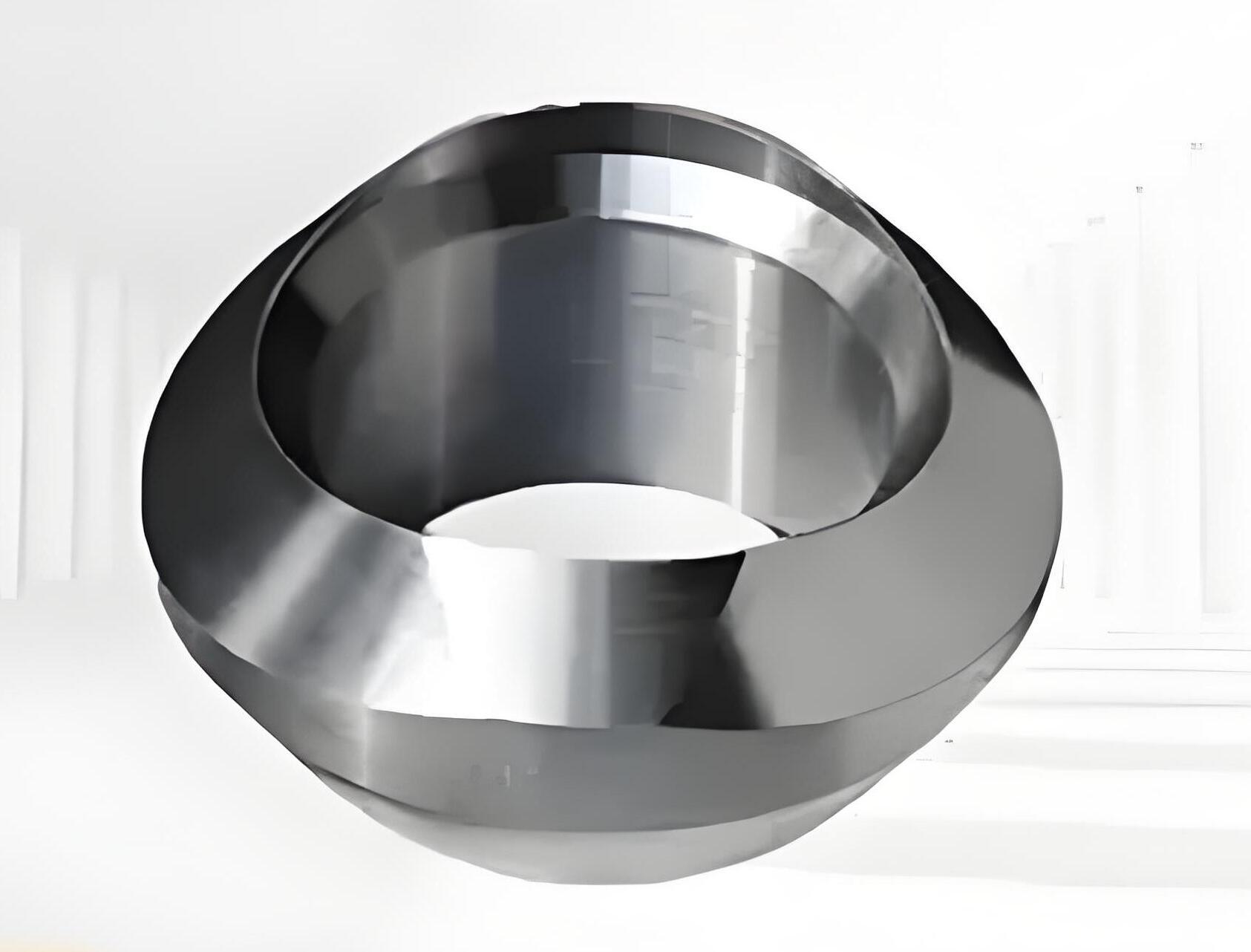

Carbon steel branch outlet (also called saddle, branch reinforcement pad) is used to open a hole on the side wall of the main pipe to lead out a branch, commonly found in petroleum, chemical, power and other piping systems. The product is forged from carbon steel and comes with a reinforcement structure. It can be welded on the outer wall of the main pipe to complete the branch, without cutting the entire main pipe, which helps shorten on-site construction time. Material options include A105, Q235B, A350 LF2, etc. Pressure coverage includes American standard Class150 to Class1500 and national standard PN10 to PN100. Main pipe adaptation is DN20 to DN800, branch pipe adaptation is DN15 to DN300, and connection methods include butt welding, socket welding and threading. It can be produced according to ASME, GB and other standards, and also supports customization of non-standard sizes and angles. Before purchasing, it is recommended to confirm the medium, temperature, pressure rating, connection method and required specifications. You are welcome to contact us for assistance with selection and quotation.
| Product Name | Carbon Steel Branch Outlet |
| Product Categories | Branch Outlet |
| Carbon steel branch outlet (branch table) core technical parameters meet compliance standards, all parameters strictly follow international industry standards. Material parameters | Mainstream materials are A105 forged carbon steel, Q235B plain carbon steel, A350 LF2 low-temperature carbon steel; the material's tensile strength, hardness, and toughness all meet ASTM national standard requirements. Pressure parameters: American standard pressure-bearing Class150-Class1500, national standard pressure-bearing PN10-PN100, suitable for medium and high pressure pipeline working conditions. Diameter parameters: main pipe suitable for DN20-DN800, branch pipe suitable for DN15-DN300, supporting conventional and reducing specifications. Connection parameters: includes three mainstream connection methods: butt welding BW, socket welding SW, and threaded NPT, suitable for different construction processes. Working temperature: conventional -29℃ to 425℃, low-temperature models can adapt to -46℃ low-temperature working conditions. Executive standards: ASM |
| Customization | Our factory has strong one-stop non-standard customization capabilities, and can fully meet customers' personalized and specialized carbon steel branch outlet procurement needs. Supports customization of special material ratios; in addition to conventional A105, Q235B, and LF2, special carbon steel modified materials can be customized according to working conditions, adapting to conventional high-temperature, low-temperature, and strong-corrosion working conditions. Supports non-standard size customization, and can customize products with non-conventional pipe diameters, reducing ratios, special wall thicknesses, and special pressure ratings, breaking through standard specification limits. Supports structural customization, and can customize 90°, 45°, and arbitrary-angle branch outlets, as well as customized embedded and thickened reinforcement special-structure products. Supports surface process customization, and can perform anti-rust blackening, painting, polishing, and anti-corrosion coating treatments. At the same time, according to customer drawings, samples, and project parameters |
| Minimum Order Quantity | Our factory's carbon steel branch outlets support flexible foreign trade minimum order models, maximizing adaptation to different customers' procurement needs, with no harsh minimum order threshold. The MOQ for conventional standard in-stock specifications is 1 piece, supporting customers' sample procurement, engineering small-sample testing, and drawing sample coordination needs, greatly reducing customers' initial cooperation costs. The MOQ for conventional bulk procurement is 5 pieces, suitable for small and medium traders' restocking, small |
| Lead Time | Our factory has a large-scale carbon steel branch outlet production workshop and sufficient in-stock inventory, with stable and efficient delivery times, meeting foreign trade customers' timeliness needs. For conventional standard models and regularly stocked products, after confirming payment and order information, shipment can be completed within 24-48 hours, rapidly responding to urgent engineering orders and restocking order needs. For small and medium batch orders (5-50 pieces), standard specification products |
| Packaging | Our factory provides an exclusive standardized packaging solution for foreign trade exports, ensuring products are undamaged, rust-free, and easy to clear customs throughout long-distance transportation. Each carbon steel branch outlet is first individually wrapped in waterproof and rust-proof plastic film, with built-in desiccant, isolating air and moisture, preventing oxidation, rusting, and surface stains during sea and land transportation. Small-sized products are uniformly packed into thickened export cartons; the cartons use five-layer hardened material, pressure-resistant and drop-resistant; large and heavy branch outlets are fixed and packed on solid wood pallets; the pallets comply with international fumigation standards, require no additional fumigation certificate, and adapt to global customs clearance requirements. All products are classified and neatly arranged, with gaps filled with shock-absorbing foam and pearl cotton, eliminating bumps, wear, and deformation during transportation. The outer packaging is affixed with Chinese-English product labels, marking product model, material |
| Reference Price | Inquiry |
We support flexible foreign trade minimum order models. The MOQ for regular standard in-stock specifications is 1 piece, suitable for sample procurement, engineering small sample testing, and drawing sample docking; the MOQ for regular bulk procurement is 5 pieces. For regular standard models and regularly stocked products, shipment can be completed within 24-48 hours after confirming payment and order information; for small and medium batch orders (5-50 pieces), please contact us to confirm the specific delivery time. In terms of packaging, individual products are first wrapped independently in waterproof and rust-proof plastic film with built-in desiccant, small specifications are packed into thickened export cartons, and large heavy products are fixed with solid wood pallets that meet international fumigation standards. The outer packaging is affixed with Chinese and English product labels indicating model, material, pressure rating, specifications, quantity, batch, and executive standards. The entire batch of goods is wrapped with waterproof packing film and reinforced with strapping, suitable for long-distance transportation by sea, air, and land, and supports full container and less-than-container shipment.
Before sales, we provide free technical consultation, specification selection, and working condition adaptation guidance to assist in matching product models. During sales, we synchronize production progress, inspection processes, and shipping logistics information in real time, support order changes and urgent demand docking, with one-on-one customer service follow-up throughout the entire process. After sales, we support warranty service. If products are damaged due to non-human causes or have quality defects, free returns, exchanges, or replacements can be provided, and we bear the corresponding logistics costs. We can provide free product installation guidance and working condition usage suggestions, and assist with customs clearance documents and acceptance docking for foreign trade orders. Long-term cooperative customers can enjoy benefits such as priority production scheduling, price discounts, and inventory reservation. If you need to confirm specific configurations or obtain a quotation, please contact us and provide information such as size, quantity, material, and pressure rating.
Yes. Branch outlets have a built-in reinforcement structure, with pressure-bearing capacity and stability superior to ordinary tees, and they do not require cutting the main pipe, making construction simpler. They are a commonly used alternative solution for pipeline branches.
We can provide bilingual documentation, test reports, and certificates of conformity to assist with customs clearance documentation and acceptance coordination. Please contact us to confirm the specific documents required based on the destination country's requirements.
This needs to be determined based on the pipeline medium, working temperature, design pressure, and connection method. Please provide the working condition parameters, and we will assist in matching materials such as A105, Q235B, or A350 LF2 and the corresponding Class or PN rating.
Yes. We can customize non-conventional pipe diameters, reducing size ratios, special wall thicknesses, special pressure ratings, and 90°, 45°, or any-angle branch outlets, and can also produce according to customer drawings or samples. Please provide specific dimensions and quantities so that we can assist with a quotation.
For regular standard models and regularly stocked products, shipment can be completed within 24-48 hours after payment and order information are confirmed. For small and medium batch orders (5-50 pieces), please contact us to confirm the lead time.
