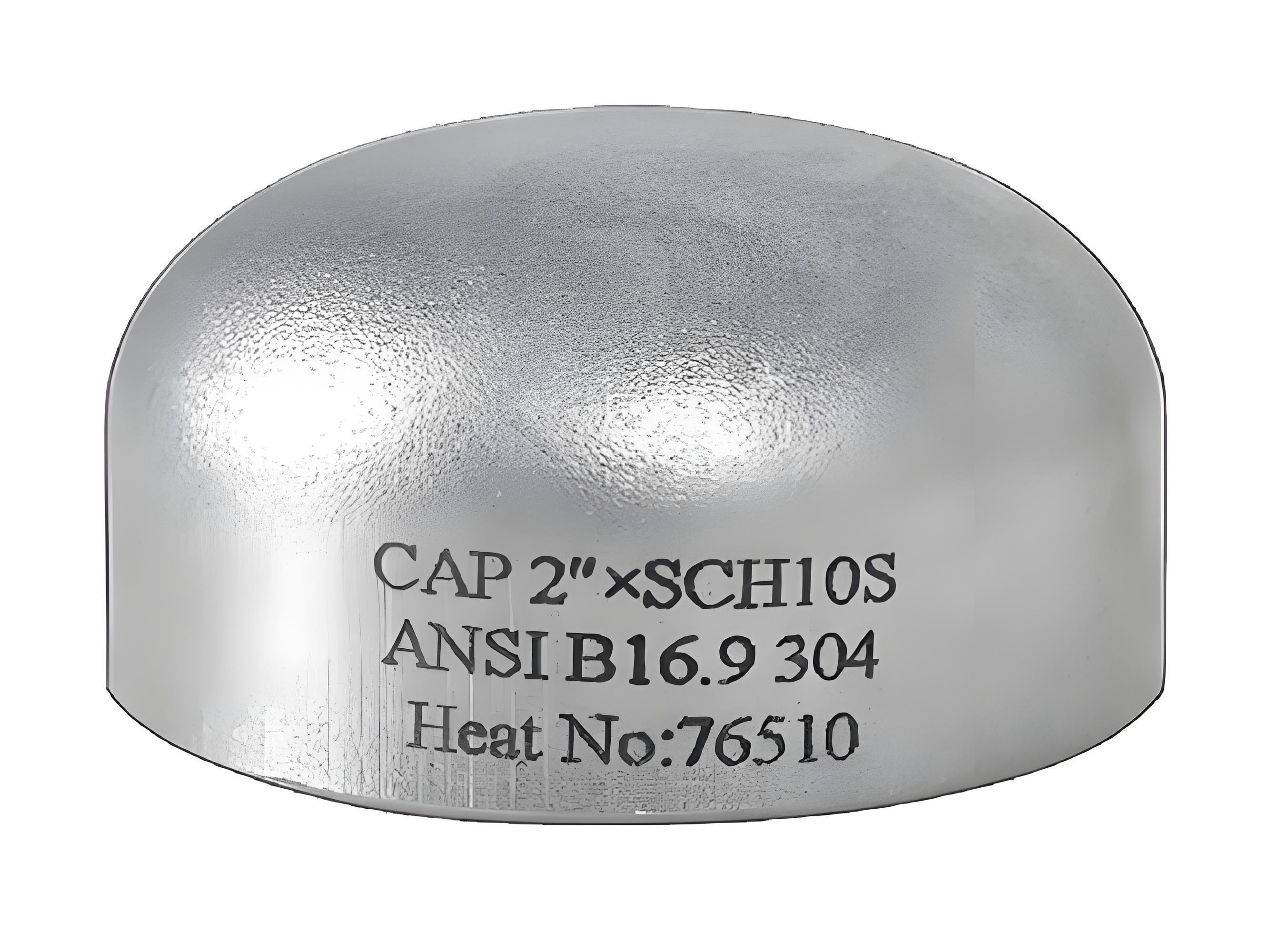

European standard pipe caps, also known as EN standard heads and European standard pipe end caps, are essential end-closure fittings for industrial pipeline systems in the European Union. They are primarily used for sealing EN standard pipe
Inquiry
European standard pipe caps are used to close EN standard pipeline ports, reserve standby interfaces, temporarily plug during pressure testing, and isolate pipeline media, preventing media leakage, impurity deposition, and inner wall corrosion. The products are manufactured according to EN 10253-1, EN 10253-2, and EN 10253-4, and are divided into Type A reduced-pressure type and Type B full-pressure type, and can be matched and connected with EN standard steel pipes, flanges, elbows, and tees. The production processes include integral hot-pressed seamless forming, steel plate rolled and welded forming, and forged precision finishing forming. Nominal diameter DN15–DN1200, wall thickness covers SCH10–SCH160 and XXS, pressure rating PN10–PN100. Carbon steel working temperature -20℃ to 480℃, stainless steel -196℃ to 650℃. We can assist in confirming the model and grade according to media, temperature, corrosive environment, and pressure-bearing requirements.
| Product Name | EN Standard Caps |
| Category | Caps |
| All technical parameters of this product strictly benchmark against EU EN standards, fully meeting the requirements of the entire process of European standard engineering design, construction, and acceptance. Executive standards | EN10253-1 general grade, EN10253-2 carbon steel special, EN10253-4 stainless steel special; product grade: Type A reducing type, Type B full pressure type. Specification range: DN15–DN1200; wall thickness grade: SCH10–SCH160, XXS full thickened series; pressure grade: PN10–PN100 European standard full pressure series. Mainstream European standard materials: carbon steel P235GH, P265GH, 16Mo3; stainless steel 1.4301, 1.4404, 1.4571 duplex steel. Working temperature: carbon steel -20℃ to 480℃, stainless steel -196℃ to 650℃, suitable for high and low temperature alternating working conditions. Mechanical properties, chemical composition |
| Customization | The factory possesses full-dimensional European standard upgrading and non-standard customization capabilities, and can undertake various high-end difficult plugging pipe fitting customization orders from the EU, adapting to the needs of European old pipeline renovation, high cleanliness, high pressure, and corrosive special working conditions. Supports European standard non-standard size customization, and can customize special DN diameters, extended straight pipe sections, thickened pressure-bearing walls, special arc heights, non-standard bevels, and special-shaped curved pipe caps as needed, adapting to European standard old equipment connection and pipeline technical transformation projects. Supports European standard special material customization, and can customize 16Mo3 heat-resistant alloy steel, 1.4571 highly corrosion-resistant stainless steel, duplex steel, and low-temperature special materials, adapting to European high-temperature, low-temperature, high salt spray, and strong corrosion harsh working conditions. Supports process upgrade customization, including internal and external precision polishing, high cleanliness passivation, special anti-corrosion spraying, overall |
| MOQ | Our factory's European standard pipe caps adopt a flexible cross-border minimum order model, adapting to diverse procurement needs such as EU sample submission for inspection, sporadic project replacement parts, batch complete set projects, and overseas long-term distribution. Conventional European standard in-stock specifications cover DN15–DN400 mainstream diameters, SCH40 conventional wall thickness, PN16/PN25 commonly used pressures, P265GH carbon steel, 1.4301 stainless |
| Lead Time | The factory has established an independent dedicated production line for European standard pipe fittings and export constant-temperature warehousing, with sufficient in-stock reserves of all-specification European standard pipe caps, efficiently responding to delivery needs of EU and European standard system global engineering projects. Commonly used EN standard specifications on the market, Type A/B conventional grades, and mainstream material European standard pipe caps are all in stock, and after order confirmation and payment, re-inspection, sorting, and standardization are completed within 24 hours |
| Packaging | European standard pipe caps adopt high-standard moisture-proof and anti-corrosion packaging dedicated for EU export, adapting to long-distance cross-border transportation by China-Europe sea freight, air freight, and rail freight, and complying with EU import warehousing and environmentally friendly packaging standards. Small DN15–DN100 specifications are fully wrapped in independent bubble film, with ports equipped with dust-proof and moisture-proof plastic protective caps, isolating water vapor, salt spray, and dust, individually packed into thickened export cartons, with the box body printed with English model, DN specification, SCH wall thickness, EN standard, AB grade, and batch information. Medium DN125–DN600 pipe caps are wrapped in double-layer waterproof and anti-corrosion woven fabric, with special anti-collision protective pads added to the curved surface, preventing the curved structure from bumping, paint loss, deformation, and oxidation. Large DN700–DN1200 heavy-duty pipe caps are fixed with fumigated solid wood pallets and overall steel straps |
| Reference Price | Inquiry |
We adopt a flexible cross-border minimum order model. Regular European standard in-stock specifications support single-piece ordering and mixed batches of multiple specifications and multiple grades, suitable for sample submission for inspection, sporadic replenishment, and batch complete-set projects. Commonly used EN standard specifications, Type A/B regular grades, and mainstream materials are kept in stock. After order confirmation and payment, re-inspection, sorting, and standardized processing are completed within 24 hours. Packaging is graded by specification: DN15–DN100 individually wrapped in bubble film with dust-proof protective caps and export cartons, DN125–DN600 double-layer waterproof woven fabric with anti-collision padding, DN700–DN1200 fumigated solid wood pallets reinforced with steel straps, compliant with EU customs quarantine requirements. All products are labeled by specification, grade, and material classification with batch traceability, and are accompanied by English certificates of conformity and material lists. For specific delivery times and logistics solutions, please contact us for confirmation.
We provide free pre-sales consultation on European standard specification selection, Type A/B grade matching, and PN pressure adaptation, and can assist in matching EN standard models based on medium, temperature, and corrosive environment. During sales, we synchronize production, quality inspection, packaging, and cross-border logistics information, and provide a full set of English European standard qualification documents and test reports required for customs clearance and project completion. After sales, we provide an 18-month international warranty. During the warranty period, for quality defects such as leakage, deformation, and corrosion caused by non-human installation errors, we provide free replacement or reshipment of products. Equipped with a 24-hour bilingual Chinese-English technical team, we can provide overseas on-site welding guidance, sealing process optimization, and remote troubleshooting. If you need customized non-standard sizes, special materials, or special processes, welcome to contact us to confirm the solution.
Products are manufactured according to EN 10253-1 general grade, EN 10253-2 carbon steel special purpose, and EN 10253-4 stainless steel special purpose standards. Dimensions, processes, and performance are controlled according to European standard requirements, and EU third-party re-inspection is supported.
Type A is a pressure-reducing type, suitable for conventional municipal, water supply and drainage, HVAC and other low-pressure pipeline networks; Type B is a full-pressure type with stronger pressure-bearing capacity, suitable for chemical, power station and high-pressure process main pipelines. When selecting a model, please provide the design pressure, and we will assist in confirming.
Conventional European standard in-stock specifications support a minimum order of a single piece, and also support mixed assembly of multiple specifications and multiple grades. For specific minimum order quantities and mixed batch rules, please contact us to confirm.
Yes. We support customization of non-standard DN diameters, extended straight pipe sections, thickened pressure-bearing walls, special arc heights, non-standard bevels, irregular curved surfaces, as well as 16Mo3, 1.4571, duplex steel, low-temperature special materials, etc. Please provide drawings or technical parameters, and we will assist in confirming the solution.
Common EN standard specifications, Type A/B conventional grades and mainstream materials are in stock. After order confirmation and payment, re-inspection, sorting and standardized processing will be completed within 24 hours. Packaging is graded according to specifications: small ones use export cartons, medium ones use waterproof woven fabric plus anti-collision padding, and large ones use fumigated solid wood pallets reinforced with steel straps, meeting EU customs quarantine requirements. For specific delivery times, please contact us to confirm.
We provide an 18-month international warranty. During the warranty period, for quality defects such as leakage, deformation, corrosion, etc. caused by non-human installation errors, we will provide free replacement or reshipment of products. Our Chinese-English bilingual technical team responds 24 hours a day and can provide overseas on-site welding guidance and remote troubleshooting.
