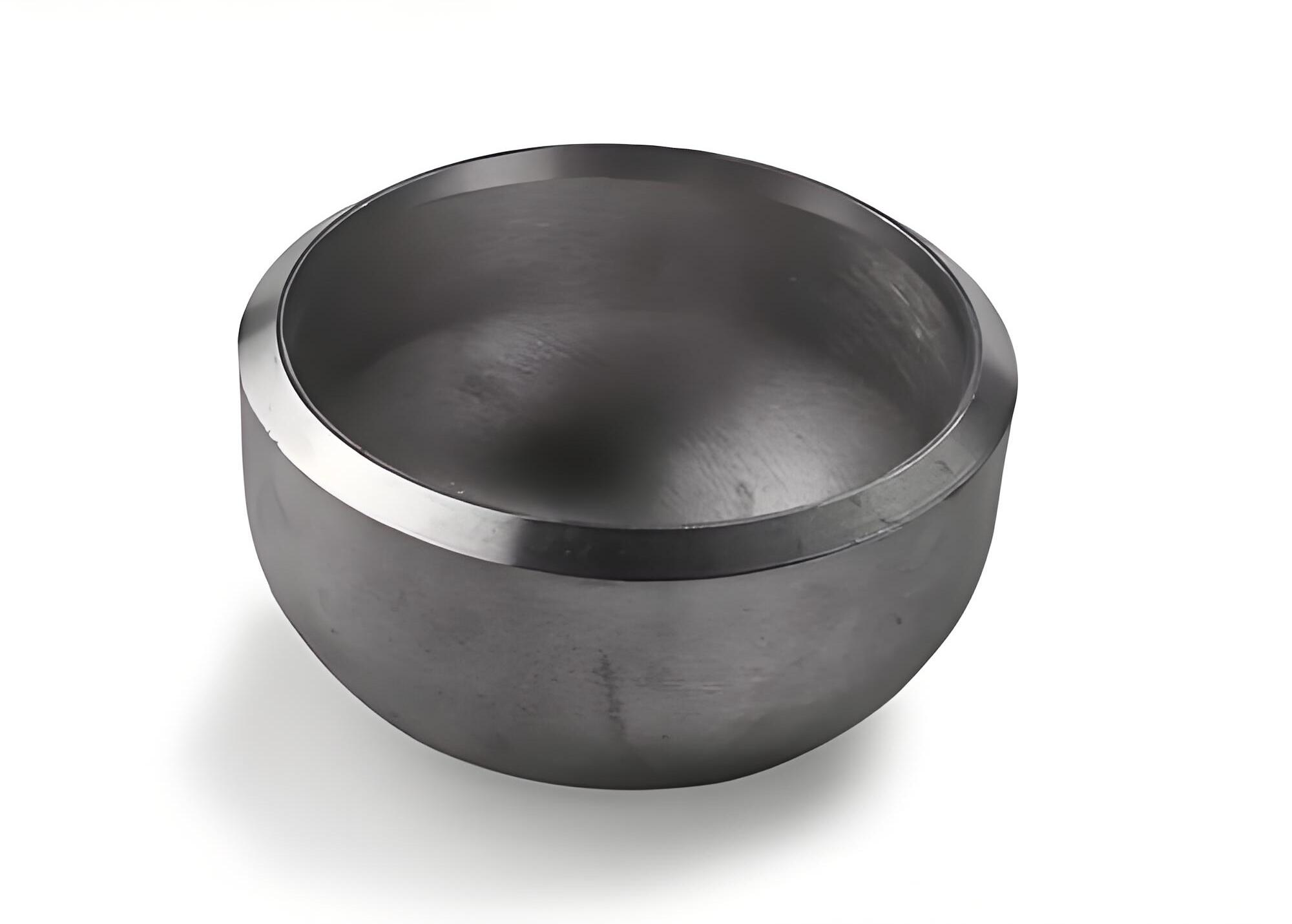

BW Butt Weld Pipe Cap

Overview

BW butt-weld pipe cap is a blocking pipe fitting connected to pipelines through bevel butt welding. BW means Butt-Weld. It is mainly used for closing pipeline ends, blocking reserved pipe openings, and sealing equipment ends. After welding is completed, it forms a permanent sealing structure. The BW butt-weld pipe caps we produce include elliptical, dished, spherical crown, flat bottom, conical, and other head structures. They are formed by integral spinning or forging, with one-piece forming and no spliced welds. Products are manufactured according to standards such as GB/T12459 and ASME B16.9. Materials cover carbon steel, stainless steel, alloy steel, duplex steel, etc. Nominal diameter is DN15–DN2000, and wall thickness is 2.5mm–60mm. Compared with threaded and socket-weld pipe caps, butt-weld pipe caps have stronger pressure and temperature resistance, making them suitable for medium- and high-pressure, high-temperature, and long-term operating industrial pipelines.

Key Features

First, one-piece forming. Integral spinning or forging is completed in one pass, with no spliced welds and no segmented welding, giving strong structural integrity and uniform pressure bearing. Second, regular bevels. Ports are uniformly machined with standard welding bevels, making on-site butt welding smooth, and the weld seam after welding is continuous and reliable in sealing. Third, wide specification coverage. DN15–DN2000, wall thickness 2.5mm–60mm, supporting high-pressure thickened customization. Fourth, flexible material matching. Carbon steel, stainless steel, alloy steel, duplex steel, etc. can be selected according to media and working conditions. Fifth, standard adaptability. Produced according to standards such as GB/T12459 and ASME B16.9, facilitating engineering acceptance at home and abroad. Sixth, support for non-standard customization. Caliber, wall thickness, material, bevel angle, and surface treatment can be customized according to drawings, samples, or equipment parameters.

Applications

BW butt-weld pipe caps are suitable for blocking medium- and high-pressure, high-temperature, long-term operating industrial pipelines. They are commonly used for end blocking of high-pressure process pipelines in oil extraction, natural gas transportation, coal chemical industry, electric power and thermal power, metallurgical manufacturing, and new energy plants; they are also used for project completion of urban heating main networks, high-pressure gas main networks, and large water supply and drainage pressure pipelines. On the equipment manufacturing side, they can be used for end closure of boiler auxiliary equipment, pressure vessels, buffer storage tanks, and heat exchange equipment. In addition, they can also be selected for occasions with pressure resistance and corrosion resistance requirements, such as ocean engineering, marine high-pressure pipelines, fine chemicals, pharmaceutical anti-corrosion piping, and high-pressure sewage transportation systems. Products can operate long-term in outdoor open-air, deeply buried underground, indoor enclosed, and other environments. For specific working condition selection, please contact us for confirmation.

Specifications

Nominal diameter DN15–DN2000, wall thickness 2.5mm–60mm, supporting conventional wall thickness and high-pressure thickened customization. Nominal pressure covers national standard PN10–PN64 and American standard Class150–Class900. Executive standards are GB/T12459, ASME B16.9, DIN2617, etc. Forming processes are integral CNC spinning and precision forging. Connection method is standard BW butt-weld connection. Materials include carbon steel, stainless steel, alloy steel, duplex steel, etc. Specific grades can be confirmed according to project requirements. Surface treatment options include sandblasted black paint, stainless steel pickling and passivation, mirror polishing, anti-corrosion plastic coating, etc. For detailed indicators such as temperature resistance range, roundness, perpendicularity, and wall thickness deviation, please contact us for confirmation.

Purchase & Delivery

We set flexible minimum order quantities for BW butt-weld pipe caps. For conventional standard caliber, conventional pressure, and conventional material in-stock models, the MOQ is as low as 1 piece, supporting sample inspection, engineering replenishment, and small-order trial sales. For national standard and American standard conventional in-stock standard models, quality inspection, packing, and warehouse dispatch are completed within 24–48 hours after payment confirmation; for conventional standard batch orders within 1000 pieces, production lead time is stable. Packaging uses special packaging for foreign trade export high-pressure pipe fittings. Small-caliber pipe fittings are individually wrapped in PE film and filled with shock-absorbing foam. Medium- and large-caliber pipe caps are equipped with anti-collision protective rings and dust-proof sealing caps. The entire batch of goods is stacked on fumigation-free solid wood pallets, fastened with strapping bands and wrapped with multiple layers of stretch film. Shipping marks, LOGO, specifications and models, and batch identification can be customized as needed. For specific delivery time and packaging requirements, please contact us for confirmation.

Service & Support

We provide pre-sales, in-sales, and after-sales support for B-end customers purchasing BW butt-weld pipe caps. Before sales, we can assist with working condition analysis, pressure rating selection, and material matching to help reduce selection errors. After sales, we provide welding process guidance and pipeline installation Q&A. After order shipment, full-process logistics tracking is provided to assist overseas customers with customs clearance and receipt. The product warranty period is 18 months. During the warranty period, quality problems caused by non-human damage can be repaired or replenished free of charge. If there are factory quality defects, dimensional deviations, material inconsistency, or process defects, free returns and exchanges and replacement shipment are supported. A dedicated foreign trade after-sales specialist responds online 7×24 hours. Welcome to contact us to confirm specific service content and customization solutions.
