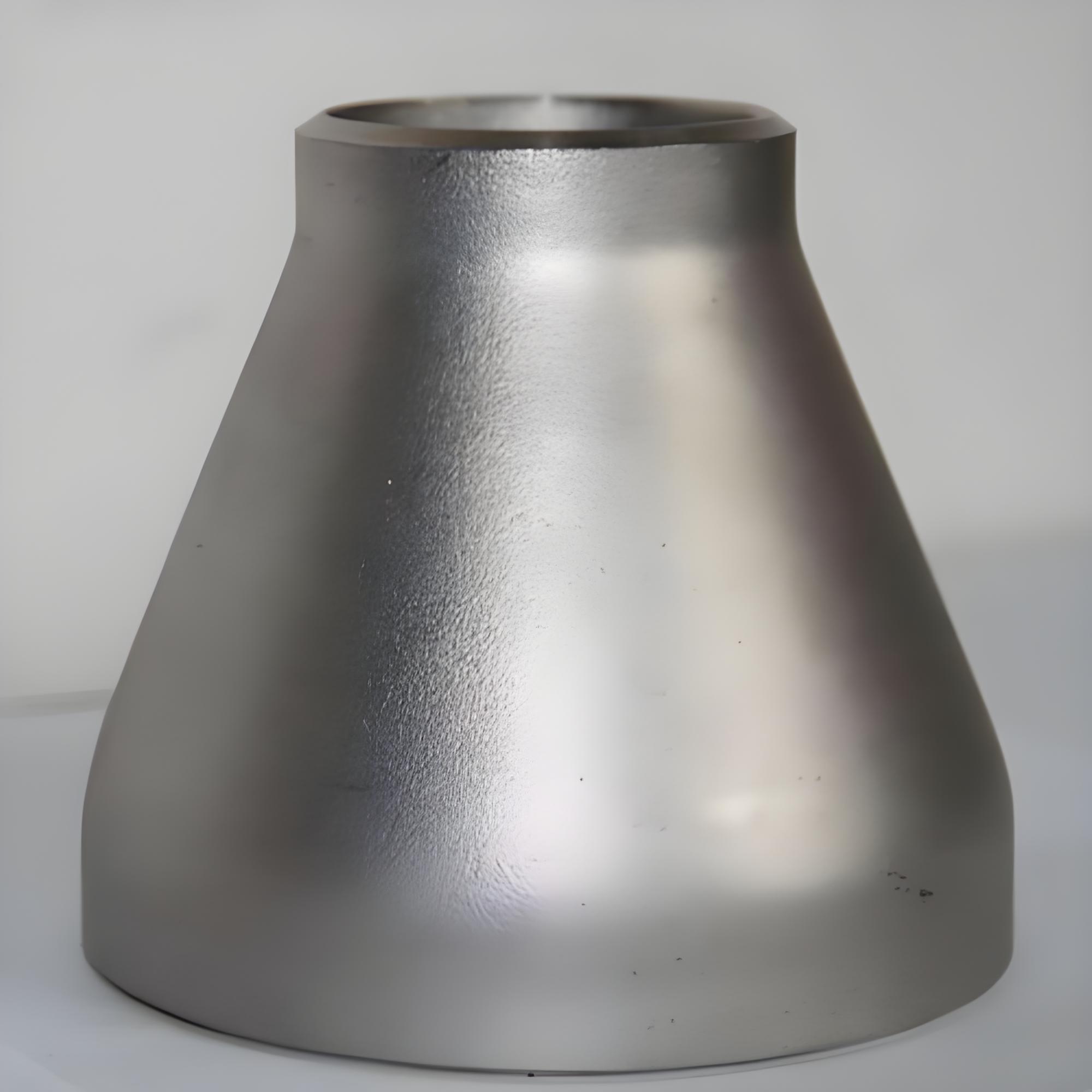

Forged Reducer
Forged reducers are special reducing fittings for small-diameter, ultra-high-pressure, precision process pipelines. They are mainly used for smooth transition and conversion between different pipe diameters in high-pressure small-pipe syste
Inquiry
- The greatest advantage of forged reducers is integral forging forming, no weld seams, high density, and ultra-high-pressure explosion-proof performance
- Dense and uniform material structure
- No internal defects such as sand holes, blowholes, or cracks
- Pressure resistance rating, impact resistance, and fatigue resistance far exceed those of ordinary pipe fittings
- Suitable for long-term ultra-high-pressure fluctuation working conditions. The product has high dimensional accuracy, small tolerances, and a compact structure
Detailed Introduction
The forged reducers we produce, also called forged reducing nipples or high-pressure forged reducing joints, in English Forged Reducer, are integrally formed using a one-piece forging process, with no welds or splicing. The product specifications are concentrated in the small-diameter range of DN6–DN100, the pressure ratings cover Class3000, Class6000, and Class9000, and the materials include A105 carbon steel, 304/316L stainless steel, F11/F22 alloy steel, and 2205/2507 duplex steel. Structurally, they are divided into concentric and eccentric types, and the connection methods support socket welding, threading, and flanging. They are mainly used in high-pressure small-pipe systems to achieve smooth transition between different pipe diameters, such as power plant instrument sampling tubes, petrochemical precision process branch pipes, and natural gas high-pressure auxiliary pipelines. If you are selecting models for a high-pressure small-pipe project, you can send us the specific diameter, pressure class, material, and connection method, and we will assist in confirming the configuration and provide a quotation.
- Integrally forged and formed, with no welds and no splicing, the metal structure is dense and uniform, avoiding internal defects such as porosity, sand holes, and cracks.
- The pressure ratings cover Class3000, Class6000, and Class9000, adapting to the reducing needs of high-pressure small-pipe systems.
- Concentric and eccentric structures are available; concentric is used for vertical steady-flow reducing, and eccentric is used for horizontal pipeline venting and drainage.
- Materials can be selected from A105 carbon steel, 304/316L stainless steel, F11/F22 alloy steel, and 2205/2507 duplex steel.
- Supports multiple connection methods including socket welding, threading, and flanging; threads can be customized with NPT and BSPT thread forms.
- Conventional national-standard and American-standard general specifications support a minimum order of 1 piece, suitable for emergency repairs, samples, and small-batch technical modifications.
| Product Name | Forged Reducer |
| Product Categories | Contact Us to Confirm |
| Customization | Our factory has comprehensive non-standard customization capability for high-pressure forged reducers, which can solve the installation problems where standard pipe fittings cannot adapt to special precision pipe networks, imported equipment, and overseas non-standard projects. We can customize non-standard reducing ratios, special overall lengths, unconventional tapers, and special wall thickness forged reducers as needed, adapting to old precision pipe network renovations, imported equipment connections, and niche high-pressure pipeline designs. We support customization of NPT and BSPT special thread forms, non-standard socket depths, special flange structures, and high-pressure-class reinforced products, adapting to various imported equipment and overseas engineering standards. Materials can be customized with special materials such as carbon steel, stainless steel, heat-resistant alloy steel, and duplex steel, adapting to harsh working conditions of high temperature, high pressure, strong corrosion, and marine salt spray. Surface processes can be customized with sandblasting and passivation, anti-rust treatment, special |
| MOQ | Our factory's forged reducers adopt a low-threshold flexible minimum order model, fully accommodating various procurement needs such as sample submission for inspection, equipment matching, sporadic replenishment, batch engineering projects, and full foreign trade orders. Conventional national standard and American standard general specifications, as well as conventional high-pressure-class stock products, support ordering from 1 piece with no minimum purchase limit, suitable for high-pressure instrument pipeline emergency repairs, equipment trial samples, pipe network fine-tuning, and small-scale technical modifications. |
| Lead Time | Our factory has professional forged pipe fitting production lines and precision pipe fitting warehousing; forged reducer production capacity is sufficient, inventory is stable, and delivery times are precise and controllable. For conventional stock standard specification orders, ultra-fast shipment within 24 hours after confirmation, meeting the needs of construction site urgent order replenishment, high-pressure pipe network emergency repairs, and expedited sample submission for inspection. For batch orders of mainstream general specifications on the market, the forging process is mature and the degree of automation is high. |
| Packaging | Forged reducers are precision high-pressure forged pipe fittings, using high-end precision protective export packaging, focusing on protecting the pipe body, connections, threads, and mating surfaces, eliminating bumps, scratches, deformation, and rust. Before leaving the factory, products are uniformly cleaned and polished to remove burrs, iron filings, and oil stains, and the surface is sprayed with high-quality anti-rust oil to prevent oxidation and rust during storage and transportation. Threads and socket positions are equipped with special dust-proof protective sleeves and protective plugs to precisely protect the precision mating structures. Small pieces are individually wrapped in independent bubble bags to avoid mutual friction damage; they are neatly classified and packed into thickened hard cardboard boxes, with layered shock absorption and pressure resistance. Large batches and full foreign trade orders are packed using solid wood pallets, sealed overall with stretch film and reinforced with steel straps, firm and stable, pressure-resistant and drop-resistant. The entire packaging is moisture-proof, dust-proof, rust-proof, and salt spray resistant, and can |
| Reference Price | Inquiry |
| Applications | Small-diameter, ultra-high pressure, precision instrument, sampling and venting, equipment auxiliary high-pressure small pipes within DN100 |
Applications
- Transition connection between different pipe diameters in high-pressure instrument sampling lines of power plants
- Reducing connections for precision process branch pipes in petrochemical plants and high-pressure auxiliary pipelines for natural gas
- Pipeline connections for high-temperature and high-pressure small pipes in coal chemical industry and fluid control systems of new energy equipment
- Installation of dense built-in pipelines in equipment, pipelines in narrow spaces of machine rooms, and enclosed instrument pipe galleries
- Renovation of old instrument pipelines, supporting installation of high-pressure equipment, and pipeline systems in explosion-proof workshops
Overview
Forged reducers are high-pressure small-pipe special reducer fittings produced by our integral high-temperature forging process, with no welds and no splicing, and belong to special equipment high-pressure forged accessories. The products strictly implement GB/T14383, ASME B16.11, and MSS SP-97 standards, with specifications concentrated in the DN6–DN100 small-diameter range, and pressure ratings covering Class3000, Class6000, and Class9000. They are mainly used for smooth transition between different pipe diameters in high-pressure small-pipe systems, stabilizing medium flow rate, balancing pipeline pressure, and protecting instrument equipment and downstream pipelines. The concentric structure is mostly used for vertical high-pressure risers, steam branch pipes, and instrument pressure-taking lines; the eccentric structure is suitable for horizontal high-pressure small pipes, with flat-top design to discharge accumulated gas and flat-bottom design to avoid impurity accumulation.
Key Features
Integral forging forming is the most prominent feature of this product. The metal structure is dense and uniform, with no internal defects such as sand holes, pores, or cracks, and its pressure resistance rating, impact resistance, and fatigue resistance are all superior to ordinary pipe fittings, allowing it to adapt to long-term pressure fluctuation working conditions. Dimensional accuracy is high and tolerances are small, enabling precise positioning and tight assembly in narrow and crowded pipeline spaces, with good sealing performance under high-pressure operation. In terms of materials, A105 carbon steel, 304/316L stainless steel, F11/F22 alloy steel, and 2205/2507 duplex steel are all optional, corresponding to different working conditions such as high temperature, high pressure, and corrosive media. Connection methods are flexible, with socket welding, threading, and flanging all supported, and threads can also be customized with NPT and BSPT thread forms.
Applications
This product is dedicated to pipeline scenarios involving small diameter, ultra-high pressure, narrow spaces, precision instruments, and explosion-proof working conditions. It is an exclusive reducer accessory for high-pressure forged small-pipe systems and cannot be replaced by ordinary stamped or welded pipe fittings. Typical scenarios include high-pressure instrument sampling pipelines in power plants, precision process branch pipes in petrochemical units, high-pressure auxiliary pipelines for natural gas, high-temperature and high-pressure small pipes in coal chemical industry, and fluid control systems for new energy equipment. The concentric structure is suitable for vertical high-pressure small-pipe flow-stabilizing reduction, while the eccentric structure solves the problems of accumulated gas, accumulated liquid, and impurity blockage in horizontal pipelines. It can be used for newly built precision high-pressure pipe networks, renovation of old instrument pipelines, supporting installation of high-pressure equipment, and pipeline systems in explosion-proof workshops. It should be noted that it is not suitable for large-diameter low-pressure main pipelines.
Specifications
The specification range is DN6–DN100, and pressure ratings cover Class3000, Class6000, and Class9000. Materials include A105 carbon steel, 304/316L stainless steel, F11/F22 alloy steel, and 2205/2507 duplex steel. Structures are divided into concentric and eccentric types, connection methods support socket welding, threading, and flanging, and threads can be customized with NPT and BSPT thread forms. It implements GB/T14383, ASME B16.11, and MSS SP-97 standards. For non-standard customization, non-standard reduction ratios, special overall lengths, unconventional tapers, and special wall thicknesses can be customized according to drawings, samples, or technical agreements. If you need to confirm inventory and delivery times for specific diameters, pressure classes, materials, or connection methods, please contact us, and we will assist in confirming according to your project requirements.
Purchasing & Delivery
We adopt a low-threshold flexible minimum order model. Conventional national standard and American standard general specifications and conventional high-pressure-class stock products support ordering from 1 piece, suitable for emergency repair of high-pressure instrument pipelines, equipment trial samples, pipe network fine-tuning, and small-scale technical modifications. Conventional stock standard specification orders are shipped within 24 hours after order confirmation; for batch orders of mainstream general specifications on the market, please contact us to confirm delivery times. In terms of packaging, products are uniformly cleaned and polished before leaving the factory to remove burrs, iron filings, and oil stains, and the surface is sprayed with anti-rust oil. Dust-proof protective sleeves or protective plugs are added at threaded and socket positions. Small items are individually wrapped in bubble bags and then packed into thickened hard cardboard boxes. Large-volume and foreign trade full orders are packed on solid wood pallets, sealed overall with stretch film, and reinforced with steel straps. Chinese-English foreign trade shipping marks, specification and pressure class labels, and batch quality inspection marks can be customized as needed.
Service & Support
In the pre-sales stage, we provide free high-pressure working condition analysis, pressure class selection, material matching, concentric/eccentric structure recommendation, and pipeline installation adaptation guidance to help you avoid specification mismatches and construction rework. During sales, dedicated personnel track the entire order and synchronize in real time the progress of forging production, precision machining, flaw detection and quality inspection, and packing and shipping, promptly responding to order changes, specification adjustments, and expedited shipment needs. All products undergo multi-layer precision inspection and flaw detection screening before leaving the factory. In terms of after-sales service, original quality problems are unconditionally returned or exchanged. For issues such as material mismatch, structural defects, and substandard precision, we bear the round-trip freight and all losses, with free replacement and full compensation. We also provide lifelong technical consultation for high-pressure small-pipe installation, welding adaptation, and troubleshooting.
FAQ
What pipelines are forged reducers suitable for?
They are dedicated to small-diameter, ultra-high pressure, precision instrument, sampling and venting, and equipment auxiliary high-pressure small pipes within DN100, suitable for electric power, petrochemical, and chemical explosion-proof precision working conditions, and not suitable for large-diameter low-pressure main pipelines.
What is the difference between forged reducers and ordinary reducers?
Forged reducers are integrally forged and formed, with no welds, high density, high pressure rating, and pressure-resistant and explosion-proof performance, making them suitable for ultra-high-pressure precision small pipes; ordinary pressed or welded pipe fittings have lower pressure ratings and are not suitable for such working conditions.
How do you choose between concentric and eccentric forged reducers?
Concentric structures are mostly used for vertical high-pressure risers, steam branch pipes, and instrument pressure tapping lines, with uniform flow channels and low pressure loss; eccentric structures are suitable for horizontal high-pressure small pipes, with the flat top allowing accumulated gas in the pipe to be discharged and the flat bottom helping avoid impurity accumulation. You can tell us the pipeline routing and medium conditions, and we will assist in confirming.
Can you customize non-standard sizes or special thread profiles?
Yes. We support customization according to drawings, samples, foreign-language parameters, or technical agreements for non-standard reducing ratios, special overall lengths, unconventional tapers, special wall thicknesses, as well as NPT and BSPT special thread profiles, non-standard socket depths, and special flange structures.
What are the minimum order quantity and delivery time?
Conventional national standard, American standard general specifications, and conventional high-pressure-rating in-stock products support a minimum order of 1 piece. Orders for conventional in-stock standard specifications are shipped within 24 hours after confirmation; for batch orders, please contact us to confirm the delivery time.
