What standards do U.S. standard elbows implement?
Conventional butt welding elbows comply with ASME B16.9, carbon steel pipes match ASME B36.10M, stainless steel matches ASME B36.19M, and high-strength pipe fittings refer to MSS SP-75.

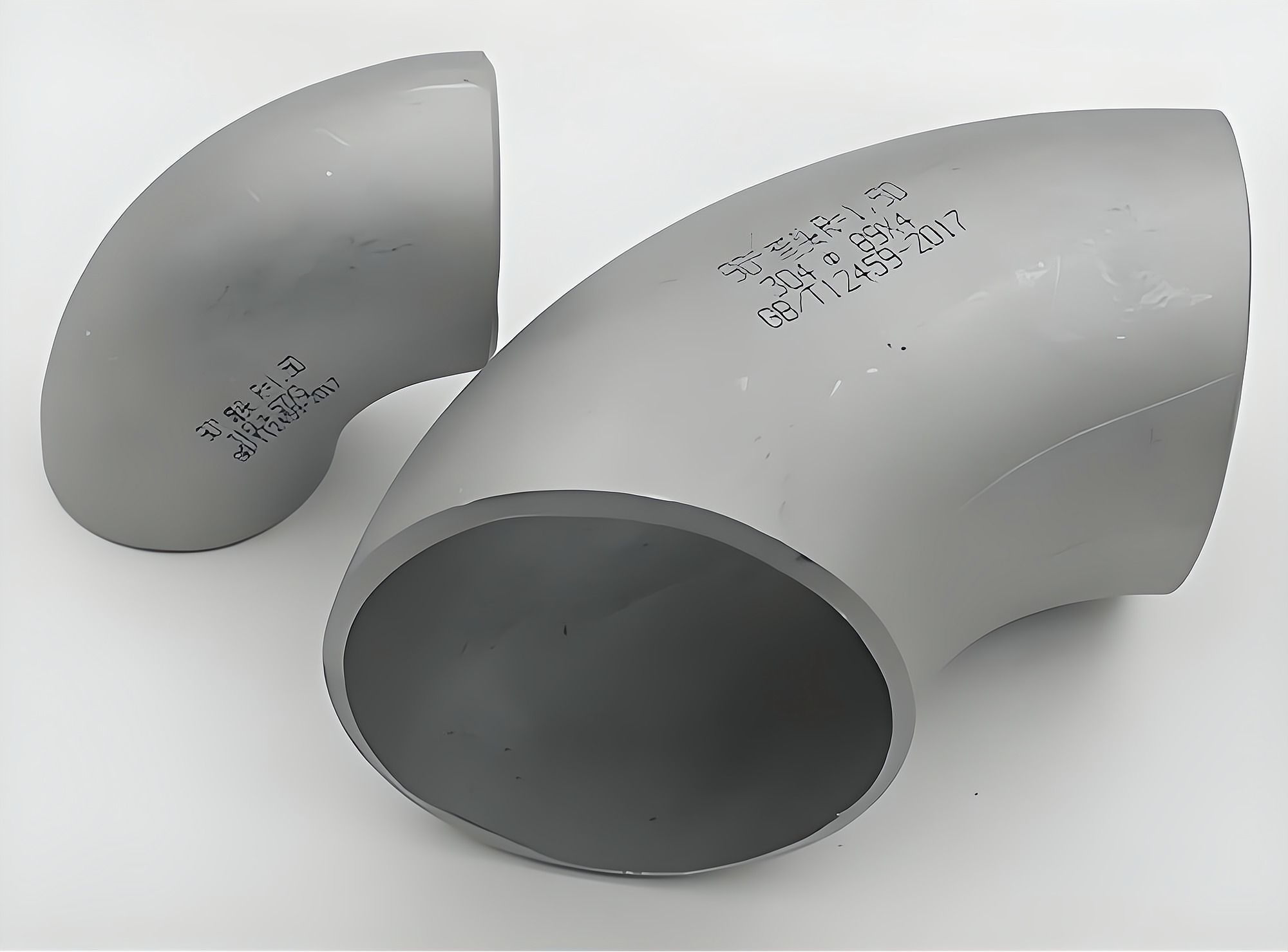

American standard elbow
American standard elbows are core direction-changing pressure-bearing pipe fittings in international American standard pressure piping systems. They are mainly used in oil, natural gas, chemical, power station, and LNG cryogenic engineering
Reference Price
Inquiry
- American standard elbows possess four core advantages for foreign trade: universal international standards, stable pressure-bearing performance through precision manufacturing, adaptation to all working conditions, and worry-free overseas a
- making them the best-selling category of pipes and pipe fittings for cross-border export. First
- strictly follow the authoritative American standard systems of ASME B16.9, B36.10, and B36.19
- inch dimensions, Sch wall thickness, bevel standards, and material grades fully align with international engineering drawings
- Globally compatible with US-standard projects
Detailed Introduction
American standard elbows are pressure-bearing pipe fittings used in American standard pressure piping systems to change the direction of media flow. They are formed by forging or seamless pushing processes, with dimensions in inches, and bevels, tolerances, non-destructive testing, and heat treatment are executed in accordance with American standard specifications. Conventional butt welding elbows comply with ASME B16.9, carbon steel pipes match ASME B36.10M, stainless steel matches ASME B36.19M, and high-strength pipe fittings refer to MSS SP-75. The specification system covers 1/2 inch to 48 inches, angles include 45°, 90°, 180°, bending radii include 1.5D long radius and 1.0D short radius, and wall thickness grades include Sch10, Sch40, Sch80, Sch120, Sch160, and XXS. Mainstream materials include A234 WPB carbon steel, A403 WP304/WP316L stainless steel, A234 WP11/WP22 chrome-molybdenum alloy steel, and S32205 duplex steel. Products are exported to overseas engineering projects in North America, the Middle East, Southeast Asia, etc., and can be supplied as complete sets with American standard flanges, American standard branch outlets, American standard tees, and other pipe fittings. Regular stock specifications have a minimum order of 1 piece, and packaging and shipping can be completed within 24 to 48 hours after order confirmation.
- Complies with ASME B16.9, B36.10M, B36.19M, and MSS SP-75 standards, with inch dimensions, Sch wall thickness, bevels, and material grades aligned with international engineering drawings, suitable for selection in genuine American standard EPC projects.
- Specifications cover 1/2 inch to 48 inches, angles include 45°, 90°, 180°, bending radii include 1.5D long radius and 1.0D short radius, and wall thickness ranges from Sch10 to XXS, and can be matched according to project drawings.
- Materials cover A234 WPB carbon steel, A403 WP304/WP316L stainless steel, A234 WP11/WP22 chrome-molybdenum alloy steel, and S32205 duplex steel, and can correspond to material selection requirements for different media and working conditions.
- Formed by forging or seamless pushing processes, the metallographic structure is dense and uniform, which can reduce fluid impact and stress concentration problems at pipeline turning positions.
- Supports customization of non-standard angles, non-standard curvatures, non-standard wall thicknesses, special materials, large-diameter rolled forming, and special bevels, and can reproduce processes one-to-one according to English drawings.
- Regular stock specifications have a minimum order of 1 piece. Common models of 1/2 inch to 12 inch 90° long radius Sch40 carbon steel and stainless steel are in sufficient stock, and packaging and shipping can be completed within 24 to 48 hours after order confirmation.
- Export packaging is executed according to ocean shipping and overseas acceptance requirements. Carbon steel is sprayed with anti-rust oil or anti-rust paint, stainless steel is pickled and passivated and then film-covered, and outer packaging can be customized with English shipping marks, LOGO, and batch information.
| Product Name | ASME Elbow |
| Category | Elbow |
| All technical parameters of American standard elbows fully benchmark against the ASME American National Standards, with precise parameters, international universality, and global exemption from inspection. Executive standards | ASME B16.9 butt-welded pipe fitting standard, ASME B36.10M carbon steel pipe system, ASME B36.19M stainless steel pipe system, MSS SP-75 high-strength pipe fitting standard. Specification system: inch-based diameters 1/2"–48", conventional angles 45°, 90°, 180°; bending radii 1.5D long radius, 1.0D short radius. Wall thickness grades: Sch10, Sch40, Sch80, Sch120, Sch160, XXS ultra-high-pressure thickened wall thickness. Mainstream materials: A234 WPB carbon steel, A403 WP304/WP316L stainless steel, A234 WP11/WP22 chrome-molybdenum alloy steel, S32205 duplex steel. Connection |
| Customization | Our factory possesses deep non-standard customization capability for American standard elbows across all categories and all specifications, strictly undertaking various overseas special drawing and special working condition customization requirements in accordance with the ASME American standard system. Supports non-standard angle customization, capable of producing 22.5°, 30°, 60° and other unconventional angle elbows as well as special curved bends; supports non-standard curvature customization, with extended radius, ultra-short radius, and special arc length custom products all precisely deliverable. Supports full wall thickness non-standard customization, including non-standard thickening, ultra-high-pressure XXS customization, and gradual wall thickness special processes. Supports customization across the entire series of American standard high-end materials, with A234 series carbon steel, A403 series stainless steel, A234 WP11/WP22 alloy steel, duplex steel, nickel-based alloys and other high corrosion-resistant and high temperature-resistant materials all customizable. Sup |
| MOQ | American standard elbows adopt a flexible and lenient foreign trade minimum order mechanism, fully accommodating the diversified needs of overseas sample submission for inspection, small-order replenishment, scattered procurement, and large-volume engineering centralized procurement, with no excessively high threshold. Market-common conventional inch-based specifications, Sch40 ordinary wall thickness, A234 WPB carbon steel, 304 stainless steel standard in-stock elbows, MOQ as low as 1 piece, supporting overseas customer project trial |
| Lead Time | Our factory possesses dedicated automated production lines for American standard pipe fittings and large-scale foreign trade standing inventory, ensuring efficient and stable delivery of global American standard orders. 1/2 inch–12 inch conventional 90° long radius Sch40 American standard elbows, carbon steel and stainless steel general best-selling models are in ample stock, and packaging and shipment can be completed within 24–48 hours after order confirmation, rapidly responding to overseas engineering emergency repairs and urgent order replenishment |
| Packaging | American standard elbows adopt international foreign trade dedicated standardized export packaging, accommodating ocean shipping, multi-country customs inspection, and overseas engineering high-end acceptance standards, completely preventing bumps, bevel damage, rust, and deformation throughout the entire process. Small-diameter precision elbows uniformly use thickened plastic protective caps to seal pipe ends, preventing debris entry and bevel bumps, with the exterior wrapped in multiple layers of waterproof stretch film and bubble film, achieving all-round shockproof and moisture-proof protection. Small and medium specifications are packed in batches into thickened export cartons, with categorized labeling of specifications, materials, standards, and batches, avoiding mixed loading and confusion. Large-diameter, thick-wall, high-pressure American standard elbows use multi-layer rainproof and rust-proof wrapping film for overall wrapping, with reinforced protection at pipe ends, and the bottom uses fumigation-free solid wood pallets for fixation, with overall steel strapping for tightening and reinforcement, preventing displacement and deformation from ocean shipping turbulence. Carbon steel products are sprayed with anti-rust oil |
| Reference Price | Inquiry |
Applications
- Overseas refineries, chemical plant process pipelines, reactor connection pipes, and corrosive medium transport pipeline networks require erosion-resistant and corrosion-resistant directional pipe fittings.
- North American thermal power plants, overseas cogeneration projects, high-pressure steam main pipelines, and high-temperature waste heat recovery pipelines need to withstand long-term high-temperature and high-pressure continuous loads.
- Middle East oilfield gathering and transportation pipelines, cross-border long-distance natural gas transmission pipeline networks, and offshore platform process pipelines require resistance to deformation, resistance to impact, and sealing performance.
- LNG liquefaction engineering, air separation equipment, and low-temperature refrigerant transportation pipelines require elbows with good low-temperature toughness and resistance to brittle fracture.
- Internationally standardized factory circulating water pipes, process fluid pipelines, and high-pressure firefighting pipe networks require pipe fittings that comply with ASME standards.
- Foreign trade traders, cross-border B2B platform distributors, and overseas warehouse stockists carry out large-volume spot stockpiling, mixed-batch group buying, or project supporting supply.
- Overseas pipeline design institutes and EPC drawing selection personnel carry out standardized selection according to inch specifications and the Sch wall thickness system.
Purchasing & Delivery
Conventional spot specifications have a minimum order quantity of 1 piece, and support overseas sample submission for inspection, small-order supplementary pieces, and engineering centralized procurement. 1/2 inch to 12 inch 90° long radius Sch40 carbon steel and stainless steel commonly used models are sufficiently stocked, and packaging and shipping can be completed within 24 to 48 hours after order confirmation. For the delivery time of other specifications and customized products, please contact us for confirmation. Packaging is carried out according to ocean shipping and overseas acceptance requirements. Carbon steel products are sprayed with anti-rust oil or anti-rust paint, and stainless steel products are pickled and passivated and then film-coated. The outer packaging can be customized with English shipping marks, LOGO, and batch information. If you need a quotation, please provide specifications, angle, wall thickness, material, and quantity, and we will assist with confirmation.
Service & Support
Before-sales provides U.S. standard working condition analysis, inch specification selection, Sch wall thickness pressure matching, and standard interpretation consultation. During sales, foreign trade specialists follow up on the order, synchronize production processes, heat treatment progress, non-destructive testing results, export packaging, and cross-border logistics information, and support fine-tuning of order parameters, expedited scheduling, supplementary printing of English qualifications, and batch traceability inquiries. After-sales service is carried out according to international standard warranty service. Under compliant working conditions, products with non-human-caused quality defects support free return and exchange and replacement, and the corresponding cross-border logistics costs are borne. At the same time, U.S. standard pipeline welding process guidance, overseas pipeline installation specifications, and anti-corrosion maintenance solutions are provided to assist with overseas engineering inspection applications, third-party testing, and customs clearance issues. Long-term customers can enjoy inventory reservation, priority scheduling, and exclusive bottom-line prices for foreign trade.
FAQ
Can American standard elbows be interchangeable with national standard and European standard ones?
The dimensional system, wall thickness grade, material grade, and tolerance system are different. For international American standard EPC projects, mixed use is not recommended, and selection should be made according to ASME standards.
Does the product support third-party inspection?
We support spectral testing, non-destructive testing, hydrostatic testing, and mechanical property re-inspection, and can cooperate with overseas third-party inspection declarations.
What are the conventional minimum order quantity and delivery time?
Conventional in-stock specifications have a minimum order quantity of 1 piece. For 1/2 inch to 12 inch 90° long radius Sch40 carbon steel and stainless steel commonly used models, packaging and shipping are completed within 24 to 48 hours after order confirmation. For other specifications and customized products, please contact us for confirmation.
Can non-standard angles or special materials be customized?
Yes. We support non-standard angles such as 22.5°, 30°, 60°, long radius, ultra-short radius, non-standard thickened wall, XXS ultra-high pressure, gradual wall thickness, as well as material customization including A234 series carbon steel, A403 series stainless steel, A234 WP11/WP22 alloy steel, duplex steel, and nickel-based alloys. Please provide English drawings or specific parameters, and we will assist in confirming.
Can export packaging and shipping marks be customized?
Yes. The outer packaging can be customized with English shipping marks, LOGO, and batch information. Carbon steel products are coated with anti-rust oil or anti-rust paint, while stainless steel products are pickled and passivated and then film-covered. Packaging is executed in accordance with ocean shipping and overseas acceptance requirements.
