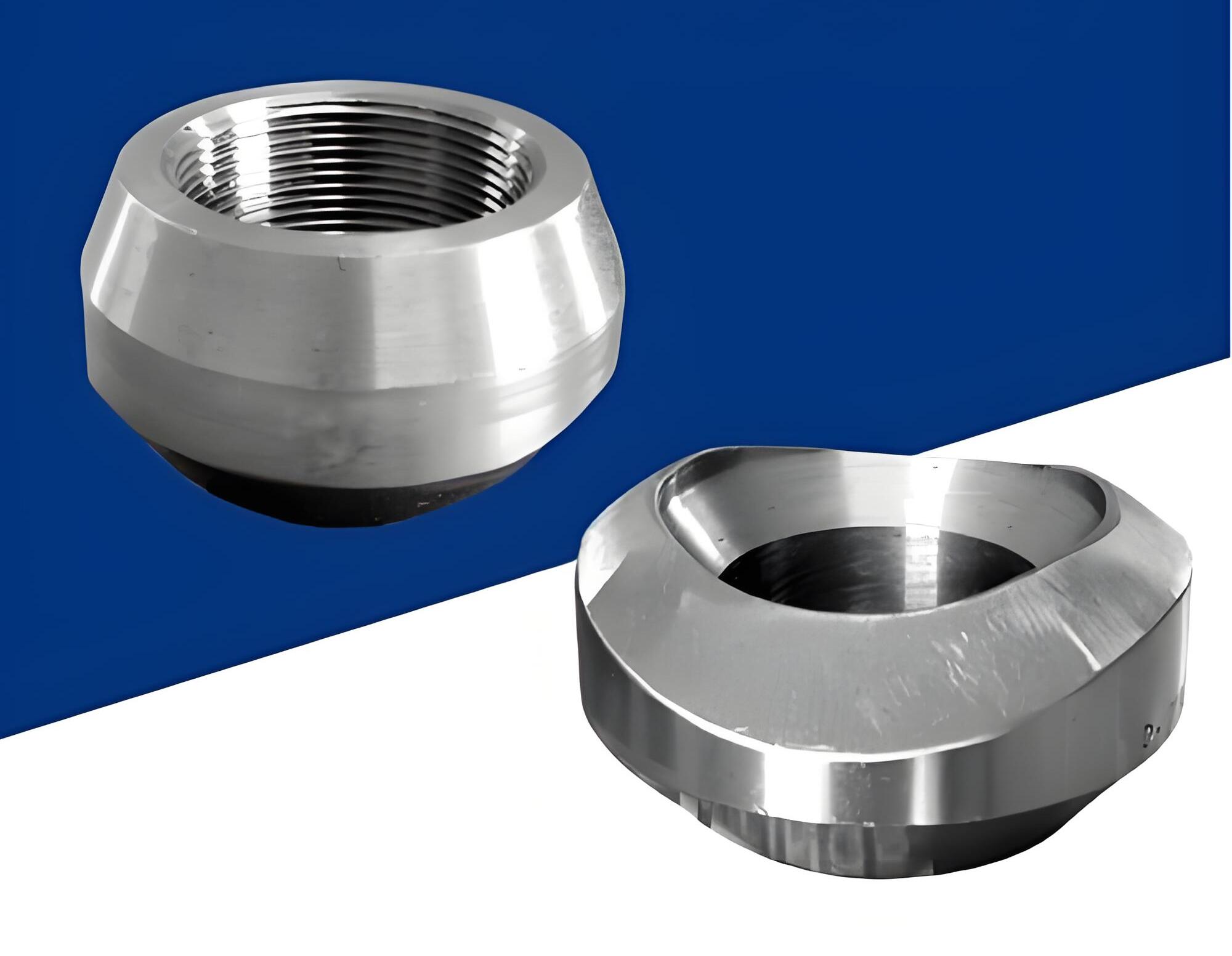

The national standard branch outlet is a dedicated integrated forged reinforced branch pipe fitting for domestic pressure piping systems. It is mainly used for non-cut-off branch extraction from the side wall of the main pipe in industrial
Inquiry
The national standard branch pipe outlet shall comply with the current national standard GB/T19326-2022 "Forged Branch Pipe Fittings", which is a modified adoption of the MSS SP-97 international specification, and is an integrated reinforced forged branch pipe fitting specially used for domestic pressure pipelines. The product is integrally die-forged from round steel forging blanks, and is manufactured through forging, heat treatment, non-destructive testing, and CNC precision machining. It does not require cutting the main pipe, and is directly welded to the outer wall of the main pipe to achieve branch pipe extraction. It relies on the reinforcement structure built into the body to disperse the stress at the opening position, reducing the risk of cracking and leakage under high-pressure working conditions. The connection structures cover butt welding, socket welding, thread, 45° miter, elbow type, extended type, and flange type. The nominal diameter covers DN6-DN100. The materials cover carbon steel, stainless steel, alloy steel, low-temperature steel, and duplex steel. A full set of national standard factory documents can be issued. Standard stock and non-standard customization according to drawings are supported. It is suitable for pipeline branch systems of domestic industrial pipelines and domestic EPC overseas general contracting projects.
| Product Name | GB Branch Outlet |
| Product Categories | Branch Outlet |
| All technical parameters of the national standard branch outlet strictly comply with the GB/T19326-2022 national standard, with standardized parameters, precise tolerances, and high engineering adaptability. Standard system | Implements the latest national standard GB/T19326-2022, replacing the old 2012 standard, and is compatible with the MSS SP-97 international general specification. Structural models: WOL butt weld, SOL socket weld, TOL threaded, FOL flange, 45° lateral, extended type, thin-wall type, full range of categories. Pressure ratings: 3000LB, 6000LB, 9000LB national standard adapted high-pressure ratings, suitable for medium and high pressure piping working conditions. Diameter specifications: DN6-DN100, supporting reducing opening ratio, wall thickness SCH40 to XXS full coverage. Applicable materials: carbon steel, stainless steel, alloy steel, low-temperature steel, duplex steel, nickel-based alloy, the full range of national standard forged materials. Working temperature: -46℃ to 650℃, suitable for normal temperature, low |
| Customization | Our factory has deep customization capability for full-specification national standard branch outlets, strictly implementing non-standard requirements in accordance with the new GB/T19326-2022 regulations, adapting to various special engineering drawings and complex working conditions. Supports customization of the full range of national standard materials, covering 20# carbon steel, 16Mn low-temperature steel, 15CrMo alloy steel, 304/316 stainless steel, 2205 duplex steel, nickel-based alloy and other national standard forged materials. Supports non-standard size customization, capable of processing non-conventional pipe diameters, special reducing ratios, thickened wall thickness, extended pipe sections, thin-wall special structure branch outlet seats. Supports national standard special structure customization, non-standard angles, embedded reinforcement, special flange specifications, equipment-specific extended branch outlets. Supports process customization, national standard heat treatment quenching and tempering, sandblasting and rust removal, pickling and passivation |
| MOQ | National standard branch outlets adopt a flexible minimum order model for domestic engineering, suitable for various needs such as inspection submission, supplementary orders, batch centralized procurement, and bidding projects, with no strict threshold restrictions. The MOQ for conventional national standard in-stock standard models is as low as 1 piece, supporting project inspection submission, sample retention, drawing test pieces, and engineering sporadic pipe replenishment, greatly solving the difficult problems of missing parts and urgent supplementary orders at construction sites. Conventional small and medium batch site replenishment, project |
| Lead Time | Our factory relies on standardized national standard pipe fitting production lines and sufficient standing stock inventory to ensure stable and efficient delivery for domestic engineering and foreign trade EPC projects. Common national standard conventional models and carbon steel and stainless steel standard specifications are sufficiently stocked; after order confirmation, fast shipment within 24-48 hours, rapidly responding to site urgent orders, rush repair material replenishment, and inspection sample needs. Small and medium batches of 5-30 pieces standard |
| Packaging | National standard branch outlets adopt a dual model of domestic engineering standard packaging + general export foreign trade packaging, taking into account both domestic project supply and EPC export sea freight needs, ensuring goods remain intact throughout. Single products are individually wrapped with protective film to isolate dust, water stains, and scratches, protecting the precision of bevels, threads, and machined surfaces. Small standard specifications are neatly packed into thickened five-layer industrial cartons, with pearl cotton and foam cushioning materials filled inside to prevent collision and deformation during transportation; large heavy-duty branch outlets are fixed and packed on solid wood pallets, firmly tied, with stable structure, suitable for long-distance logistics and full-vehicle shipment. All products are placed in categories strictly according to model, material, specification, and pressure rating, labeled for distinction, eliminating mixed or wrong goods. The outer packaging is affixed with national standard product information labels, marked with the implementing standard GB/T |
| Reference Price | Inquiry |
MOQ for conventional national standard stock standard models is as low as 1 piece, supporting project inspection submission, sample retention, drawing test pieces, and minor project pipeline supplement. General national standard conventional models and standard specifications of carbon steel and stainless steel are in ample stock, shipping within 24-48 hours after order confirmation. For MOQ and lead time of small-to-medium batches and non-standard custom products, please contact us for confirmation. Packaging adopts dual modes of domestic engineering standard and export foreign trade general: individual products are wrapped with protective film, small pieces are packed in thickened five-layer industrial cartons with pearl cotton and foam cushioning materials, and large heavy-duty branch outlets are fixed and packed with solid wood pallets. Product information labels are affixed to the outer packaging, indicating executive standards, product codes, materials, specifications, batches, and quantities. Export orders are additionally wrapped with waterproof stretch film and anti-rust film to meet moisture-proof and salt-spray-proof requirements for sea transportation.
Pre-sales provides national standard selection guidance, drawing parameter verification, and working condition material matching services, assisting in avoiding selection errors and standard non-compliance issues. During sales, one-on-one order tracking, synchronizing production, quality inspection, document issuance, and shipping logistics progress, supporting order expediting, document supplementation, and sample supplementation. After-sales provides warranty services; under national standard working conditions, non-human quality issues can be returned or exchanged for free, products reshipped, and corresponding logistics costs borne. Free national standard installation guidance, welding process recommendations, and pipeline construction specification consultation are provided. Assistance can be provided in organizing bidding documents, inspection submission and filing documents, and project acceptance ledgers. Long-term cooperative customers enjoy benefits such as inventory reservation, priority production scheduling, exclusive project pricing, and free document support.
Implement the current GB/T19326-2022 "Forged Branch Outlet" national standard, officially implemented on February 1, 2023, replacing the old 2012 standard, modified and adopted from MSS SP-97 international specification.
National standard branch outlets are suitable for domestic special equipment acceptance and bidding submission, with model codes uniformly designated as WOL/SOL/TOL, etc., and dimensional tolerances and inspection standards comply with domestic regulations. American standard products are mainly suitable for overseas projects.
We can issue a full set of national standard inspection documents, non-destructive testing reports, and material certificates, supporting submission for inspection, filing, and acceptance. For specific project acceptance requirements, please contact us for confirmation.
Yes. We strictly customize according to the GB/T19326-2022 national standard process tolerances, and can process non-standard pipe diameters, special reducing ratios, thickened wall thickness, extended pipe sections, thin-wall special structures, as well as non-standard angles, embedded reinforcement, special flange specifications, and equipment-specific extended branch outlets. Please provide drawings and parameters, and we will assist in confirming the solution.
Common national standard regular models available on the market and standard specifications in carbon steel and stainless steel are sufficiently stocked, and will be shipped within 24-48 hours after order confirmation. For small and medium batches and non-standard customized products, please contact us to confirm the delivery time.
For standard national standard in-stock standard models, the MOQ is as low as 1 piece, and we support project inspection submission, sample retention, drawing test pieces, and engineering sporadic pipe replenishment. For the minimum order quantity of other specifications, please contact us to confirm.
Yes. For export orders, on the basis of standard packaging, waterproof stretch film and anti-rust film are added to adapt to the moisture-proof and salt-spray-resistant requirements of sea freight. Product information labels are affixed to the outer packaging, which can directly meet the standardized packaging requirements for foreign trade customs clearance.
Please provide the required product model, material, specification, pressure rating, and quantity, and we will assist with the quotation according to your project requirements. For non-standard customization, please also provide drawings or technical parameters.
