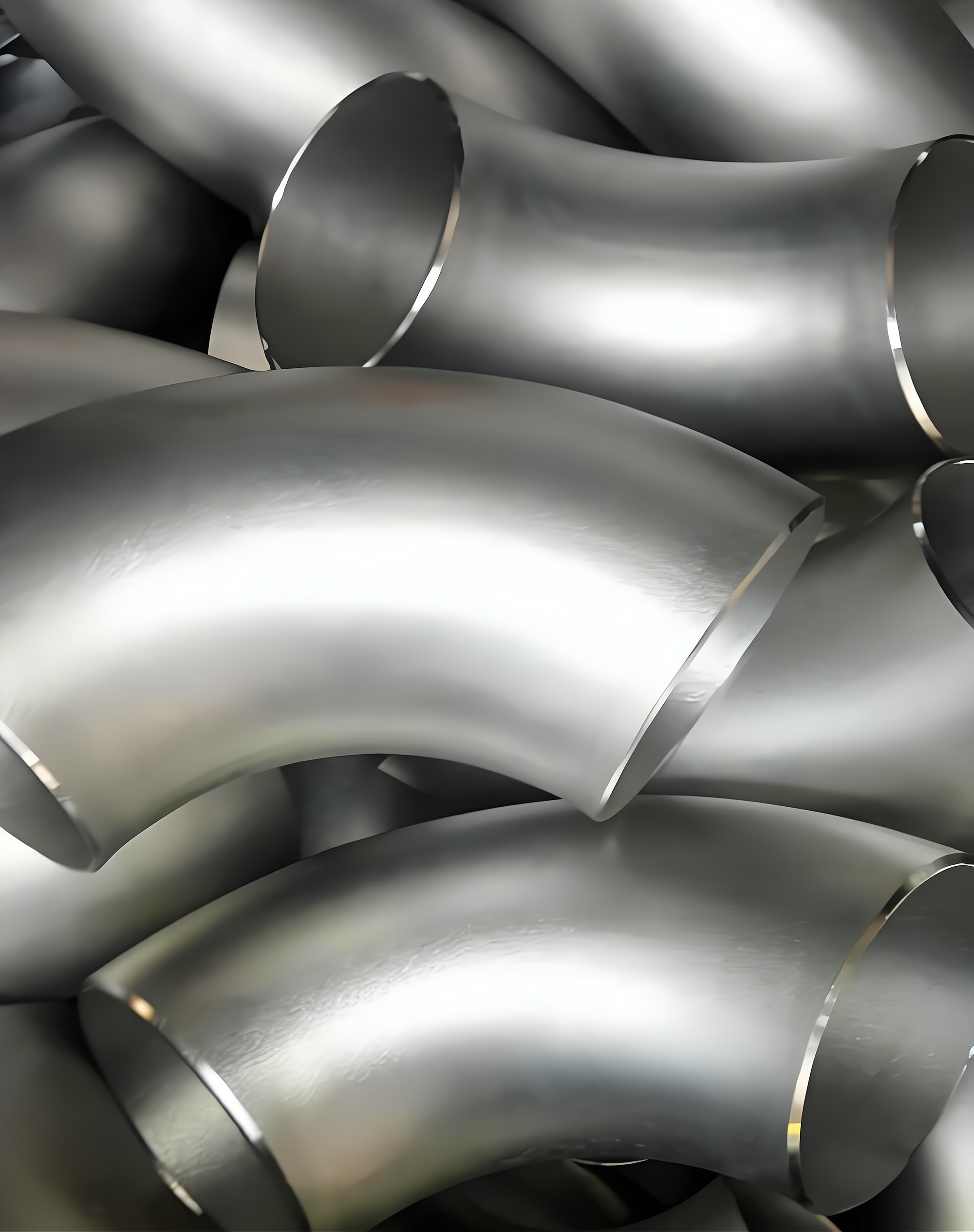

British standard elbows are core direction-changing pressure-bearing pipe fittings for industrial pressure pipelines in the Commonwealth system. They are specially designed for industrial pipeline networks operating under BS EN standards wi
Inquiry
British standard elbows are produced according to the British BS series pipeline fittings standards. Current projects implement BS EN 10253-1/10253-2, while old renovation projects are compatible with BS 1965, and they are matched with the BS 3606 steel pipe standard, satisfying the PED Pressure Equipment Directive. The products use seamless hot pushing, steel plate rolling, and forging forming processes. The nominal diameter coverage ranges from DN15 to DN1200. Conventional angles are 45°, 90°, and 180°. Bending radii are mainly 1.0D short radius and 1.5D long radius, and 3D large radius customization is supported. Materials cover P235GH carbon steel, P355NL low-temperature steel, 16Mo3 heat-resistant alloy steel, 1.4301/1.4404 stainless steel, and duplex steel. Wall thickness grades include STD, XS, and XXS, adapting to pressure ratings from PN16 to PN160. Dimensional tolerances, roundness, beveling, heat treatment, and non-destructive testing are carried out according to British industrial specifications. Weldability is good, and they can be supplied as complete sets with British standard tees, branch outlets, and flanges.
| Product Name | British Standard Elbow |
| Category | Elbow |
| All technical parameters of British standard elbows strictly align with authoritative British BS EN industrial standards, with precise and compliant parameters, universal use across the Commonwealth, and international exemption from inspection. Core implementation standards | The current engineering standard is BS EN 10253-1/10253-2; old renovation projects are compatible with BS1965, and the entire process complies with the PED EU Pressure Equipment Directive. Specification system: nominal diameter DN15-DN1200, conventional angles 45°, 90°, 180°; bending radius 1.0D short radius and 1.5D long radius mainstream models, with support for 3D large radius customization. Main British standard materials: P235GH carbon steel, P355NL low-temperature steel, 16Mo3 heat-resistant alloy steel, 1.4301/1.4404 stainless steel, duplex steel. Wall thickness grades include STD standard wall thickness, XS extra heavy, XXS ultra-high pressure extra heavy, suitable for the full pressure range from PN16 to PN160. The operating temperature range covers -50 |
| Customization | Our factory has deep non-standard customization capability for the full category and full specification range of British standard elbows, strictly in accordance with the BS EN British official standard, undertaking various British standard drawings, special working conditions, and overseas high-end engineering customization needs. It supports customization in the full range of genuine British standard materials, covering P235GH carbon steel, P355NL low-temperature weather-resistant steel, 16Mo3 heat-resistant alloy steel, 1.4301/1.4404 stainless steel, duplex steel, and special alloys, precisely adapting to the severe working conditions of high temperature, low temperature, high pressure, and seawater salt spray corrosion in the Commonwealth. It supports customization of non-standard parameters, and can produce 22.5°, 30°, 60° special-shaped angles, 3D extra-large radius, non-standard thickened wall thickness, ultra-high pressure grades, and large-diameter reducing British standard elbows. It supports high-end process customization, British standard exclusive heat treatment |
| MOQ | British standard elbows adopt a relaxed and flexible minimum order mechanism for British-system foreign trade, fully adapting to the diversified procurement needs of Commonwealth overseas customers for sample submission and inspection, sporadic project replenishment parts, pipeline network maintenance restocking, small-batch stocking, and large EPC full-order centralized procurement, with no high minimum order threshold. Conventional P235GH carbon steel and 1.4301/1.4404 stainless steel general British standard in-stock specifications, MOQ |
| Lead Time | Our factory is equipped with dedicated automated production lines for British standard pipe fittings and large-scale foreign trade standing inventory, deeply cultivating the Commonwealth cross-border supply chain, and can efficiently and stably deliver global British standard orders. DN15-DN400 conventional 90°/45° 1.5D long-radius P235GH carbon steel and ordinary stainless steel British standard elbows are in sufficient stock, and within 24-48 hours after order parameter verification and confirmation |
| Packaging | British standard elbows adopt Commonwealth export-grade standardized precision packaging, specially designed for ocean shipping, multi-country customs inspection, and British standard high-end engineering acceptance, comprehensively eliminating problems such as bevel collision, surface rust, transportation deformation, and internal contamination of the pipe. Small-diameter precision British standard elbows are equipped with high-strength thickened plastic protective caps at both ends, completely sealing the pipe openings, protecting precision welding bevels and internal cleanliness, and preventing collision damage and entry of foreign matter. The exterior is wrapped in multiple layers of waterproof stretch film and thickened bubble film to achieve all-round shockproof, moisture-proof, and scratch-proof protection. Small and medium-sized standard products are classified and packed into thickened export cartons, affixed with bilingual Chinese-English British standard labels, clearly marking the BS EN standard, material, DN specification, wall thickness grade, and production batch, eliminating mixed loading and confusion. Large-diameter, thick-wall |
| Reference Price | Inquiry |
British Standard elbows are scheduled according to orders. Conventional P235GH carbon steel and 1.4301/1.4404 stainless steel general specifications are kept in stock. DN15-DN400 90°/45° 1.5D long-radius standard elbows can be arranged for shipment within 24-48 hours after order parameters are checked and confirmed. For other materials, large diameters, non-standard angles, and customized products, please contact us to confirm the production scheduling cycle. Regarding minimum order quantity, the minimum order threshold for conventional general specifications is flexible; please confirm the specific quantity with us based on specifications and materials. Packaging is carried out according to export standards. Small-diameter products are fitted with end caps and wrapped with waterproof film and bubble film. Large-diameter products are equipped with rainproof cloth and fumigation-free solid wood pallets. Outer packaging can be customized with English shipping marks and customer LOGO. BS EN 10204 3.1/3.2 material inspection certificates can be issued with the goods, facilitating customs clearance and project submission for inspection.
In the pre-sales stage, we can assist in confirming BS EN material selection, pressure rating matching, and adaptation between old and new British Standards, and help verify the nominal diameter, wall thickness, angle, and bevel requirements in the drawings. During order execution, foreign trade customer service follows up on production, heat treatment, non-destructive testing, packaging, and logistics progress, and supports minor adjustments to order parameters, expedited production scheduling, and batch traceability inquiries. In terms of after-sales service, under compliant working conditions, products with non-human-caused quality defects support returns, exchanges, and replacements, and we bear the corresponding cross-border logistics costs. We can provide technical materials on British Standard pipeline welding processes, installation specifications, and anti-corrosion maintenance, and assist with overseas project submission for inspection, third-party testing, and customs clearance. Long-term cooperative customers can discuss inventory reservation and priority production scheduling arrangements.
New projects shall be executed in accordance with BS EN 10253-1/10253-2, while old renovation projects shall be compatible with BS 1965, and shall also comply with the PED Pressure Equipment Directive, and be accompanied by the BS 3606 steel pipe standard.
The two standard systems share the same origin, but the British standard has more specific requirements in terms of acceptance tolerances, wall thickness adaptation, and flaw detection levels. For projects with a British background or that explicitly require BS EN standards, it is recommended to use genuine British standard elbows. Whether they can be mixed with European standard pipe fittings must be confirmed in conjunction with the project acceptance requirements.
1.4404 stainless steel or duplex steel British standard materials can be selected. The specific grade and wall thickness must be confirmed according to the medium, temperature, and pressure parameters. You are welcome to contact us for assistance with selection.
BS EN 10204 3.1/3.2 material inspection certificates can be issued with the goods. Please specify the certificate type and number of copies at the time of inquiry, and we will prepare them according to the order requirements.
90°/45° 1.5D long radius P235GH carbon steel and ordinary stainless steel British standard elbows in DN15-DN400 are in stock; shipment will be made within 24-48 hours after parameters are confirmed. For other materials, large diameters, or customized products, please contact us to confirm the production scheduling cycle.
For conventional P235GH carbon steel and 1.4301/1.4404 stainless steel general specifications, the minimum order threshold is flexible and can meet different needs such as sample submission for inspection, small sporadic replenishment, and full-order centralized procurement. Please confirm the specific quantity with us based on specifications and materials.
Yes. We support customization of irregular angles such as 22.5°, 30°, 60°, 3D large radius, non-standard thickened wall thickness, and large-diameter reducing elbows. Please provide English drawings or dimensional parameters, and we will assist in confirming the feasible production range.
Yes, British standard tees, branch outlets, and flanges can be supplied together as a set, making it convenient to unify material certificates and packaging batches and reducing the coordination steps of purchasing separately. Please provide the supporting list when placing an order.
