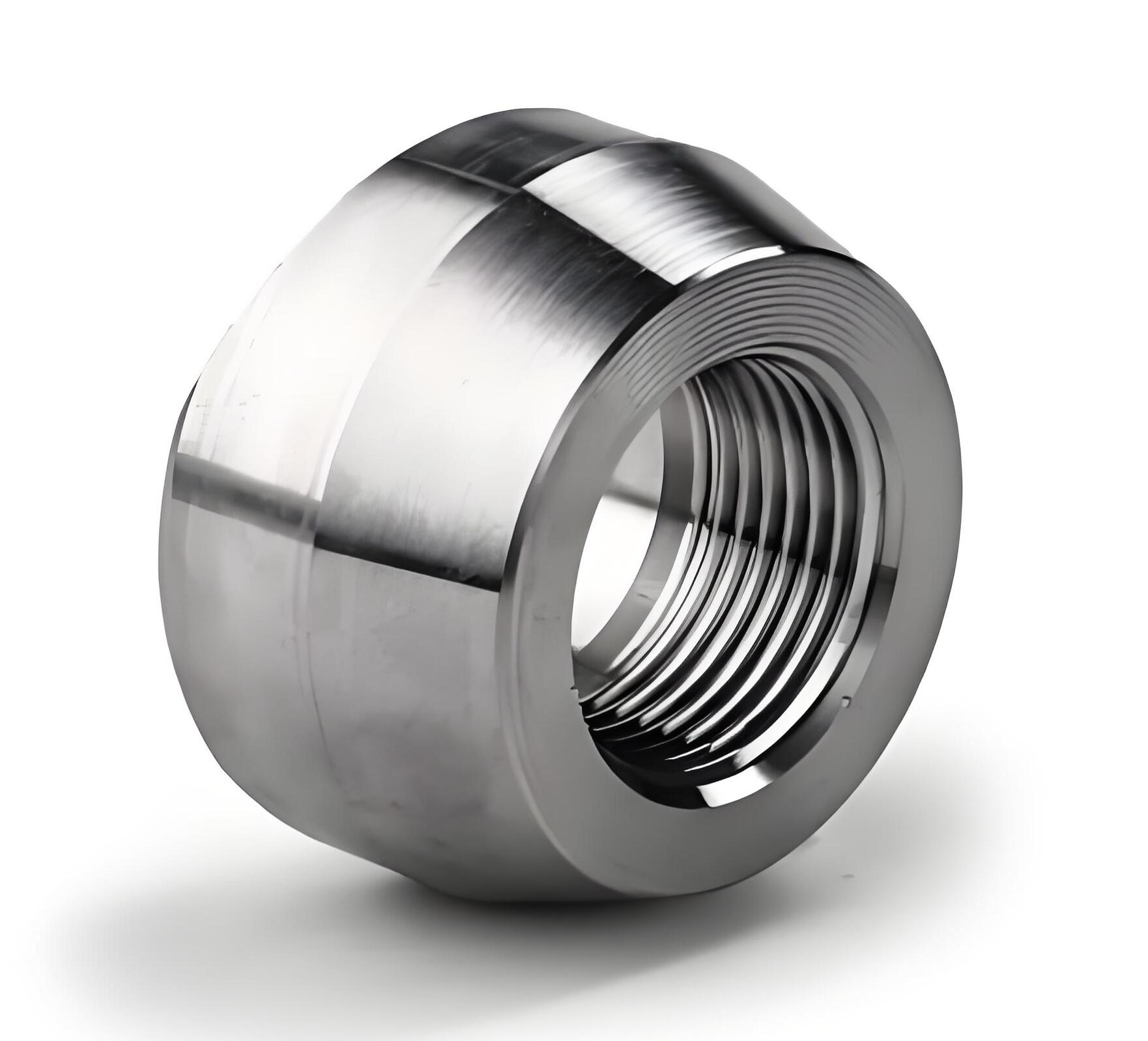

Nickel-based alloy branch outlet

Name: Nickel-based alloy branch outlet
SKU: d780819a-909c-4388-aa74-d4ec4f9042ac

Nickel-based alloy branch outlet fittings are integrated reinforced branch pipe fittings dedicated to top-tier working conditions of extreme strong corrosion, ultra-high temperature, strong acids and alkalis, and strong redox, fully replaci

Reference Price

Inquiry

Our nickel-based alloy branch outlets offer four top core advantages
The optimal solution for pipeline branches under extreme conditions
Can completely replace imported high-end pipe fittings. First
Top-tier alloy material performance
Relying on the full range of Inconel, Hastelloy, and Monel nickel-based materials

Quote View Details

Detailed Introduction

Nickel-based alloy branch outlet (forged nickel-based alloy branch outlet fitting, Nickel Alloy Olet) is directly welded to the outer wall of the main pipe to lead out a branch pipe. It has an integral reinforcement structure, used to disperse stress at the pipe opening position and reduce the risk of cracking and medium leakage caused by stress concentration under high-temperature and highly corrosive working conditions. The product uses nickel as the base material, can withstand strong acids and alkalis, chloride ions, hydrogen sulfide, and high-temperature oxidation environments, and combines high-temperature strength with creep resistance. Connection forms include butt welding, socket welding, threaded, and 45° miter. Nominal diameter covers DN6-DN100, pressure rating covers 2000LB-9000LB, and wall thickness covers SCH40S to XXS. Supports standard stock and non-standard customization according to drawings, serving pipeline branch supporting for fine chemicals, hydrometallurgy, high-temperature desulfurization, deep-sea oil and gas, nuclear power auxiliary pipelines, and high-purity fluid projects.

Integrally die-forged, with a built-in reinforcement structure, the branch outlet can be completed without cutting the main pipe, reducing stress concentration at the pipe opening.
Material covers nickel-based alloy grades such as Inconel 625/600, Incoloy 825/800, Hastelloy C276/C22, Monel 400, etc., and can be matched according to working conditions such as strong acids, strong alkalis, high temperature, and seawater.
Nominal diameter DN6-DN100, pressure rating 2000LB-9000LB, wall thickness SCH40S to XXS, connection methods include butt welding, socket welding, NPT thread, and 45° miter.
Supports drawing customization for non-standard pipe diameters, reducing size ratios, ultra-high pressure ratings, thickened wall thickness, extended nipples, branches at any angle, and special sealing interfaces.
Full spectral inspection is carried out before leaving the factory, and material testing data can be provided, facilitating engineering acceptance and material verification.
Commonly used grades Incoloy 800, 825, Inconel 600 standard stock specifications MOQ as low as 1 piece, suitable for sample testing and small-batch replenishment.

Product Name	Nickel-based Alloy Branch Outlet
Product Categories	Branch Outlet
The core technical parameters of nickel-based alloy branch outlets strictly align with ASTM, ASME, MSS international top special pipe fitting standards, adapting to extremely harsh working conditions. Material parameters	Covers the full range of nickel-based alloys including Inconel625/600, Incoloy825/800, HastelloyC276/C22, Monel400, etc., with super strong resistance to acid and alkali, high temperature, sulfidation, and seawater corrosion. Temperature resistance parameters: conventional application from -50℃ to 1000℃, capable of withstanding ultra-high temperature oxidation conditions. Pressure parameters: covering 2000LB-9000LB ultra-high pound classes, suitable for high temperature, high pressure, and strong corrosion combined loads. Specification parameters: diameter DN6-DN100, wall thickness SCH40S to XXS fully thickened special specifications, supporting reducing and non-standard customization. Connection methods include butt welding BW, socket welding SW, NPT thread, 45° miter structure. Executive standard
Customization	Our factory possesses one-stop top-level deep non-standard customization capability for nickel-based alloy branch outlets, capable of fully implementing customization requirements for various overseas extreme working conditions, high-end precision drawings, and special parameters. Supports customization of the full range of nickel-based alloy grades, covering all grades of the four major series Inconel, Incoloy, Hastelloy, and Monel, and can precisely match materials according to different extreme working conditions such as strong acid, strong alkali, high temperature, and deep sea. Supports non-standard parameter customization, capable of processing products with unconventional pipe diameters, reducing ratios, ultra-high pressure pound classes, special thickened wall thicknesses, and extended precision short piece specifications. Supports structural customization, capable of producing branch structures at any angle, embedded super strong reinforcement, special sealing interfaces, and special-shaped branch structures. Supports high-end process customization, solution heat treatment,
MOQ	Our factory adopts a high-end flexible foreign trade minimum order mechanism for nickel-based alloy branch outlets, fully adapting to the diverse needs of high-value special pipe fitting samples, precision replenishment, and high-end engineering centralized procurement, with no mandatory high minimum order threshold. For conventional commonly used grades Incoloy800, 825, Inconel600 standard stock specifications, MOQ is as low as 1 piece, supporting overseas high-end customers' sample testing,
Lead Time	Our factory is equipped with dedicated precision production lines for nickel-based alloys, constant-temperature processing workshops, and standing inventory of scarce alloys, relying on a mature supply chain for high-end special pipe fittings to ensure precise and efficient delivery of high-end foreign trade orders. For commonly used Incoloy800, 825, Inconel600 conventional standard specifications in the market, stock is sufficient; after order parameter verification and payment, within 24-48 hours,
Packaging	In response to the special attributes of nickel-based alloy branch outlets being high-value, precision and easily scratched, and high-end foreign trade export, our factory adopts a top-level refined dedicated export packaging solution to strictly prevent scratching, oxidation, mixed goods, and transportation damage. Each high-end nickel-based branch outlet is fully wrapped and protected with thickened high-density pearl cotton, precisely protecting the bevel, threads, and precision machined surfaces, eliminating any friction scratches; the outer layer is wrapped with double-layer vacuum anti-rust and waterproof film, isolating sea freight salt spray and humid air, preventing oxidation discoloration and defects on the surface of high-end alloys. Small precision specifications are packed into thickened moisture-proof and shock-proof export cartons, filled with cushioning foam for shaping; heavy large-size products are fixed with fumigation-free solid wood pallets, reinforced and locked with steel straps, complying with global customs fumigation-free clearance standards. All products are strictly organized by nickel-based grade
Reference Price	Inquiry

Applications

Branch connections for fine chemical strong acid and strong alkali reaction pipelines, strong oxidation-reduction medium pipelines, and high-purity chemical fluid transportation systems
Branch extraction for high-salt and high-acid wastewater treatment pipelines in environmental protection desulfurization devices, and high-temperature corrosive tail gas treatment pipeline systems
Branch extraction for hydrometallurgical extraction pipelines, electrolyte transportation pipe networks, and non-ferrous metal purification corrosion pipelines
Deepwater oil and gas, nuclear power auxiliary pipelines, and other pipeline branch projects that have requirements for chloride ion resistance, hydrogen sulfide resistance, and high-temperature performance
Pipeline branch supporting components in high-purity fluid projects that need to avoid medium contamination and corrosion
When repairing or expanding the capacity of old high-end corrosion pipeline networks, directly drawing branch pipes from the original main pipe

Procurement & Delivery

For commonly used standard grades Incoloy 800, 825, and Inconel 600, standard stock specifications have an MOQ as low as 1 piece, suitable for sample testing and small-batch replenishment. After order parameters are checked and payment is made, stock specifications are shipped within 24-48 hours; for non-standard customization and non-common grades, please contact us to confirm the production cycle. Packaging is carried out according to export requirements: each piece is fully wrapped in pearl cotton to protect the bevel and threads, a double-layer vacuum anti-rust and waterproof film isolates sea freight salt fog, small specifications are packed in thickened moisture-proof and shockproof export cartons, and heavy large specifications use fumigation-free solid wood pallets reinforced with steel straps, with bilingual Chinese and English labels affixed to the outer packaging indicating alloy grade, standard, parameters, and batch. The entire batch of goods is fully sealed and wrapped with thickened waterproof stretch film, suitable for sea and air transport.

Service & Support

Before sales, we can provide working condition diagnosis, nickel-based grade selection suggestions, and pipeline adaptation consultation to help avoid the risk of material mismatch. During sales, one-on-one order tracking keeps you updated on forging, heat treatment, spectral testing, precision machining, and logistics progress, and supports fine-tuning of order parameters and expedited scheduling. After sales, warranty service is provided; under normal working conditions, products with quality defects not caused by human damage can be returned, exchanged, or replaced. Bilingual Chinese and English welding process and installation guidance can be provided to assist with overseas customs clearance and project acceptance. Long-term customers can enjoy inventory reservation and priority scheduling. For specific warranty periods and after-sales terms, please contact us to confirm.

FAQ

What is the difference between nickel-based alloy branch outlets and duplex steel and stainless steel branch outlets?

Nickel-based alloys use nickel as the matrix and are superior to duplex steel and stainless steel in resistance to concentrated strong acids, concentrated strong bases, high-temperature oxidation, chloride ions, and hydrogen sulfide corrosion, while also possessing high-temperature strength and creep resistance. In strongly corrosive and high-temperature working conditions where conventional metal pipe fittings are difficult to operate stably over the long term, nickel-based alloy branch outlets are a more suitable material selection direction. For specific selection, please contact us to confirm based on medium and temperature parameters.

How should commonly used nickel-based grades be selected?

For conventional high-temperature anti-corrosion working conditions, Incoloy 800/825 can be considered; for high-end corrosion-resistant working conditions, Inconel 625 can be considered; for strong acid and alkali working conditions, Hastelloy C276 can be considered; for seawater and sulfur-resistant working conditions, Monel 400 can be considered. Actual selection needs to be combined with medium composition, concentration, temperature and pressure parameters. You are welcome to contact us to provide working condition information, and we will assist in confirming the suitable grade.

How is the product material guaranteed?

We use genuine nickel-based alloy forgings, and conduct full spectral inspection before leaving the factory, and can provide material testing data for verification. If third-party testing or specific acceptance requirements are needed, please contact us to confirm the specific arrangements.

Can non-standard specifications be customized according to drawings?

Yes. We support customization of the full range of nickel-based alloy grades, and can process unconventional pipe diameters, reducing size ratios, ultra-high pressure ratings, special thickened wall thicknesses, extended length nipples, branches at any angle, special sealing interfaces and other structures. We can also perform solution heat treatment, pickling and passivation, mirror polishing, anti-oxidation coating and laser marking. Please provide drawings or samples, and we will assist in confirming manufacturability and quotation.

What are the delivery time and minimum order quantity?

For commonly used grades Incoloy 800, 825, and Inconel 600 standard stock specifications, the MOQ is as low as 1 piece, and shipment is within 24-48 hours after parameter verification and payment. For non-standard customization and non-common grades, please contact us to confirm the minimum order quantity and delivery time.

Do you provide welding and installation guidance?

We can provide bilingual Chinese-English guidance on nickel-based alloy welding processes and piping installation specifications. Specific welding parameters need to be determined based on on-site working conditions and base metal conditions; you are welcome to contact us for communication and confirmation.
