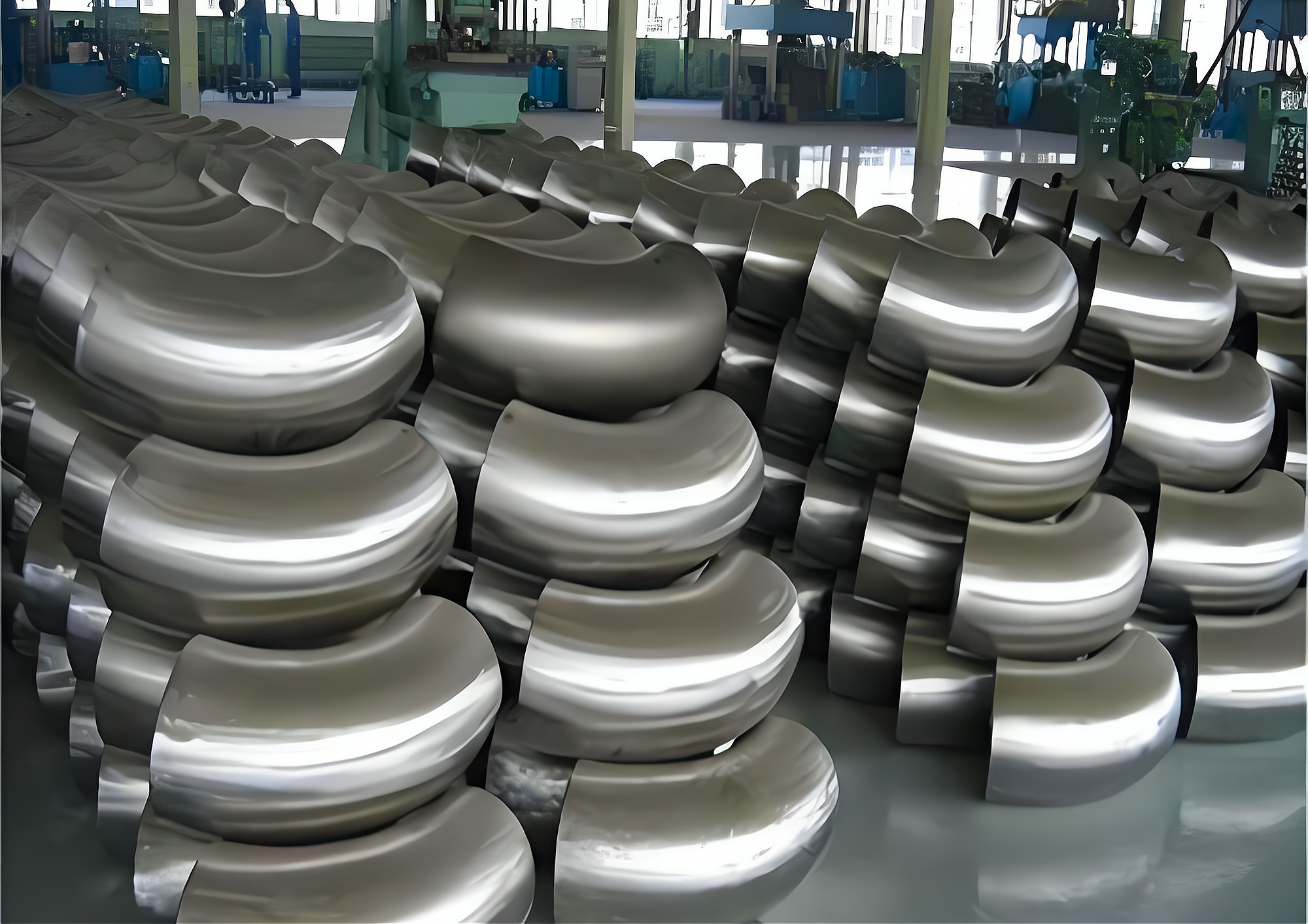

German standard elbows are pressure-bearing pipe fittings dedicated to direction changes in German-system precision industrial pressure pipelines. They are specially designed for industrial pipeline networks that meet DIN standards and requ
Inquiry
German standard elbows are used to change the direction of pipeline medium transport, and are direction-changing pipe fittings in German-style industrial pressure pipelines. The products adopt seamless hot-pushing, steel plate rolling, and die forging forming processes. Mainstream grades include St37.2 carbon steel, P265GH pressure-bearing carbon steel, 16Mo3 heat-resistant alloy steel, and 1.4301/1.4404 stainless steel. Specifications adopt DN metric nominal diameter. Conventional angles include 45°, 90°, and 180°. Bending radii include 1.0D short radius, 1.5D standard long radius, and 3D large radius. The products implement German precision requirements in dimensional tolerances, roundness, end face flatness, heat treatment, and non-destructive testing, and can be supplied as complete sets with German standard tees, branch outlets, and flanges. Before purchasing, it is recommended to confirm the applicable standard version, material grade, DN specification, wall thickness grade, angle, and bending radius. You are welcome to contact us for assistance with selection and quotation.
| Product Name | DIN Elbow |
| Categories | Elbows |
| The technical parameters of the entire German standard elbow series strictly align with authoritative German DIN industrial standards, with precise parameters, general applicability to German-style projects, and international high-end exemption from inspection. Core applicable standards | Traditional projects DIN2605, DIN2615, new construction projects DIN EN10253-1 non-pressure-bearing, DIN EN10253-2 fully pressure-bearing standards, compatible with the EU PED Pressure Equipment Directive. Specification system: nominal diameter DN15-DN1200, conventional angles 45°, 90°, 180°; bending radii include 1.0D short radius, 1.5D standard long radius, 3D large radius slow-flow type. German-standard exclusive materials: St37.2 carbon steel, P265GH pressure-bearing carbon steel, 16Mo3 heat-resistant alloy steel, 1.4301/1.4404 stainless steel. Wall thickness grades cover DIN STD conventional wall thickness, XS extra-strong, XXS ultra-high-pressure extra-thick wall thickness, suitable for PN16-P |
| Customization | Our factory possesses deep non-standard customization capability for German-standard elbows of all categories and all specifications, strictly based on the DIN German official standards and DIN EN European-German unified specifications, precisely fulfilling various German drawing, precision working condition, and high-end equipment supporting customization requirements. Supports customization in the full range of genuine German-standard materials, covering St37.2 carbon steel, P265GH pressure-bearing carbon steel, 16Mo3 heat-resistant alloy steel, 1.4301/1.4404 German-series stainless steel, duplex steel special alloys, precisely suitable for German-series high-temperature, high-pressure, precision-clean, corrosion-resistant harsh working conditions. Supports non-standard parameter customization, can produce 22.5°, 30°, 60° special-shaped angles, 3D extra-large radius, non-standard thickened wall thickness, ultra-high PN pressure rating, large-diameter reducing German-standard elbows. Supports |
| MOQ | German-standard elbows adopt a German-style foreign trade flexible and lenient minimum order mechanism, suitable for the diverse procurement needs of the German-speaking region including precision trial samples, engineering sporadic replenishment parts, equipment maintenance replenishment, small-batch stocking, and large German-standard EPC full-order centralized procurement, with no high minimum order threshold. Conventional St37.2 carbon steel, 1.4301 stainless steel general-purpose German-standard in-stock specifications, MOQ as low as 1 piece, supporting German customers' precision |
| Lead Time | Our factory is equipped with dedicated precision production lines for German-standard pipe fittings and large-scale foreign trade standing inventory, deeply engaged in the European cross-border supply chain for many years, capable of efficiently and stably delivering global German-standard orders. DN15-DN400 conventional 90°/45° 1.5D long-radius St37.2 carbon steel, ordinary stainless steel German-standard standard elbows are in ample stock, within 24-48 hours after order parameters are checked and confirmed |
| Packaging | German-standard elbows adopt German-style precision export-grade fine packaging, suitable for European ocean shipping, German-speaking region customs inspection, and German high-end industrial precision acceptance standards, providing all-round protection to prevent bumps, bevel damage, oxidation and rust, and precision deviation. Small-diameter precision German-standard elbows are fitted with thickened high-strength plastic protective caps at both ends, completely sealing the pipe openings, protecting the precision welding bevels and the cleanliness inside the pipe, preventing the entry of impurities and corner bumping and deformation. The exterior is double-layer wrapped with waterproof stretch film and thickened bubble film, achieving all-round shockproof, moisture-proof, and scratch-proof protection. Small and medium specification standard products are classified and packed into thickened export cartons, affixed with German-English bilingual labels, clearly marked with DIN standard, material, DN specification, wall thickness grade, and production batch, preventing mixed loading and confusion. Large-diameter, thick-wall, high-pressure |
| Reference Price | Inquiry |
German-standard elbows are supplied according to DN metric nominal diameter, with conventional angles of 45°, 90°, and 180°, and bending radii available in 1.0D, 1.5D, and 3D. Conventional St37.2 carbon steel and 1.4301 stainless steel general German-standard stock specifications have an MOQ as low as 1 piece; DN15-DN400 conventional 90°/45° 1.5D long-radius St37.2 carbon steel and ordinary stainless steel German-standard elbows are in ample stock, and shipment is arranged within 24-48 hours after order parameters are checked and confirmed. For non-standard angles, extra-large radii, non-standard thickened wall thicknesses, ultra-high PN pressure ratings, and large-diameter reducing products, please contact us to confirm the production scheduling cycle. Packaging is carried out according to export-grade standards; small diameters are fitted with plastic end caps to protect the bevel, small and medium specifications use export cartons with German-English bilingual labels, large-diameter thick-wall products use rainproof cloth plus fumigation-free solid wood pallets secured with steel straps, carbon steel is coated with anti-rust oil, and stainless steel is pickled and passivated and then film-covered. Outer packaging can be customized with German-English bilingual shipping marks and customer LOGO.
Before sales, we provide German-standard working condition selection, DIN material matching, PN pressure rating confirmation, and consultation on adaptation between old and new German standards, and assist in checking dimensional tolerances and assembly requirements in German drawings. During sales, one-on-one foreign trade customer service follows up on the order, synchronizing production, heat treatment, inspection, packaging, and cross-border logistics progress, and supports minor adjustments to order parameters, expedited production scheduling, supplementary issuance of German-English bilingual qualifications, and batch traceability inquiries. After sales, warranty service is carried out according to international standards; under compliant working conditions, products with non-human-caused quality defects are supported with free return and exchange and replacement products, and the corresponding cross-border logistics costs are borne by us. We can assist customers with German-standard project acceptance submissions, third-party re-inspection, and customs clearance, and long-term customers enjoy inventory reservation, priority production scheduling, and exclusive floor price benefits.
Traditional projects implement DIN 2605, DIN 2615, and DIN 2616; newly built German-European integrated projects uniformly implement DIN EN 10253-1 (non-pressure) and DIN EN 10253-2 (full pressure), while also satisfying the PED EU Pressure Equipment Directive. Please provide the drawing or standard number for the specific version of the standard used by the project, and we will assist in confirming it.
The size system is similar, but the tolerances, wall thickness, and material acceptance details differ. For high-end German-funded precision projects, it is recommended to use genuine DIN German-standard elbows to avoid failing acceptance. If you are unsure which standard applies to your project, welcome to contact us for assistance in verification.
All products in the entire series implement German precision engineering requirements in dimensional tolerances, roundness, end face flatness, heat treatment, and non-destructive testing, with strict residual stress control, suitable for German-system precision equipment, clean pipelines, and long-term continuous operation conditions. For specific installation space and interface requirements, please contact us to confirm.
Each order comes standard with German-English bilingual EN10204 3.1/3.2 material certificates and a full set of inspection reports, supporting European third-party inspection and customs clearance. If the project requires other languages or additional qualification documents, please contact us to confirm.
We support customization according to German drawings for all materials, all precision levels, and special-shaped structures, including 22.5°, 30°, and 60° special-shaped angles, 3D extra-large radii, non-standard thickened wall thickness, ultra-high PN pressure ratings, large-diameter reducing sizes, as well as German-standard exclusive heat treatment, precision bevel polishing, high-precision shaping, sandblasting and rust removal, pickling and passivation, and equipment-grade anti-corrosion coatings. Please provide drawings and quantities, and we will assist in confirming the plan and quotation.
Standard DIN stock specifications in regular St37.2 carbon steel and 1.4301 stainless steel, with MOQ as low as 1 piece. DN15-DN400 regular 90°/45° 1.5D long-radius St37.2 carbon steel and ordinary stainless steel DIN standard elbows are in ample stock; after parameters are checked and confirmed, shipment will be arranged within 24-48 hours. For non-standard custom and large-diameter thick-wall products, please contact us to confirm the production schedule.
