German standard four-way

The German-standard four-way is a core high-end pipe fitting for four-way diversion, four-way convergence, and precise cross-node connection in DIN-standard precision pressure piping systems, specifically designed for German industrial high

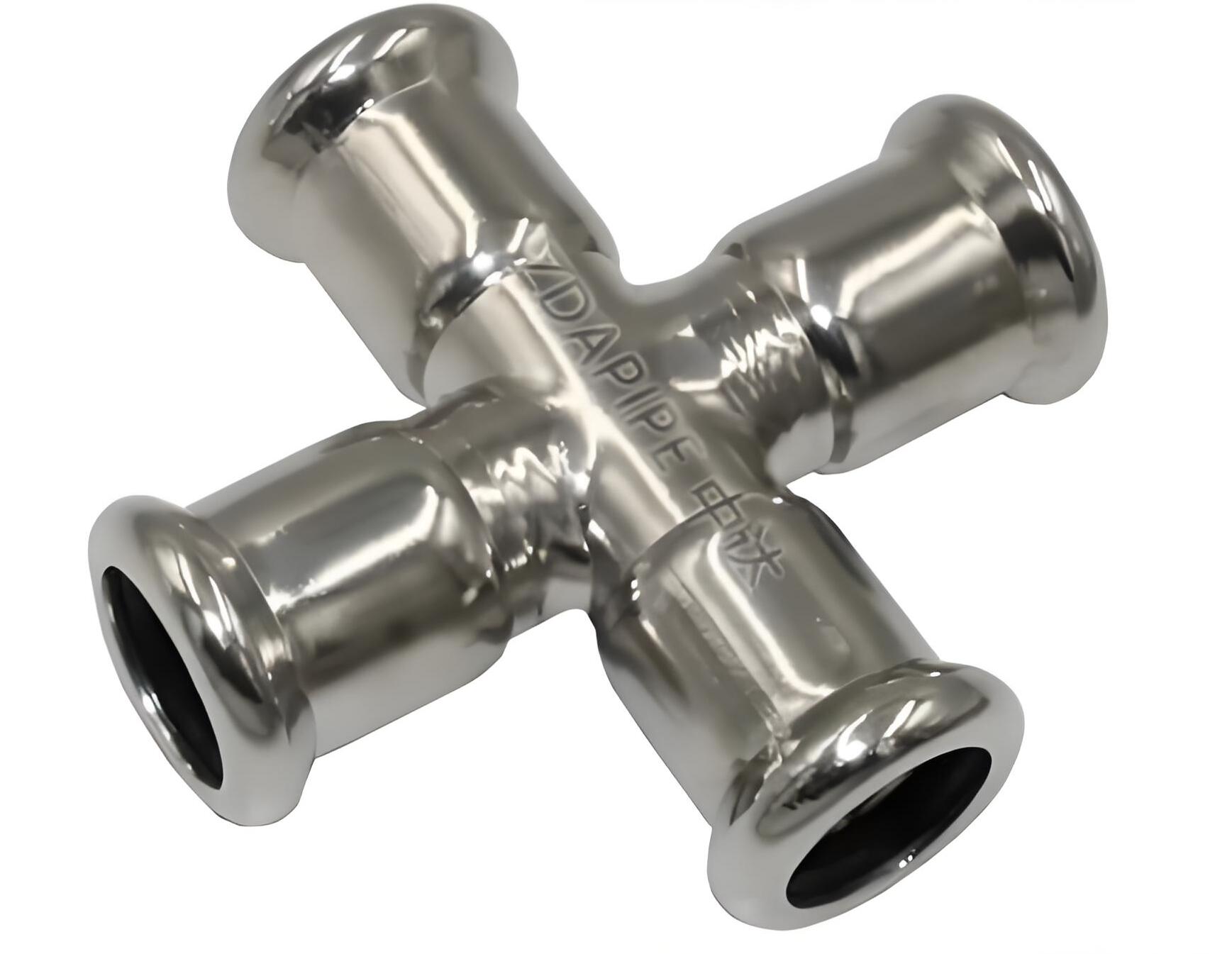

German standard four-way - German standard four-way dedicated adaptation for European DIN high-standard, high-precisi...

German standard four-way

The German-standard four-way is a core high-end pipe fitting for four-way diversion, four-way convergence, and precise cross-node connection in DIN-standard precision pressure piping systems, specifically designed for German industrial high

Reference Price

Inquiry

  • The core advantages of German-standard four-way fittings are German DIN precision craftsmanship, ultra-high dimensional accuracy, extra-large safety redundancy, suitability for Europe's old existing pipeline networks, zero failure under hig
  • they are the preferred four-way pipe fittings for high-end industrial projects in China and Europe. Products are precision-manufactured strictly according to the original German industrial standards DIN2615 and DIN2605
  • dimensional tolerances are extremely small, bevels are uniform, and concentricity is high
  • Perfectly suited for European precision pipeline assembly requirements
  • eliminating on-site alignment deviations, leakage, and assembly interference issues. Small and medium diameters are integrally formed by seamless hot pressing, with dense metallographic structure and no welding defects
Quote View Details

Detailed Introduction

German standard cross belongs to pipeline cross-node butt welding pipe fittings, undertaking the diversion and confluence of four-way media. The products are produced according to the German industrial pipe fitting standards DIN2615 and DIN2605, and the outer diameter, center height, bevel form and wall thickness tolerance follow the German DIN system. Although the old DIN standards have been replaced by the European standard EN10253, there are still a large number of existing DIN pipelines, old installations and German-system complete equipment in Germany, Austria, Switzerland, as well as the Middle East and Africa that are using German standard crosses, and such projects usually cannot be directly replaced with ordinary European standard pipe fittings. In terms of specifications, it covers DN15–DN1200; small diameters adopt seamless hot extrusion forming, and large diameters adopt steel plate rolled and welded fabrication; materials include carbon steel St37.0, St52, alloy steel 13CrMo44, as well as German standard stainless steel 1.4301 and 1.4571. Pressure ratings are PN10–PN160, divided into reduced-pressure type and full-pressure type. Hydrostatic testing and UT/RT non-destructive testing can be carried out on demand, and EN10204-3.1B material certificates can be issued.

  • Produced according to the German industrial standards DIN2615 and DIN2605, the outer diameter, center height, bevel form and wall thickness tolerance follow the German DIN system, suitable for projects that need to match the engineering acceptance requirements of the German-speaking region.
  • Specifications cover DN15–DN1200; small diameters are formed by seamless hot extrusion, and large diameters are fabricated by steel plate rolled and welded, and the corresponding process can be confirmed according to the project's diameter and structural requirements.
  • Materials cover carbon steel St37.0, St52, alloy steel 13CrMo44, as well as German standard stainless steel 1.4301 and 1.4571, making it easy to match material selection according to the medium and working conditions.
  • Pressure ratings cover PN10–PN160, divided into reduced-pressure type and full-pressure type, and the specific rating and structural form can be confirmed according to the pipeline design pressure.
  • Hydrostatic testing, UT/RT non-destructive testing can be carried out, and EN10204-3.1B material certificates can be issued, facilitating engineering supervision acceptance in the German-speaking region and the preparation of cross-border customs clearance documents.
  • For the maintenance and replacement scenarios of existing DIN pipelines in Europe from the last century, we can cooperate in checking against the dimensions and drawings of old parts, reducing the risk of alignment deviation when replacing old pipelines.
Product NameDIN Four-Way
Product CategoriesTees & Crosses
The full set of technical parameters of the German standard cross strictly aligns with the official German industrial standards DIN2615 and DIN2605, with high precision, large redundancy and strong compliance, fully suitable for high-end engineering acceptance in the German-speaking region. Specification parametersNominal diameter DN15–DN1200, the seamless and rolled-welded dimensional systems fully comply with German standard precision specifications, including equal-diameter and reducing full structures, with wall thickness covering the full range of German standard conventional, thickened, and high-pressure grades. Pressure parameters: PN10–PN160 full German standard pressure ratings, overall pressure-bearing safety redundancy higher than ordinary national standard pipe fittings, suitable for stringent European safety standards. Temperature parameters: carbon steel -20℃~450℃, stainless steel -60℃~600℃, capable of long-term resistance to continuous high-temperature operating conditions in European industry. Material parameters: German standard St37.0/St52 carbon steel, 13CrMo44 alloy steel, 1.4301/1.4571 German standard stainless steel, material composition fully complies with German industrial material standards. Process parameters: seamless
CustomizationThe factory possesses full-dimensional German standard cross high-end precision customization capabilities, deeply cultivated in the DIN German standard system for many years, proficient in German industrial precision tolerances, German standard material specifications, and high-end operating condition safety redundancy requirements, and can undertake various global German standard non-standard, precision special-shaped, and high-pressure special operating condition customization orders. Dimensional customization can produce any German standard non-standard diameter from DN15–DN1200 as needed, precision unconventional reducing ratios, ultra-thick high-pressure precision wall thicknesses, and extended precision straight pipe section special-shaped crosses, strictly locking DIN precision tolerances to ensure zero-deviation perfect docking of European pipelines. Material customization covers the full range of high-end materials including St37/St52 carbon steel, 13CrMo44 alloy steel, and 1.4301/1.4571 German standard dedicated stainless steel. Process customization supports precision
MOQSuitable for German standard high-end foreign trade small-batch trial sales, European warehouse distribution, and German-speaking region EPC high-end centralized procurement needs. German standard crosses are equipped with a high-end flexible tiered MOQ mechanism, with a low threshold suitable for European B2B precision procurement scenarios. Conventional in-stock standard specifications include DN15–DN600 mainstream diameters, PN16/PN25/PN40 conventional pressures, St37 carbon steel, 1
Lead TimeRelying on a dedicated German standard high-end precision production line, precision quality inspection system, and foreign trade ultra-fast delivery channel, German standard crosses provide accurate, stable, precision zero-defect tiered delivery services, fully matching the rigorous construction period requirements of European high-end engineering. DN15–DN600 conventional German standard crosses, carbon steel and stainless steel mainstream precision specifications are in sufficient stock, standard orders complete precision quality inspection within 3 working days
PackagingGerman standard crosses adopt European high-end precision foreign trade protective packaging, suitable for China-Europe Railway Express, ocean shipping, European local warehousing, and high-end precision warehousing standards, preventing precision damage, rust, and collision deformation throughout the entire process, ensuring high-end appearance delivery. Small DN15–DN100 precision crosses, German standard threaded/socket precision small parts, inner layer imported anti-rust oil paper + waterproof PE film double-layer fully sealed moisture-proof and rust-proof, isolating European high-humidity climate and ocean shipping salt spray corrosion, outer layer thickened hard cardboard box independently packaged, with built-in customized shockproof foam, strictly preventing precision ports, threads, and bevels from being scratched and deformed. Medium DN125–DN300 specifications adopt waterproof film + European standard fumigation-free solid wood pallet standardized packaging, neatly arranged in layers, strapped and locked anti-slip, complying with European automated warehouse
Reference PriceInquiry

Applications

  • Four-way diversion or confluence nodes in German-speaking region urban central heating main pipe networks, purified water supply and drainage pipe networks, and industrial clean gas transmission pipe networks.
  • Pipeline nodes with requirements for dimensional precision and sealing stability in German fine chemical plants, pharmaceutical sterile fluid pipelines, automated equipment fluid systems, and precision machinery cooling circulation pipe networks.
  • Cross connection positions in Central European thermal power station precision thermal pipe networks, high-temperature and high-pressure steam process pipelines, and industrial compressed air systems.
  • Replacement and repair of existing DIN pipelines in Europe from the last century, as well as projects for replacing fittings in old installations and old pipelines according to original dimensional parameters.
  • Export projects for German complete equipment sets, requiring the supply of DIN standard crosses as equipment accessories and meeting the acceptance requirements of engineering supervision in German-speaking regions.
  • Maintenance and renovation projects for old installations in the Middle East, Africa, and other regions that continue to use DIN industrial pipelines.

Procurement & Delivery

DIN standard crosses are produced according to DIN2615 and DIN2605 standards. Before procurement, it is recommended to provide pipeline diameter, material grade, pressure rating, groove form, and whether equal-diameter or reducing structure is required. We will assist in verifying DIN dimensional tolerances and operating condition adaptability. Conventional stock standard specifications cover DN15–DN600 mainstream diameters, PN16/PN25/PN40 conventional pressures, and materials such as St37 carbon steel. Standard orders complete quality inspection within 3 working days. The minimum order quantity adopts a flexible tiered mechanism, which can accommodate small trial orders, European warehouse stocking, and German-speaking region EPC centralized procurement needs. Please contact us to confirm the specific MOQ and delivery time. Packaging is graded by specification: small parts use anti-rust oil paper plus waterproof PE film and thickened hard cardboard boxes, medium parts use waterproof laminated film plus European standard fumigation-free solid wood pallets, and large-diameter parts use custom thickened solid wood closed wooden boxes. The outer packaging is affixed with all-English DIN standard labels, indicating model, material, PN pressure, and heat number batch.

Service & Support

Pre-sales: a DIN standard technical team assists with selection, verifies DIN dimensional tolerances, material grades, PN pressure ratings, and groove parameters, and can cooperate to optimize pipeline network drawing schemes for European projects. In-sales: precision and appearance are verified according to DIN standards, overseas customers are supported in factory supervision and online inspection, the entire order process is traceable, and China-Europe logistics trajectories are synchronized in real time. After-sales: 18-month cross-border warranty is provided. During the warranty period, non-human-caused precision defects, process flaws, and material problems are eligible for free return, replacement, and reshipment, and cross-border logistics losses are borne. At the same time, DIN standard pipeline technical support is provided, answering questions on DIN fitting welding, assembly and commissioning, and European acceptance specifications. Long-term cooperative customers enjoy priority production scheduling and emergency after-sales channels.

FAQ

Can DIN standard crosses be used in projects within Germany and pass supervision acceptance?

The products are produced according to DIN2615 and DIN2605 German industrial standards. Dimensional precision, material, groove, and pressure-bearing parameters comply with German industrial specifications. We can cooperate to provide EN10204-3.1B material certificates and hydraulic test, UT/RT non-destructive testing reports, facilitating engineering supervision acceptance and cross-border customs clearance in German-speaking regions. Please contact us to confirm the specific project acceptance requirements.

Can DIN standard crosses and European standard crosses be directly interchanged?

The two have different outer diameter, tolerance, and wall thickness systems. German-standard crosses are produced according to the DIN system and cannot be freely interchanged with ordinary European-standard pipe fittings. Old German DIN projects usually require genuine DIN German-standard pipe fittings. It is recommended to provide the original pipeline drawings or old part dimensions before procurement, and we will assist in verifying compatibility.

Do you support small-batch trial orders or mixed-batch procurement?

We support small trial orders for test sales, and they can be mixed with the full range of German-standard pipe fittings in mixed batches. Regular in-stock standard specifications cover mainstream diameters from DN15–DN600, conventional pressure ratings of PN16/PN25/PN40, and materials such as St37 carbon steel. For specific minimum order quantities and mixed-batch solutions, please contact us for confirmation.

Can non-standard diameters or old part replacements be customized?

We can customize non-standard diameters from DN15–DN1200, non-conventional reducing ratios, thickened wall thicknesses, and extended straight pipe section special-shaped crosses according to German-standard drawings. We also support 1:1 replication of old European parts. Material options include St37/St52 carbon steel, 13CrMo44 alloy steel, and 1.4301/1.4571 stainless steel. The sample production cycle is 3–5 days. Please provide drawings or old part dimensions so that we can assist in confirmation.

What inspections are carried out before the products leave the factory?

Hydrostatic testing and UT/RT non-destructive testing can be carried out according to project requirements, and EN10204-3.1B material certificates can be issued. For large-diameter rolled and welded products, 100% RT/UT non-destructive testing can be performed. For specific inspection items and acceptance standards, please contact us for confirmation.
