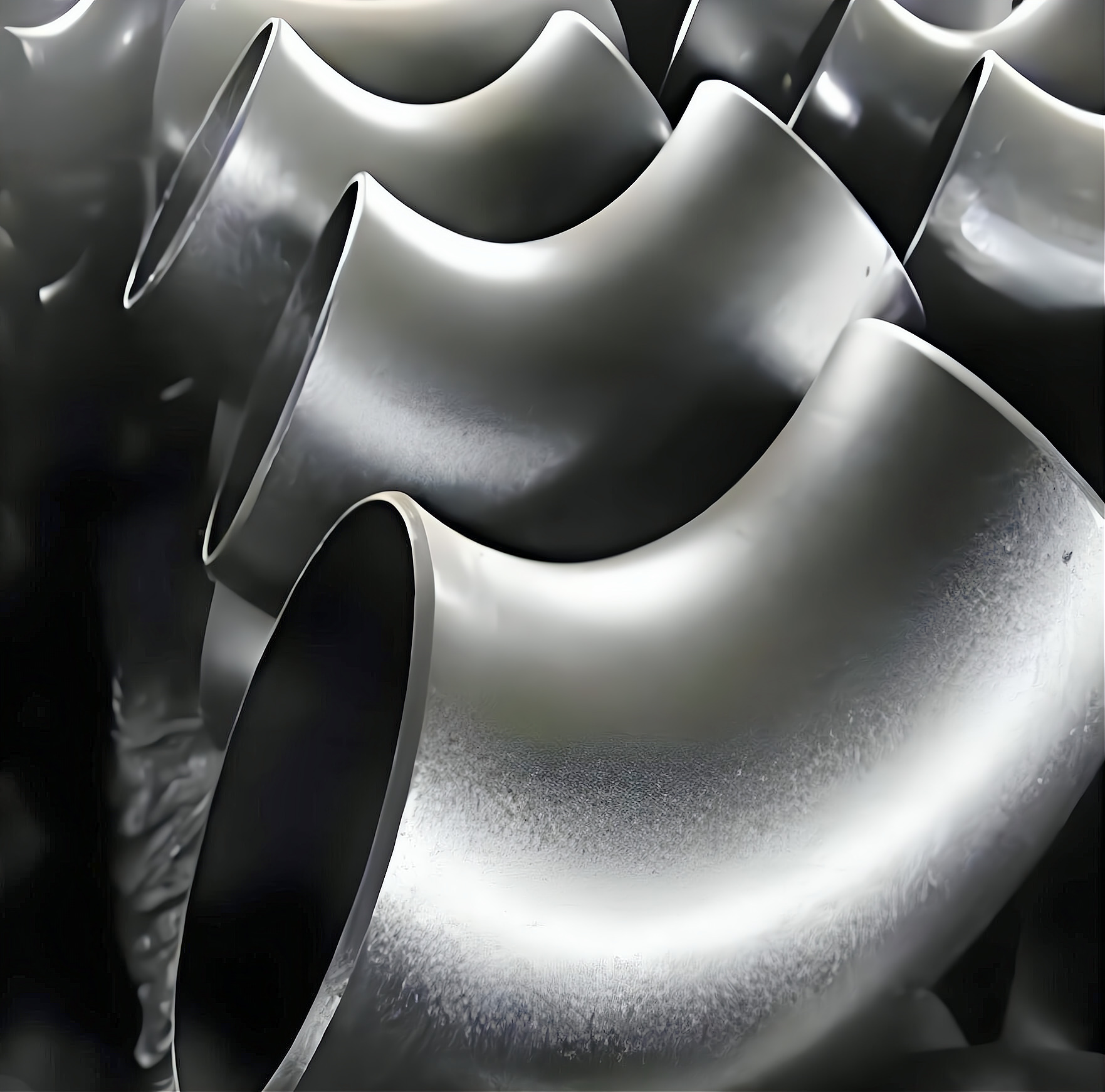

European standard elbows are specialized pressure-bearing pipe fittings for direction changes in industrial pressure pipelines under the EU system, specifically designed for EN standard high-temperature, high-pressure, low-temperature, corr
Inquiry
European standard elbows are produced according to the EU EN series pipe fitting standards. Pressure-bearing elbows primarily implement EN 10253-2, while non-pressure-bearing ones implement EN 10253-1, and they simultaneously comply with the PED 2014/68/EU Pressure Equipment Directive, compatible with the EN 10216 and EN 10217 European standard steel pipe systems. Production processes include seamless hot-pushing forming, steel plate rolling and welding, and forging forming. Materials cover European standard grades such as P235GH carbon steel, P355GH/P355NL low-alloy steel, 16Mo3 heat-resistant steel, 1.4301/1.4404 stainless steel, and duplex steel. Specifications adopt the DN metric nominal diameter system, with nominal diameters DN15-DN1200, conventional angles of 45°, 90°, and 180°, bending radii divided into two series: 1.5D long radius and 1.0D short radius, and pressure adaptation from PN16 to PN160. Dimensional tolerances, beveling, heat treatment, non-destructive testing, and mechanical properties are executed according to EU specifications. They can be supplied as complete sets with European standard tees, branch outlets, and flanges, and support the issuance of EN10204 3.1/3.2 material certificates.
| Product Name | EN Standard Elbow |
| Category | Elbow |
| All technical parameters of European standard elbows strictly align with authoritative EU EN industrial standards, with precise and compliant parameters, universal for global European standard projects, and internationally exempt from inspection. Core execution standards | EN 10253-1 non-pressure pipe fittings, EN 10253-2 pressure pipe fittings, PED 2014/68/EU EU Pressure Equipment Directive, compatible with the EN 10216/10217 European standard steel pipe system. Specification system: nominal diameter DN15-DN1200, conventional angles 45°, 90°, 180°; bending radius 1.5D long radius, 1.0D short radius dual series full coverage. Mainstream European standard materials: P235GH carbon steel, P355GH/P355NL low-alloy low-temperature steel, 16Mo3 heat-resistant alloy steel, 1.4301/1.4404 stainless steel, duplex steel. Pressure adaptation PN16 to PN160 full pressure ratings, covering low pressure, medium pressure, and high pressure full working conditions |
| Customization | Our factory possesses deep non-standard customization capability for the full range and full specifications of European standard elbows, strictly in accordance with EN EU official standards, undertaking various European standard drawings, special working conditions, and high-end engineering customization requirements. Supports customization in the full range of genuine European standard materials, covering P235GH carbon steel, P355NL low-temperature steel, 16Mo3 heat-resistant alloy steel, 1.4301/1.4404 stainless steel, duplex steel, and special alloys, precisely adapting to the EU's severe working conditions of high temperature, low temperature, high pressure, and corrosion resistance. Supports non-standard parameter customization, capable of producing 22.5°, 30°, 60° special-shaped angles, special long and short radii, non-standard thickened wall thickness, ultra-high PN pressure ratings, and large-diameter reducing European standard elbows. Supports high-end process customization, European standard dedicated heat treatment, precision bevel polishing, |
| MOQ | European standard elbows adopt the EU foreign trade loose and flexible minimum order mechanism, fully adapting to the diverse procurement needs of overseas customers for sample submission and inspection, engineering sporadic replenishment parts, pipeline network maintenance, small-batch stocking, and large-scale EPC whole-order centralized procurement, with no high minimum order threshold. Conventional P235GH carbon steel and 1.4301/1.4404 stainless steel general European standard in-stock specifications, MOQ as low as 1 piece, support |
| Lead Time | Our factory is equipped with a dedicated standardized production line for European standard pipe fittings and large-scale foreign trade standing inventory, deeply cultivating the EU cross-border supply chain, and can efficiently and stably deliver global European standard orders. DN15-DN400 conventional 90°/45° long-radius P235GH carbon steel and ordinary stainless steel European standard standard elbows have sufficient stock, and within 24-48 hours after order confirmation, refined export can be completed |
| Packaging | European standard elbows adopt EU export-grade refined standard packaging, specially designed for ocean shipping, European customs inspection, and overseas high-end engineering acceptance, eliminating bumps, bevel damage, oxidative rust, and transportation deformation throughout the entire process. Small-diameter precision European standard elbows are equipped with thickened plastic protective caps at both ends, sealing the pipe openings to protect the precision welding bevels, preventing the entry of impurities and bump damage, with the exterior multi-layer wrapped with waterproof stretch film and bubble film, achieving shockproof, moisture-proof, and scratch-proof protection. Small and medium-sized standard products are classified and packed into thickened export cartons, with clear European standard Chinese-English bilingual labels attached, marked with EN standard, material, DN specification, pressure rating, and production batch, eliminating mixed loading and confusion. Large-diameter, thick-wall, and high-pressure European standard elbows are wrapped overall with anti-rust stretch film plus rainproof cloth, and the bottom adopts EU |
| Reference Price | Inquiry |
European-standard elbows are produced according to the EN 10253 standard. For conventional P235GH carbon steel and 1.4301/1.4404 stainless steel general-purpose spot specifications, the MOQ is as low as 1 piece, suitable for sample submission for inspection, sporadic project replenishment parts, pipe network maintenance, small-batch stocking, and large EPC complete-project centralized procurement. DN15-DN400 conventional 90°/45° long-radius carbon steel and ordinary stainless steel standard elbows are in ample stock, and export packaging can be completed within 24-48 hours after order confirmation; for other materials, specifications, and customized products, please contact us to confirm the delivery time. Packaging is carried out according to EU export-grade standards. Small-diameter products are fitted with plastic end protectors to protect the bevels; small and medium specifications are packed into export cartons with bilingual Chinese-English labels; large-diameter products use rainproof tarpaulins plus fumigation-free solid wood pallets secured with steel straps; carbon steel is coated with anti-rust oil, and stainless steel is pickled and passivated and film-covered. Outer packaging can be customized with shipping marks, LOGO, and batch information. For specific prices, minimum order quantities, and delivery times, please contact us to confirm.
We provide full-cycle pre-sales, in-sales, and after-sales support for customers under the European-standard system. In pre-sales, we can assist with EN material selection, PN pressure rating matching, and PED standard adaptation consultation; during sales, foreign trade customer service follows up on the order, synchronizing production processes, heat treatment progress, non-destructive testing results, export packaging, and cross-border logistics information, and supports fine-tuning of order parameters, expedited production scheduling, and batch traceability inquiries. After-sales service is carried out according to international standard warranty service, and products with non-human-caused quality defects under compliant operating conditions support returns, exchanges, and replacements. We can assist customers with overseas project inspection submissions, third-party testing, and customs clearance, and provide European-standard pipeline welding processes, installation specifications, and anti-corrosion maintenance plans. Long-term customers can enjoy inventory reservation and priority production scheduling rights. For specific service terms, please contact us to confirm.
Pressure-bearing elbows mainly implement EN 10253-2, and non-pressure-bearing ones implement EN 10253-1, while also complying with the PED 2014/68/EU EU Pressure Equipment Directive and being compatible with the EN 10216 and EN 10217 European-standard steel pipe systems.
The European standard adopts the DN nominal diameter system, PN pressure ratings, European standard material grades, and an independent wall thickness series, which differ from the Chinese standard and American standard systems. For formal European standard engineering projects, it is recommended to use a full set of EN standard pipe fittings to avoid affecting acceptance due to inconsistent standards. For the specific feasibility of mixed use, please contact us for confirmation.
All products comply with the PED 2014/68/EU European Union pressure equipment directive, can issue a full set of compliance documents, and support EU third-party inspection. For the specific list of documents required for inspection, please contact us for confirmation.
Each order comes standard with an EN10204 3.1 material inspection certificate, and a 3.2 certificate can also be provided according to project requirements. For the specific certificate type and issuance cycle, please contact us for confirmation.
DN15-DN400 conventional 90°/45° long radius P235GH carbon steel and ordinary stainless steel European standard elbows are sufficiently stocked, with an MOQ as low as 1 piece, and export packaging completed within 24-48 hours after order confirmation. For the minimum order quantity and delivery time of other materials, specifications, and customized products, please contact us for confirmation.
Support for non-standard angles (22.5°, 30°, 60°, etc.), special long and short radii, non-standard thickened wall thickness, ultra-high PN pressure ratings, large-diameter reducing elbows, as well as process customization such as heat treatment, bevel polishing, sandblasting and rust removal, pickling and passivation, and anti-corrosion coatings. We can produce according to European standard drawings; you are welcome to provide drawings and parameters so that we can assist with confirmation.
Packaging is implemented according to EU export-grade standards, using fumigation-free solid wood pallets and bilingual Chinese-English labels, and can be customized with shipping marks, LOGO, and batch information, complying with EU and overseas countries' customs clearance regulations. For specific destination country customs clearance requirements, please contact us for confirmation.
