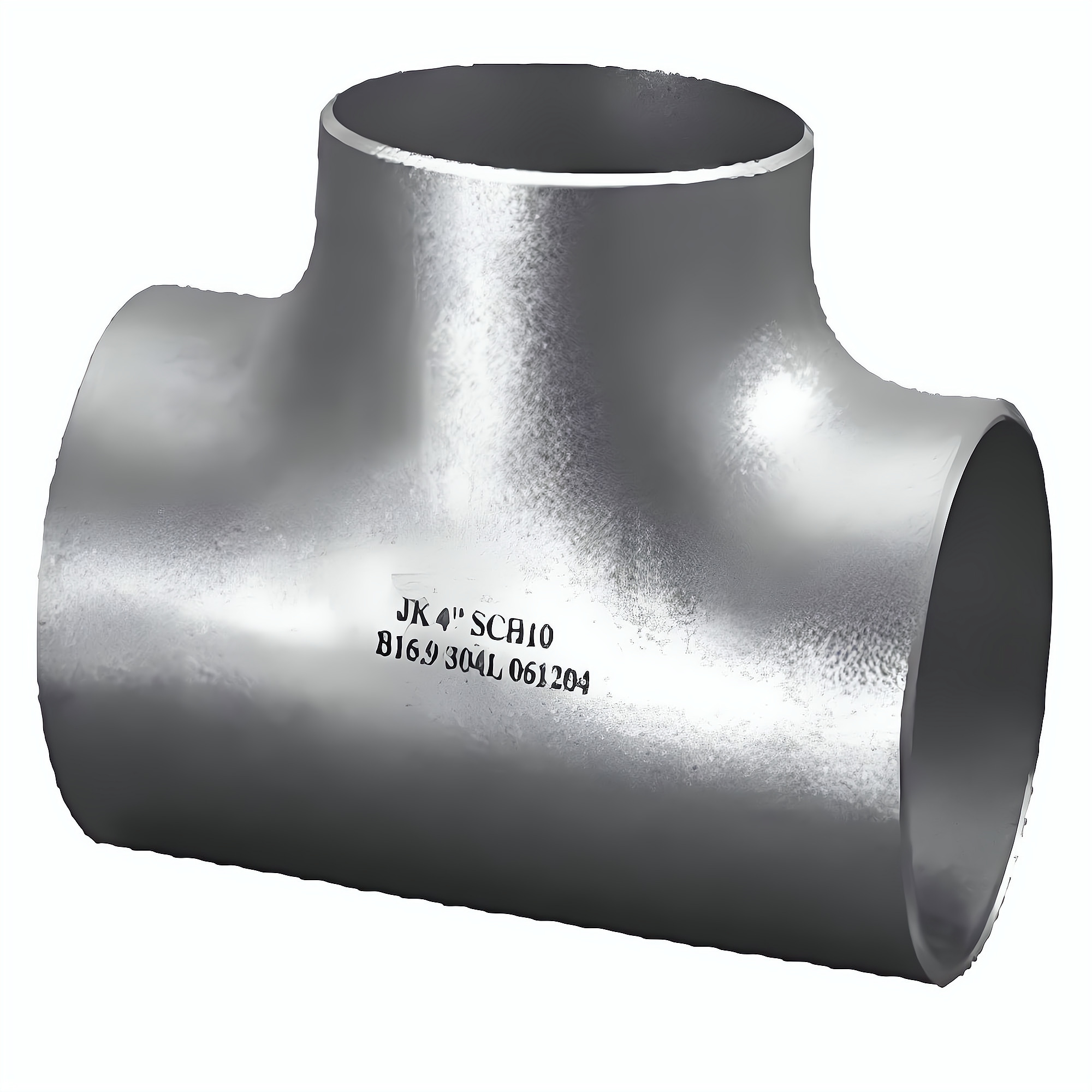

British Standard Tee

Name: British Standard Tee
SKU: f0246514-7663-44bd-8c68-ca70bf7456e9

British standard tees are core pressure pipe fittings in Commonwealth pipeline systems for achieving medium diversion, confluence, and branch connection, and are widely used in municipal infrastructure, industrial production, energy transmi

Reference Price

Inquiry

The core advantages of British Standard tees are full adaptation to the entire British Standard system, dual-grade compliance, corrosion resistance and weather resistance, high cost-effectiveness, and extremely strong versatility
They are must-have hot-selling products in the Commonwealth foreign trade market. The products strictly follow the dual standards of the long-established British Standard BS 1965 and the latest EU British Standard BS EN10253
Clear A/B grade distinction
Fully compliant with engineering acceptance standards in the UK and Commonwealth countries
zero compliance risk. They adopt a seamless hot-pressed integrated molding process

Quote View Details

Detailed Introduction

The British standard tee is used for the diversion, confluence, and branch connection of media in British pipeline systems, and is compatible with the traditional British imperial inch size system and the BSP British pipe thread system. Products are divided into two official grades: Type A pressure-reducing type and Type B full-pressure type, corresponding respectively to low-pressure civil working conditions and high-pressure industrial working conditions. Specifications range from DN15 to DN1200 (1/2 inch to 48 inch), wall thickness covers BS SCH standard wall thickness, STD, XS, and XXS thickened high-pressure specifications, and pressure ratings cover PN10 to PN160. Commonly used materials include Q235B, S275JR, S355JR carbon steel, 304, 316L stainless steel, and low-temperature alloy steel. The production process adopts seamless hot-pressed integrated forming and large-diameter rolled and welded processes, dimensions follow the imperial tolerance system, and it is suitable for butt welding with British seamless steel pipes and galvanized steel pipes. Before leaving the factory, it undergoes hydrostatic testing, non-destructive testing, and spectral testing, and a full set of English qualification documents can be issued, for engineering acceptance, customs clearance, and foreign trade bidding in Commonwealth countries.

At the same time, it implements the BS EN 10253-2/4 butt-welding pipe fitting standard and the BS 1965 high-pressure pipe fitting standard, with Type A/B grades clearly distinguished, matching the engineering acceptance requirements of the United Kingdom and Commonwealth countries
Specifications cover DN15-DN1200 (1/2 inch-48 inch), pressure ratings PN10-PN160, wall thickness covers the full series of STD, XS, XXS, and SCH10-SCH160, and supports non-standard thickened customization
Materials cover Q235B, S275JR, S355JR carbon steel, 304, 316L stainless steel, and low-temperature alloy steel; carbon steel is suitable for -20℃ to 450℃, and stainless steel is suitable for -60℃ to 600℃
The seamless hot-pressed integrated forming process is used for small and medium diameters, while large diameters adopt a rolled and welded process with 100% non-destructive testing, and before leaving the factory they undergo hydrostatic testing and spectral testing
Compatible with the British imperial inch size system and BSPP/BSPT British pipe threads, suitable for butt welding with British seamless steel pipes and galvanized steel pipes
A full set of English qualification documents can be issued, suitable for engineering acceptance, customs clearance, and foreign trade bidding in Commonwealth countries
The minimum order quantity for conventional in-stock standard specifications starts at 10 pieces, supporting small in-stock trial orders and mixed batches of the full product range

Product Name	British Standard Tee
Categories	Tees & Crosses
All key parameters of British Standard tees strictly benchmark against the official British Standard BS, with precise and compliant parameters, fully adapting to Commonwealth project auditing and acceptance. Specification parameters	Nominal diameter DN15-DN1200, corresponding to imperial 1/2''-48'', wall thickness covering STD, XS, XXS thickened specifications and the full SCH10-SCH160 series, supporting non-standard thickened customization. Grade parameters: divided into BS EN10253 Type A reducing type and Type B full-pressure type, adapting to low-pressure civil and high-pressure industrial pipelines. Pressure parameters: PN10-PN160 full pressure grades, covering municipal low-pressure to industrial high-pressure special equipment working conditions. Temperature range parameters: carbon steel suitable for -20℃ to 450℃, stainless steel suitable for -60℃ to 600℃, adapting to complex high and low temperature working conditions. Material parameters: British Standard S275JR/S355JR carbon steel, 304/316
Customization	The factory possesses full-dimensional exclusive customization capability for British Standard tees, deeply cultivating BS standard pipe fitting production for many years, proficient in the imperial size system and Commonwealth engineering specifications, and can undertake various non-standard, special working condition, and personalized foreign trade customization orders. Size customization can produce any non-standard nominal diameter from DN15-DN1200 as required, STD/XS/XXS special thickened wall thickness, eccentric reducing, 30°/60° special-shaped oblique tees, strictly following imperial size tolerance standards. Connection methods can customize British-style butt welding bevels, BSPP/BSPT imperial pipe threads, adapting to various British-style pipeline assembly needs. Material customization covers S275JR, S355JR carbon steel, 304/316L stainless steel, 15CrMo high-temperature alloy steel, adapting to humid corrosion
MOQ	Combining the diverse needs of British Standard foreign trade market trial orders, distribution, and engineering centralized procurement, British Standard tees set up a flexible tiered MOQ ordering mechanism, maximizing the reduction of cross-border procurement thresholds, adapting to various B2B customers. Conventional in-stock standard specifications, including DN15-DN600 conventional wall thickness S275JR carbon steel, 304 stainless steel butt welding tees, minimum order quantity 10 pieces, support
Lead Time	Relying on a complete British Standard dedicated production line and in-stock warehousing system, British Standard tees provide stable and efficient tiered delivery services, precisely matching the timeliness of foreign trade orders from Commonwealth countries. DN15-DN600 conventional British Standard in-stock tees, carbon steel and stainless steel mainstream A/B grade specifications have sufficient inventory, conventional orders complete precision quality inspection, standardized packaging, and loading for shipment within 3 working days
Packaging	British Standard tees adopt Commonwealth cross-border dedicated standardized moisture-proof and anti-corrosion packaging, specifically adapting to long-distance sea transportation, tropical humid climates, and multi-leg transit working conditions, comprehensively eliminating rust, scratches, deformation, and damage problems. Small DN15-DN100 threaded and butt welding small pieces, inner layer wrapped with anti-rust oil paper and waterproof PE film double-layer sealed anti-rust, isolating humid salt spray air, outer layer thickened hard cardboard box packaging, filled with high-density shock-absorbing foam inside the box, small pieces independently isolated to prevent friction and scratches. Medium DN125-DN300 specifications, using waterproof wrapping + fumigation-free solid wood pallet packaging, layered placement, strap fixation, dust-proof, moisture-proof, and anti-extrusion. Large diameter DN350 and above high-pressure tees, using customized solid wood closed wooden box reinforced packaging, internal slot fixation,
Reference Price	Inquiry

Applications

Municipal water supply and drainage pipe networks, residential gas transmission pipe networks, and commercial building HVAC pipelines in the United Kingdom, Australia, New Zealand, and Southeast Asia, Africa Commonwealth countries
British-style chemical plant process pipelines, thermal power plant steam transmission pipe networks, oil and gas gathering and transportation pipelines, and marine plumbing and heating pipelines
Equal-diameter flow splitting, reducing diameter transitions, and 45° lateral oblique tee branch connections in urban and rural old BS pipeline network renovation and reconstruction projects
Tropical high-temperature outdoor pipelines, coastal high-salt-spray corrosive pipeline networks, and underground embedded pipelines in humid and rainy regions
Threaded British Standard tee installation in small-diameter civil, fire protection, and plumbing pipelines
Routine stock procurement by cross-border foreign trade wholesalers specializing in British Standard pipe fittings, overseas hardware distributors, and building materials import and export traders

Procurement & Delivery

British Standard tees are packaged according to Commonwealth cross-border transportation requirements. For DN15-DN100 small pieces, the inner layer is wrapped with anti-rust oil paper and waterproof PE film, the outer layer uses thickened hard cardboard boxes, and the boxes are filled with high-density shock-absorbing foam, with small pieces individually separated. For DN125-DN300, waterproof wrapping plus fumigation-free solid wood pallets are used, with layered placement and strap fixation. For large-diameter high-pressure tees above DN350, custom solid wood closed wooden crates are used, with internal slot fixation, reinforced corner protectors, and shock-absorbing filling. All outer packaging is affixed with bilingual Chinese-English plus English exclusive labels, marking the BS standard, model, specification, material, batch, heat number, net weight, and gross weight. For conventional in-stock standard specifications DN15-DN600, the minimum order quantity starts at 10 pieces, and small in-stock trial orders and mixed batches are supported. DN15-DN600 conventional British Standard in-stock tees have sufficient inventory, and regular orders complete quality inspection, packaging, loading, and shipment within 3 working days. Please contact us to confirm inventory and delivery time for specific specifications.

Service & Support

Pre-sales provides British Standard selection consultation, BS parameter verification, working condition adaptability analysis, and British-style drawing review. During sales, we follow up on production progress, quality inspection data, and shipping logistics information, support in-factory supervision, batch sampling inspection, and pre-shipment inspection, and the entire order is traceable. After-sales provides an 18-month warranty period. During the warranty period, for non-human-caused quality, process, and performance defects, we provide free returns and exchanges, replacement products, and bear cross-border logistics loss costs. We provide lifetime free technical support. For British-style pipeline welding, threaded assembly, and working condition adaptability issues, the technical team provides 24-hour online Q&A. Long-term cooperative agents and large engineering customers enjoy exclusive order ledgers, priority production scheduling, and an emergency after-sales green channel. In terms of customization, we can undertake non-standard nominal diameters, specially thickened wall thicknesses, eccentric reducers, 30°/60° special-shaped oblique tees, British-style butt welding bevels, BSPP/BSPT British pipe threads, material customization, and surface treatments such as sandblasting and rust removal, hot-dip galvanizing, pickling and passivation, and epoxy anti-corrosion coatings. We can make samples according to customer drawings, samples, or project parameters, and support laser marking, exclusive OEM branding, and custom packaging.

FAQ

Do British Standard tees comply with the British BS standard, and can they be used in Commonwealth projects?

The products implement the BS EN 10253-2/4 butt welding pipe fittings standard and the BS 1965 high-pressure pipe fittings standard, and are divided into two grades: Type A reduced-pressure type and Type B full-pressure type. Dimensions, tolerances, and pressure-bearing capacity are produced according to the British Standard system, and a complete set of English qualification documents can be issued for project acceptance and customs clearance in Commonwealth countries. Please contact us to confirm the acceptance requirements for specific projects.

Do you support custom imperial threaded tees?

We support custom BSPP/BSPT imperial threaded tees, suitable for British-style plumbing, fire protection, and civil piping. For thread specifications and quantities, please provide drawings or samples, and we will assist with confirmation.

Can small batches be purchased as mixed batches?

We support small trial orders from stock. For regular stock standard specifications, the minimum order quantity starts at 10 pieces, and mixed batches can be combined with British standard elbows, flanges, reducers, and other categories. For specific mixed batch rules, please contact us for confirmation.

What materials and pressure ratings are available for British standard tees?

Commonly used materials include Q235B, S275JR, S355JR carbon steel, 304, 316L stainless steel, and low-temperature alloy steel, with pressure ratings covering PN10 to PN160. Different materials have different temperature and working condition adaptation ranges. For selection, please contact us for confirmation.

What process is used for large-diameter British standard tees?

Small and medium diameters use a seamless hot-pressed integrated forming process, while large diameters use a rolled and welded process with 100% non-destructive testing. Before leaving the factory, they undergo hydrostatic testing and spectral testing, and English inspection documents can be issued.

What are the sampling and delivery lead times for custom orders?

The custom sampling lead time is 3-5 days, and the bulk delivery lead time is determined according to specifications and quantity. Regular in-stock orders complete quality inspection, packaging, and loading for shipment within 3 working days. For specific delivery dates, please contact us for confirmation.
