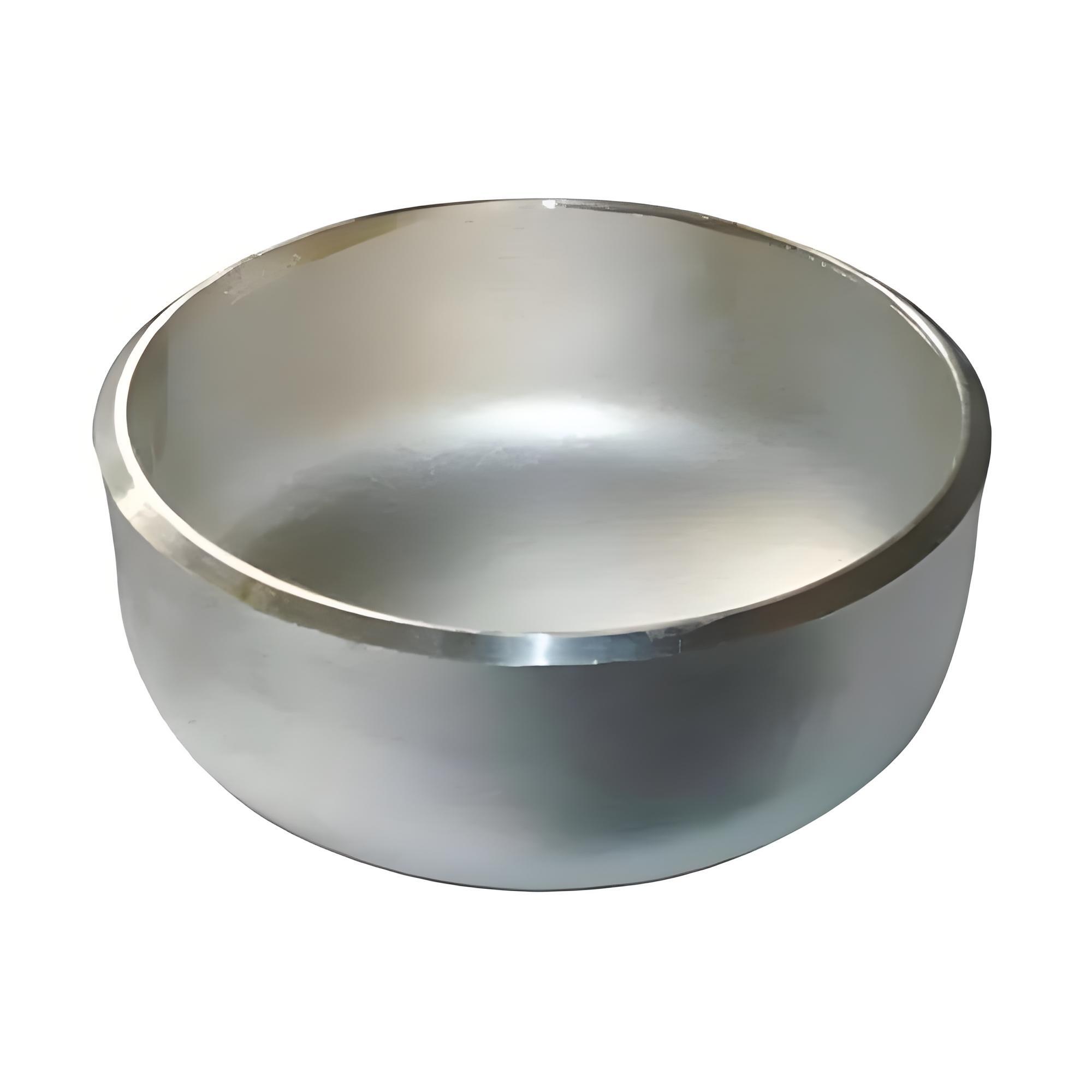

Stainless Steel Pipe Cap

Name: Stainless Steel Pipe Cap
SKU: f1dbb80e-c241-46c5-b236-cb3434e4ba51

Stainless steel pipe caps are the core terminal sealing fittings of anti-corrosion clean pipeline systems, mainly used for permanent end sealing, spare pipe opening closure, clean pipe network partition isolation, and temporary sealing for

Reference Price

Inquiry

The core advantages of stainless steel pipe caps are super corrosion resistance, hygienic cleanliness, high-temperature resistance and oxidation resistance, high-precision smooth finish, lifelong rust-free, and long maintenance-free service
the material is pure, the metallographic structure is dense, and there are no impurities or pores
after forming, the surface is flat and smooth, and the welds are fine
meeting food and pharmaceutical hygiene-grade standards. It has extremely strong resistance to acids and alkalis, seawater salt spray, and humid oxidation
completely eliminating the problems of ordinary carbon steel pipe fittings such as rust and corrosion, medium contamination, and leakage failure. It has excellent high-temperature resistance and thermal shock resistance

Quote View Details

Detailed Introduction

The stainless steel pipe caps we produce are used for terminal sealing of industrial piping systems, and common names include stainless steel heads, pipe plugs, and end caps. The product materials cover 304, 304L, 316, 316L, 321, 310S, as well as 2205 and 2507 duplex stainless steel, and can correspond to standards such as GB/T12459, ASME B16.9, DIN2617, EN10253, JIS B2312, and GOST17379. Specifications range from DN15 to DN2000, 1/2″ to 48″, the wall thickness systems include SCH10S, SCH40S, SCH80S, and SCH160S, pressure ratings cover PN10–PN100, Class150–1500, and 5K–40K, and the operating temperature range is -196℃ to 700℃. Forming methods include seamless hot pressing, steel plate rolled and welded, and precision forging. Before purchasing, it is recommended to confirm the medium type, cleanliness grade, temperature and pressure, required standards, and material, and we will assist in matching specifications and providing a quotation accordingly.

Materials cover 304, 304L, 316, 316L, 321, 310S, as well as 2205 and 2507 duplex steel, and the corresponding grade can be selected according to medium corrosiveness and temperature conditions
It simultaneously aligns with six sets of standards: GB/T12459, ASME B16.9, DIN2617, EN10253, JIS B2312, and GOST17379, making it convenient for unified procurement in multinational projects
Specification range DN15–DN2000, 1/2″–48″, wall thickness covers SCH10S, SCH40S, SCH80S, and SCH160S, pressure ratings PN10–PN100, Class150–1500, and 5K–40K
Operating temperature range -196℃ to 700℃, which can cover pipeline sealing needs for ultra-low temperature, normal temperature, and high temperature
Supports structural customization such as non-standard diameters, non-standard wall thicknesses, special arc heights, extended straight edges, eccentric special shapes, and reducing seals, as well as process upgrades such as mirror fine polishing, sanitary-grade polishing, pickling and passivation, non-magnetic treatment, and precision beveling
For conventional 304/304L material, DN15–DN600 mainstream diameters, SCH40S wall thickness, and general international standard specifications, the MOQ is as low as 1 piece, and mixed batches of multiple materials and multiple specifications are supported
Export packaging provides graded protection according to specifications: small diameters are individually wrapped in bubble film with dust-proof protective caps, medium diameters are padded with impact-resistant soft cushions, and large diameters use fumigated solid wood pallets reinforced with steel straps, accompanied by Chinese-English certificates of conformity, material reports, and cleanliness inspection documents

Product Name	Stainless Steel Cap
Product Category	Cap
This series of stainless steel pipe caps has parameters fully benchmarked against international high-end pipe fitting standards, suitable for global clean, anti-corrosion, and high-temperature pipeline engineering design and acceptance requirements. Executive standards	GB/T12459, ASME B16.9, DIN2617, EN10253, JIS B2312, GOST17379. Mainstream materials: 304, 304L, 316, 316L, 321, 310S, 2205 duplex stainless steel. Specification range: DN15–DN2000, 1/2″–48″ imperial inch diameter; stainless steel dedicated wall thickness: SCH10S, SCH40S, SCH80S, SCH160S. Pressure rating: PN10–PN100, Class150–1500, 5K–40K. Working temperature range: -196℃ to 700℃, covering ultra-low temperature, normal temperature, and ultra-high temperature full working conditions. Forming techno
Customization	Our factory possesses full-dimensional high-end customization and working condition upgrade capabilities for stainless steel pipe caps, and can undertake various global clean, anti-corrosion, high-temperature, and special-shaped high-precision difficult customization orders. Supports non-standard diameter, non-standard wall thickness, special arc height, extended straight edge, eccentric special-shaped, reducing plugging and other non-standard structural customization, suitable for old high-end technical transformation, multi-standard mixed clean pipeline networks, and special equipment special-shaped port plugging. Supports high-end material customization, 316L corrosion-resistant, 321 anti-sensitization, 310S high-temperature resistant, 2205 duplex steel high salt spray special materials produced on demand. Supports high-end process upgrades, including mirror fine polishing, sanitary-grade sterile polishing, pickling and passivation strengthening, non-magnetic treatment, precision bevel fine machining, special thread customization. Can perform laser marking, engineering numbering engraving, custom high-end as needed
MOQ	Our factory's stainless steel pipe caps adopt a flexible ultra-low-threshold foreign trade minimum order mode, suitable for various procurement scenarios such as high-end engineering replacement parts, clean project samples, small-batch trial orders, and full-container bulk shipments. Market conventional 304/304L materials, DN15–DN600 mainstream diameters, SCH40S standard wall thickness, general international standard specifications, MOQ as low as 1 piece, no minimum order limit
Lead Time	The factory has established a dedicated dust-free production workshop and constant-temperature finished product warehouse for high-end stainless steel pipe fittings, with massive regular stock of 304, 304L, 316L in stock, rapidly responding to global clean, anti-corrosion, and high-end engineering project delivery needs. Conventional international standards, general wall thickness, and mainstream material stainless steel pipe caps are all in stock, with clean re-inspection, sorting, and high- completed within 24 hours of order confirmation
Packaging	Stainless steel pipe caps adopt high-end export clean protective packaging, fully preventing scratches, oxidation, stains, and collision deformation throughout the process, ensuring high-precision appearance and cleanliness level. Small DN15–DN100 precision pipe fittings are individually wrapped in dust-proof protective film, fully wrapped in independent bubble film, with food-grade dust-proof plastic protective caps installed at ports, preventing dust, fingerprints, and oxidation spots, individually classified and packed into hard cardboard boxes. Medium DN125–DN600 pipe caps are overall wrapped with protective film and waterproof anti-rust woven fabric, with custom anti-collision soft pads installed on curved surfaces, preventing curved surface scratches and deformation damage. Large DN800–DN2000 large-diameter heads are fixed with fumigated solid wood pallets, multi-point steel belt flexible reinforcement, double-layer waterproof sealed wrapping, pallets comply with international quarantine standards, can directly cross-border customs clearance
Reference Price	Inquiry

Applications

End plugging and spare pipe opening sealing for fine chemicals, acid-base refining, and corrosive fluid transportation pipelines
Clean-grade plugging for food processing, biopharmaceuticals, pure water purification, and medical device pipelines, requiring surfaces with no dead angles and easy to clean
Pipe ends in ship piping, offshore platforms, and seawater desalination projects that need to resist salt spray and chloride ion corrosion
High- and low-temperature sealing and plugging for new energy process pipelines such as photovoltaics, lithium batteries, and hydrogen energy
Zoning partitions in the renovation of clean pipeline networks for high-end water supply, direct drinking water, and sewage treatment
High-temperature steam pipelines, outdoor high-humidity open-air pipeline networks, and high- and low-temperature alternating laboratory pipelines
Project bulk supporting procurement for chemical EPC general contractors, clean engineering contractors, ship and maritime enterprises, and new energy equipment manufacturers
Mixed batch procurement and replenishment for cross-border B2B traders, international building materials wholesalers, and clean pipeline system integrators

Procurement & Delivery

We adopt a flexible minimum order model. For conventional 304/304L material, DN15–DN600 mainstream diameters, SCH40S wall thickness, and general international standard specifications, the MOQ is as low as 1 piece, supporting mixed batches of multiple materials and multiple specifications, and we also undertake full-container bulk shipments. The factory has a dedicated dust-free production workshop for stainless steel pipe fittings and a constant-temperature finished goods warehouse, with regular stock of 304, 304L, and 316L conventional items. After order confirmation, clean re-inspection, sorting, and packaging are completed within 24 hours. Export packaging is protected by grade according to specifications: small pipe fittings are individually wrapped in dust-proof protective film and bubble film, with food-grade dust-proof protective caps added to the ends; medium-sized pipe caps are covered with protective film and waterproof, rust-proof woven fabric, with custom anti-collision soft pads added to the curved surfaces; large DN800–DN2000 heads are secured on fumigated solid wood pallets, flexibly reinforced with multi-point steel straps, and wrapped in double-layer waterproof sealing, with pallets meeting international quarantine standards. All products are stacked by category according to material, standard, specification, and polishing grade, individually labeled for traceability, and accompanied by Chinese-English certificates of conformity, material reports, and clean inspection documents. Please contact us to confirm the specific delivery time and logistics plan.

Service & Support

Before sales, we provide free consultation on material selection, anti-corrosion grade matching, hygiene standard adaptation, and high- and low-temperature working condition solutions, and assist in matching stainless steel materials and processes according to medium corrosiveness, cleanliness grade, temperature, and pressure. During sales, we synchronize production, polishing, quality inspection, packaging, and logistics progress in real time, and provide a full set of Chinese-English clean, anti-corrosion, and customs clearance qualification documents free of charge. After sales, we uniformly provide an 18-month international warranty period. During the warranty period, for material corrosion, leakage, deformation, polishing defects, or process defects not caused by human installation errors, we unconditionally replace and reship free of charge and bear cross-border logistics losses. We are equipped with a 24-hour professional technical team that can provide clean pipeline welding guidance, anti-corrosion working condition optimization, and remote troubleshooting services. If you need to customize non-standard structures or special materials, you are welcome to contact us to confirm the specific plan.

FAQ

What is the difference between 304 and 316L stainless steel pipe caps?

304 is suitable for ordinary anti-corrosion, water purification, and room-temperature clean working conditions, with high cost-effectiveness; 316L contains molybdenum, providing stronger resistance to acids, alkalis, and seawater salt spray, making it suitable for highly corrosive scenarios such as chemical engineering and seawater desalination. For specific selection, please contact us to confirm based on the medium and working conditions.

Does the product meet hygienic-grade standards?

The factory pickled and passivated, mirror-polished styles have no dead corners, no impurities, and are easy to clean, meeting the GMP clean-use standards for food and pharmaceutical, and pure water equipment. If you need a specific hygiene grade or inspection documents, please contact us to confirm.

Do you support small-order customization and mixed batches?

Standard regular parts ship from 1 piece, support mixed batches of multiple materials and multiple specifications, and high-end special non-standard parts can be individually customized one-on-one. For the specific customization scope and delivery time, please contact us to confirm.

Will it rust?

Genuine stainless steel material will not rust under normal working conditions. Actual corrosion resistance performance is related to the medium, temperature, concentration, and material selection. You are welcome to provide working condition information, and we will assist in confirming the suitable grade.

What standards can they be produced according to?

We can produce according to standards such as GB/T12459, ASME B16.9, DIN2617, EN10253, JIS B2312, GOST17379, etc. If the project adopts other standards or requires a mix of multiple standards, please contact us for confirmation.

How are the packaging and transportation of large-diameter pipe caps handled?

DN800–DN2000 large-diameter heads are secured with fumigated solid wood pallets, reinforced flexibly with multi-point steel straps, and wrapped with double-layer waterproof sealing. The pallets comply with international quarantine standards and can be directly cleared through cross-border customs. For specific transportation solutions, please contact us for confirmation.
